Ford
>>
1989
>>
E 250 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

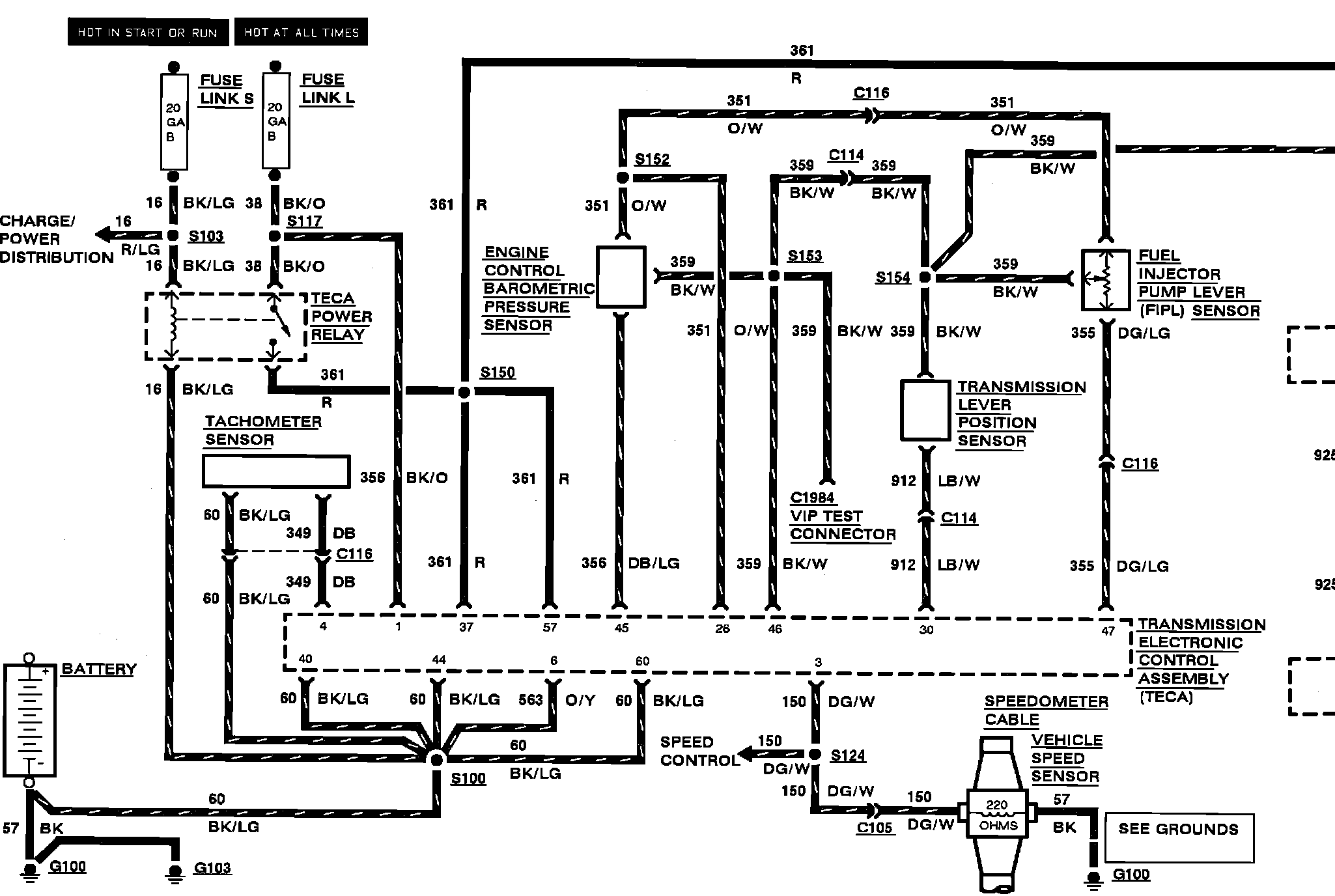

1x�-Transmission Electronic Control System:
