Home
>>
Ford
>>
1989
>>
E 350 Van V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>

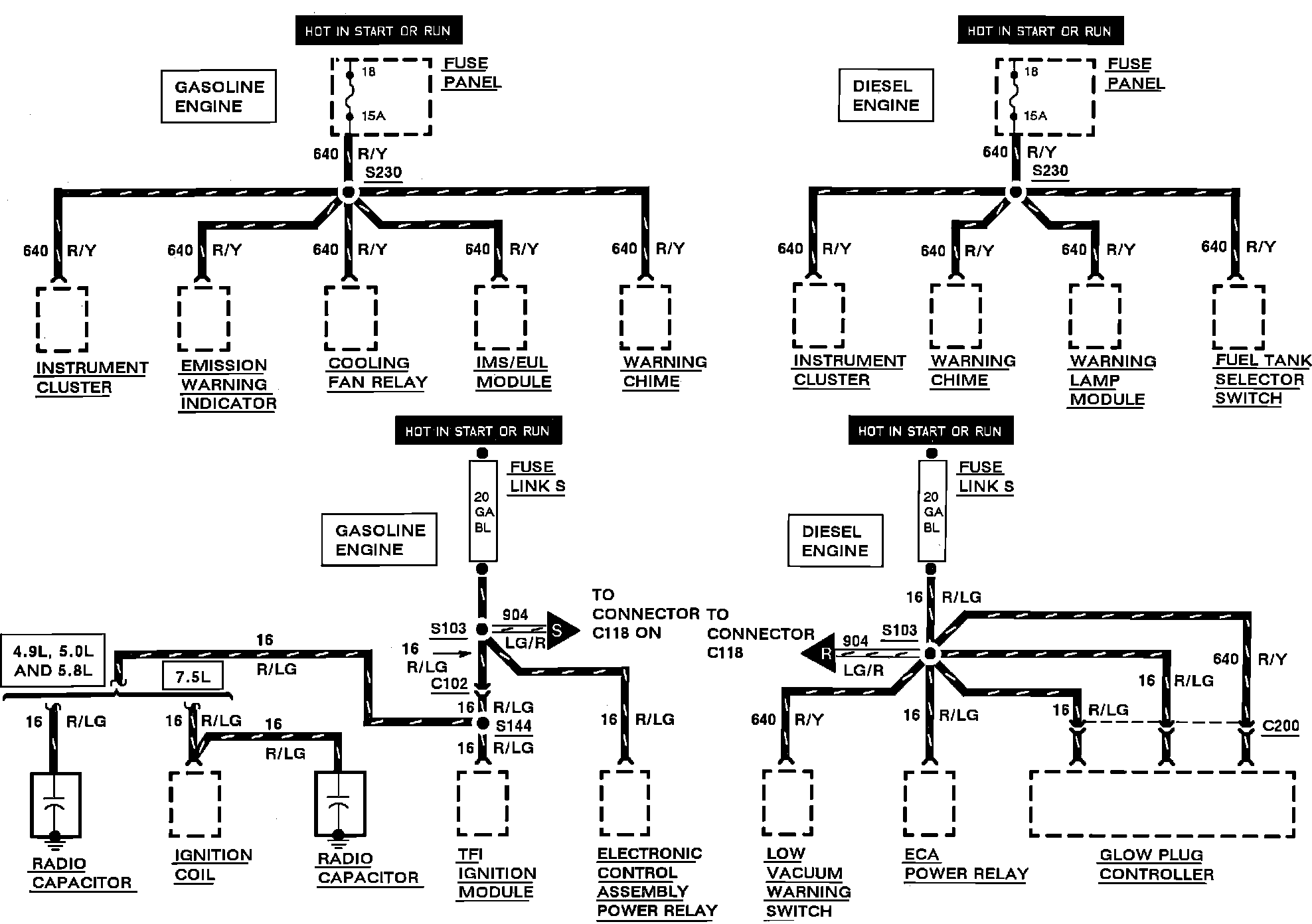

Fuse 18 & Fuse Links
Fuse 18 & Fuse Links
Fuse 18 & Fuse Link S:
