Trailer Connector
>>
Camper & Trailer Towing Wiring Circuit
Camper & Trailer Towing Wiring Circuit

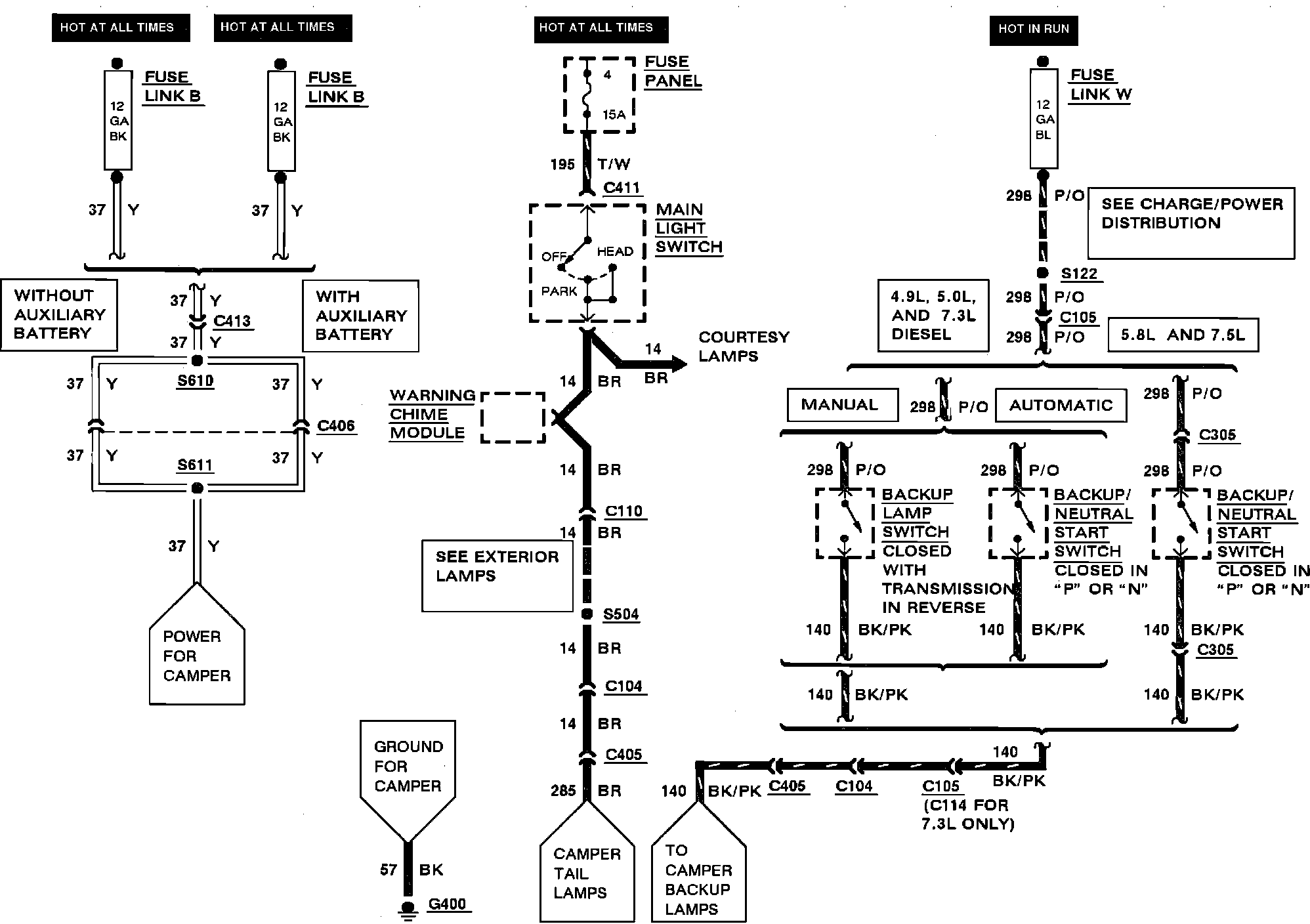

Camper Adapter:
Camper Adapter:
