Home >> Ford >> 1989 >> E 350 Van V8-351 5.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

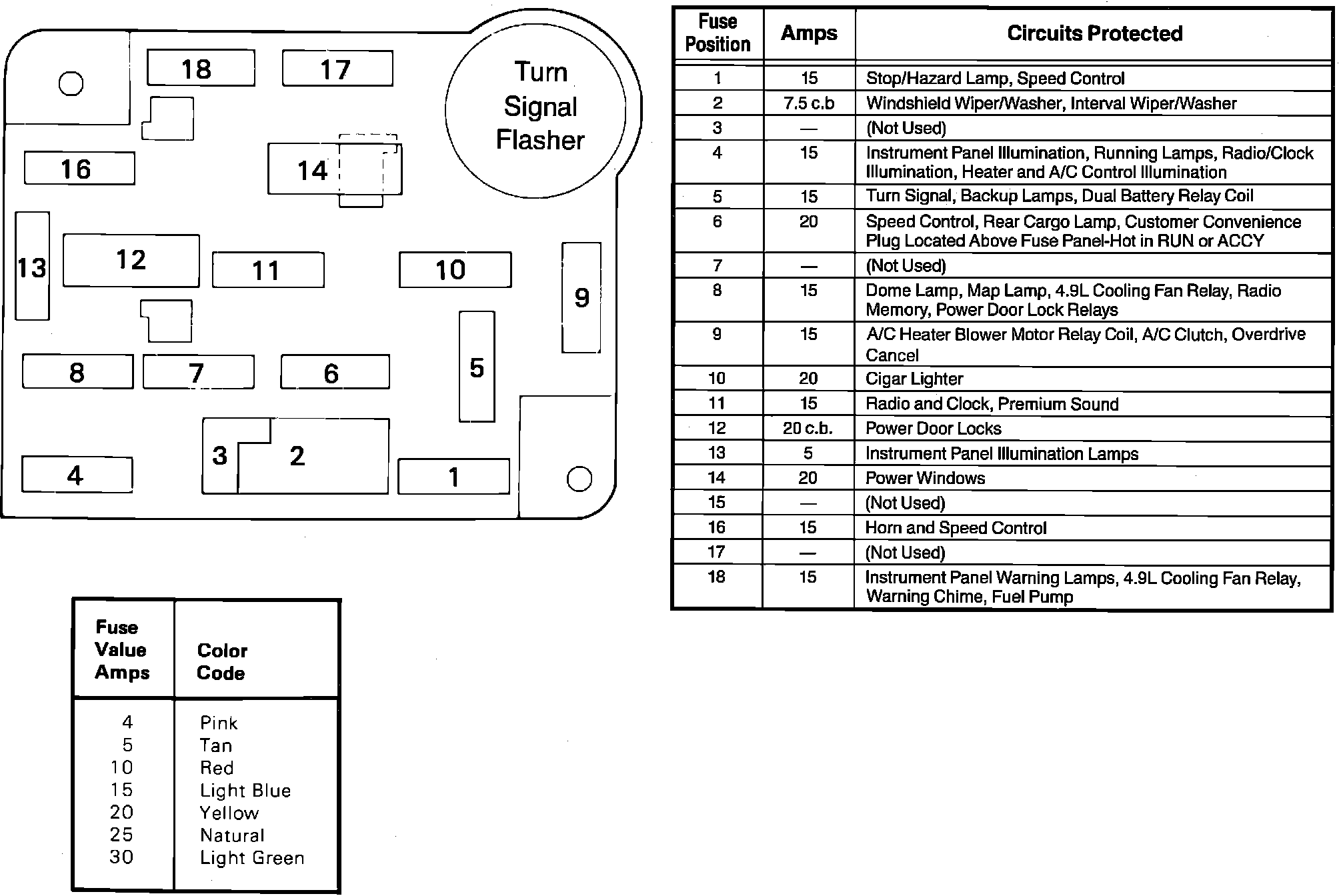

Fuse Block: Locations

Fuse Panel Details:
