Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
E 350 Van V8-351 5.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
DH - Throttle Position (TP) Sensor
>>
DH95 - DH96
DH95 - DH96

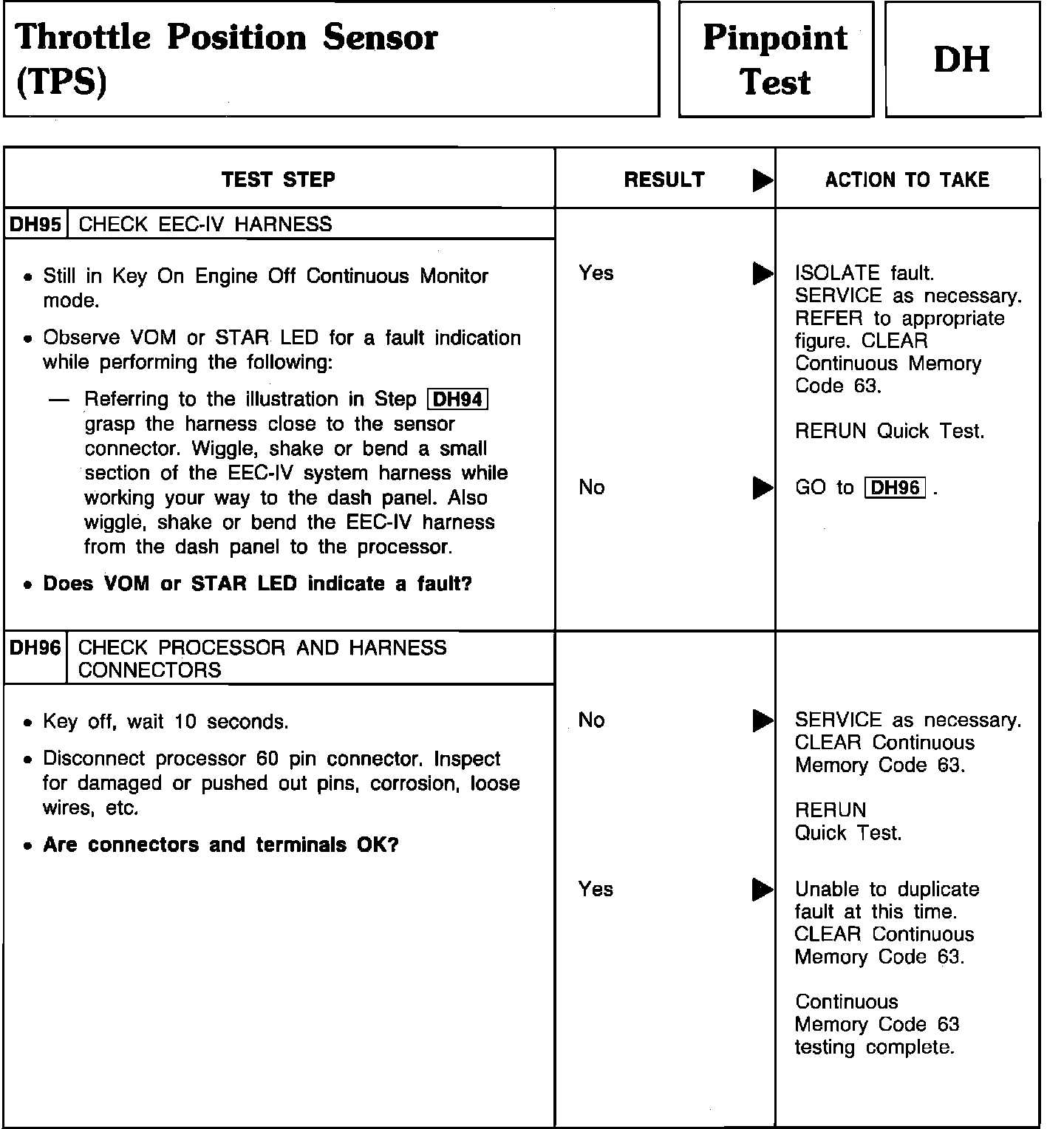

Pinpoint Test DH95 & DH96 - Throttle Position Sensor (TPS):
