FD - Brake On/Off (BOO) Switch
>>
FD12 - FD14
FD12 - FD14

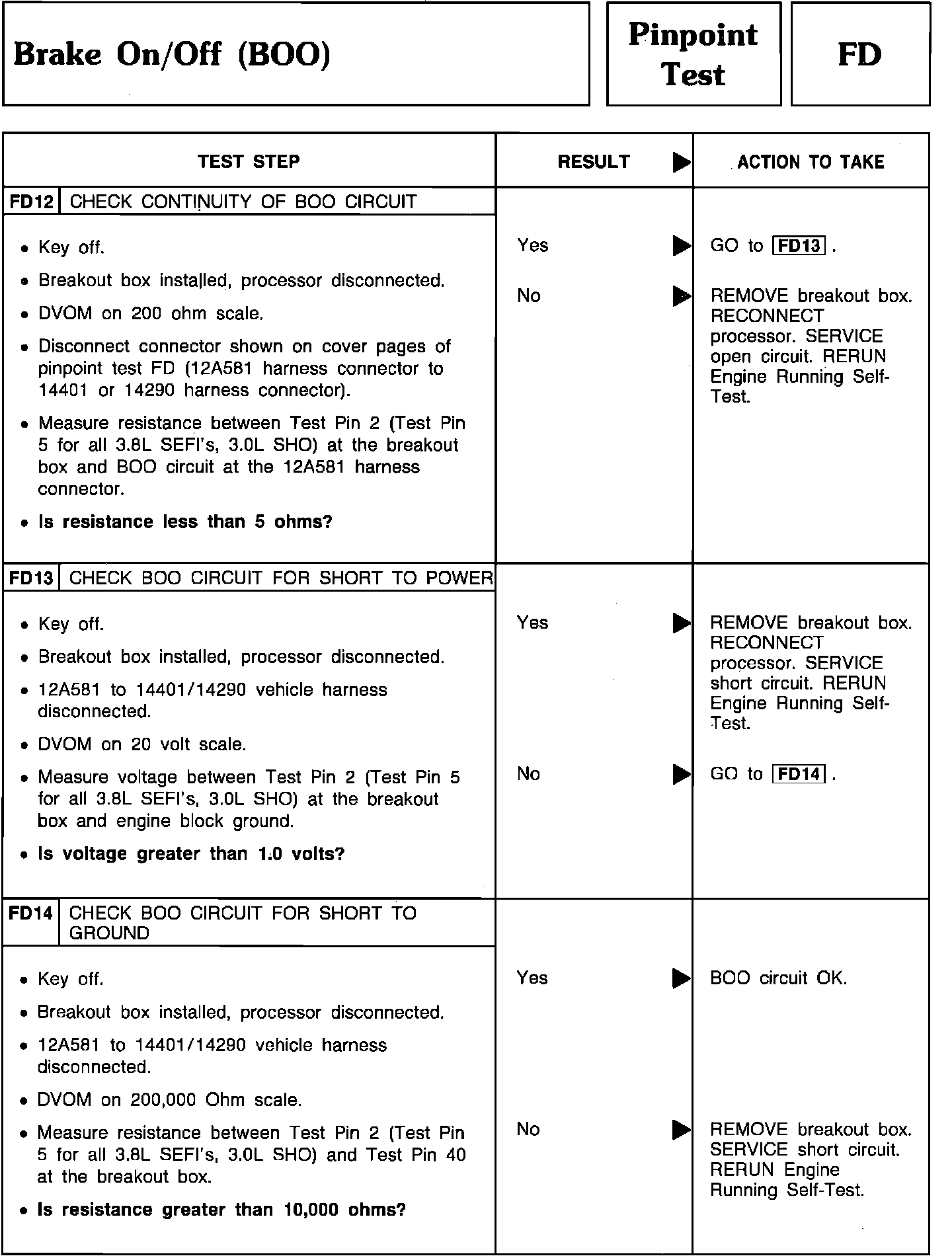

Pinpoint Test FD12 thru FD14 - Brake On/Off (BOO):
