TC - Transmission E4OD
>>

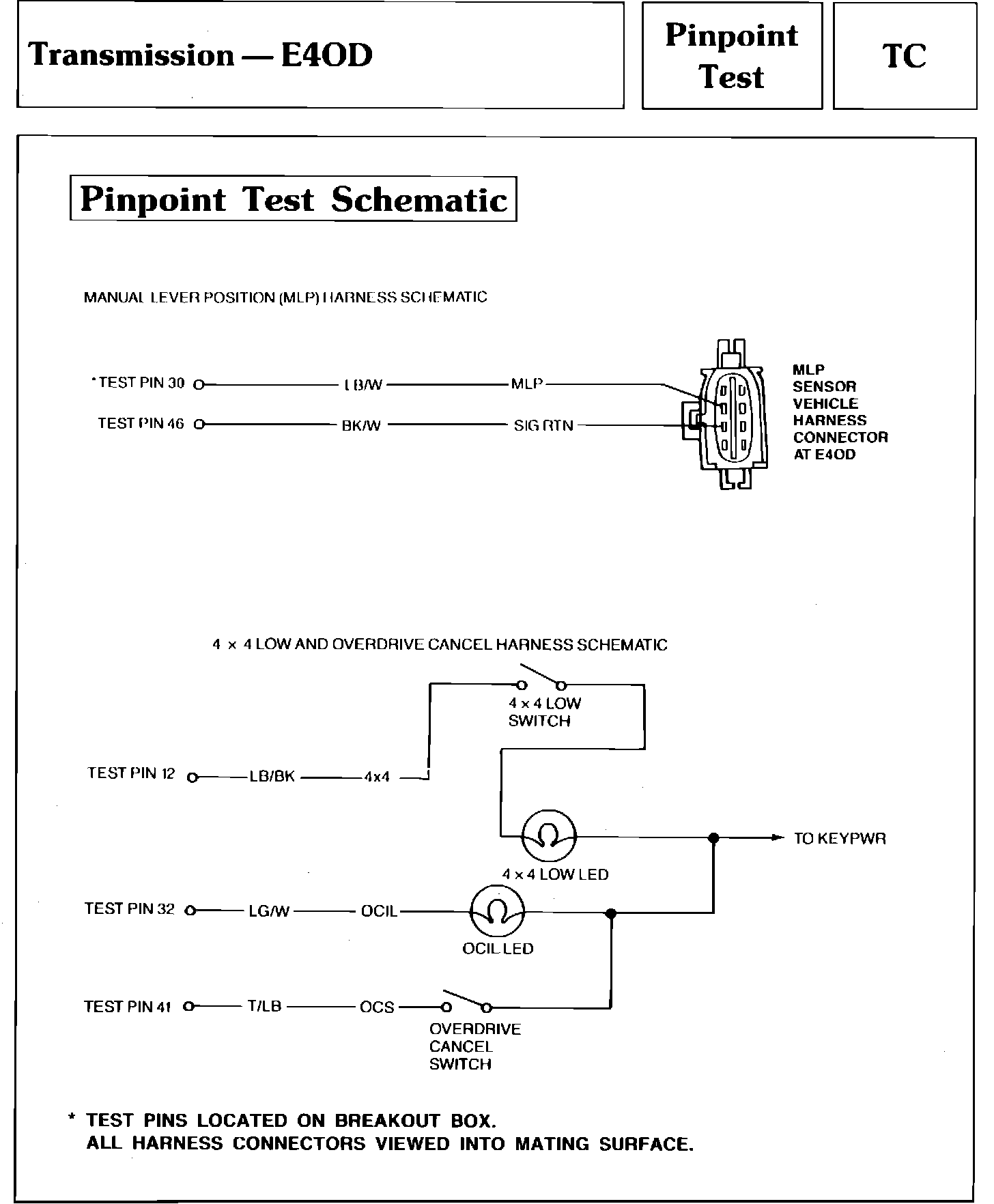

TC - Test Schematic
TC - Test Schematic

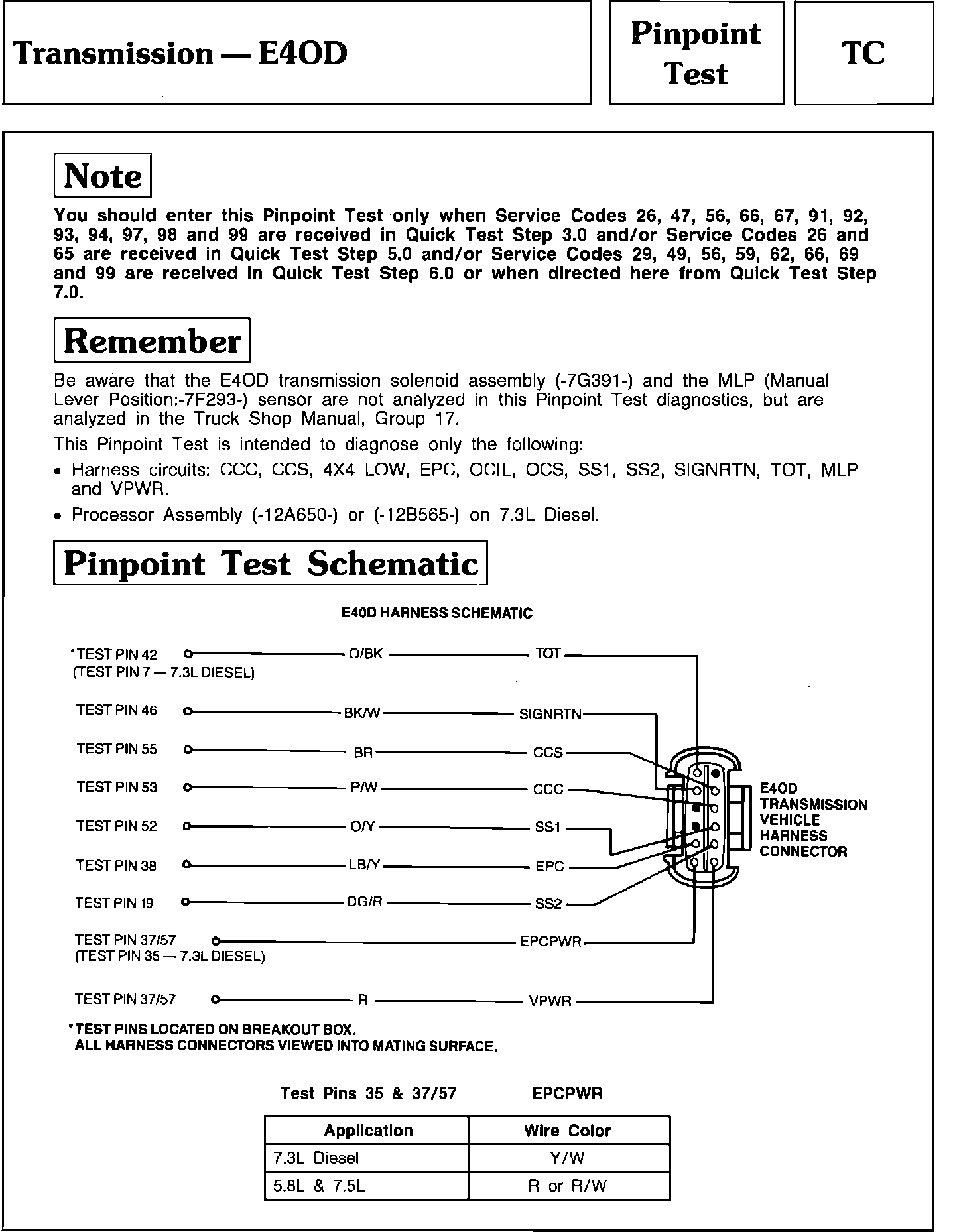

Pinpoint Test TC - Transmission E4OD:

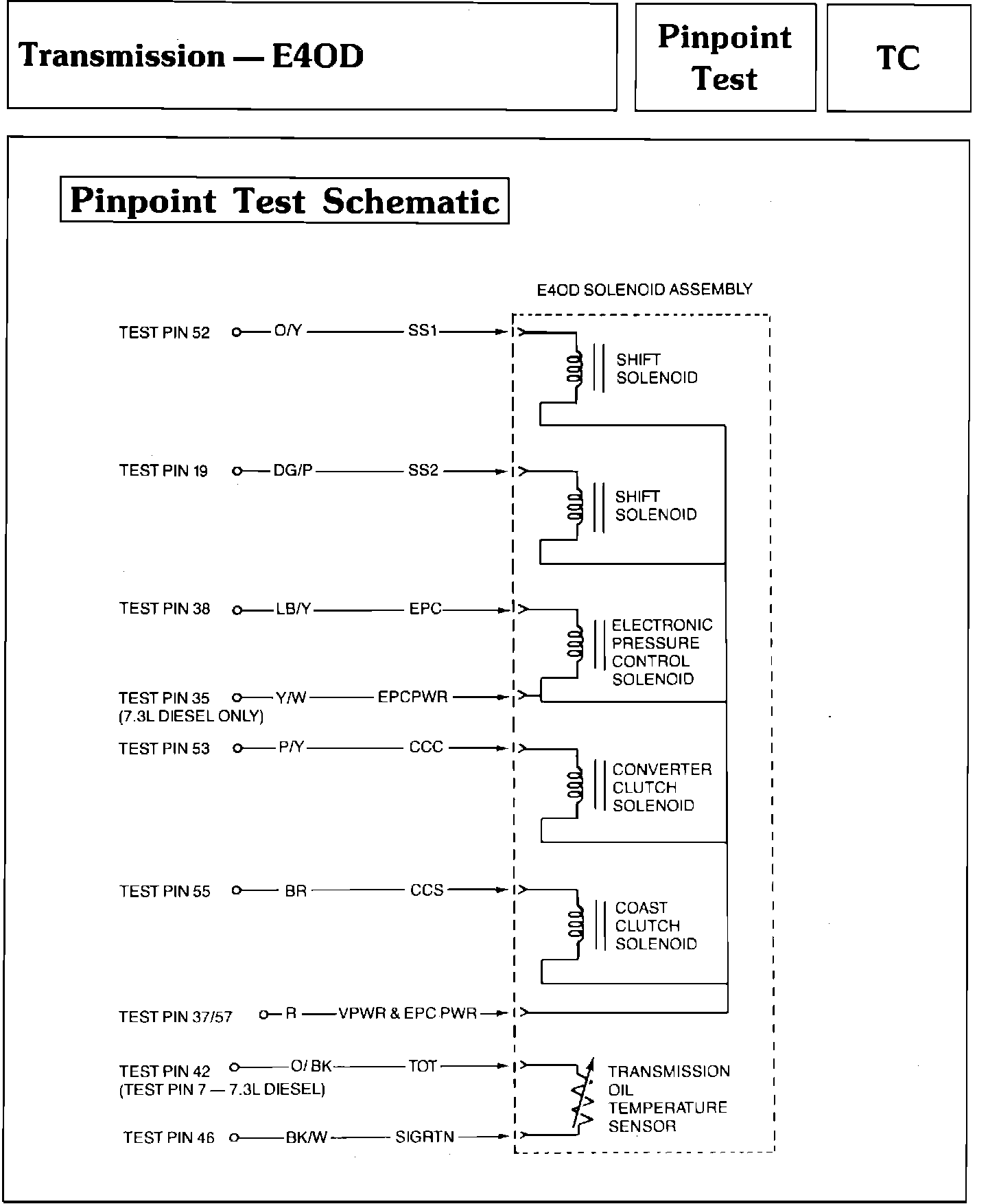

Pinpoint Test TC - Transmission E4OD:
Pinpoint Test TC - Transmission E4OD:
