C6

TROUBLESHOOTING

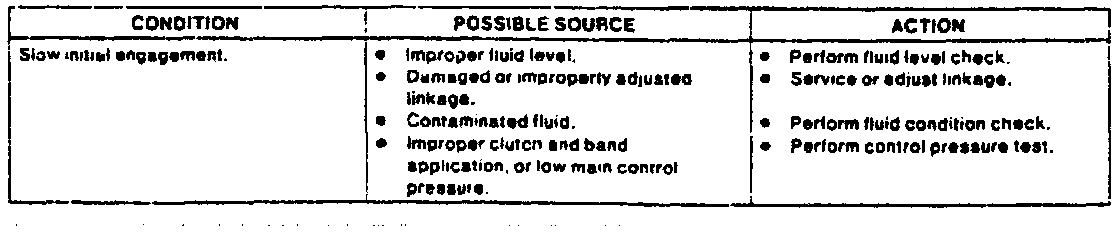

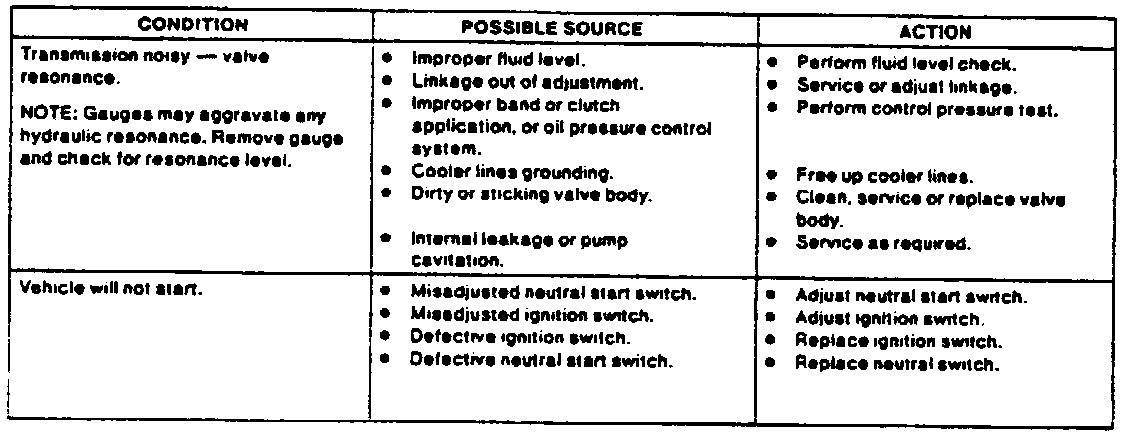

Troubleshooting Transmission By Condition Chart, (Part 1 Of 9):

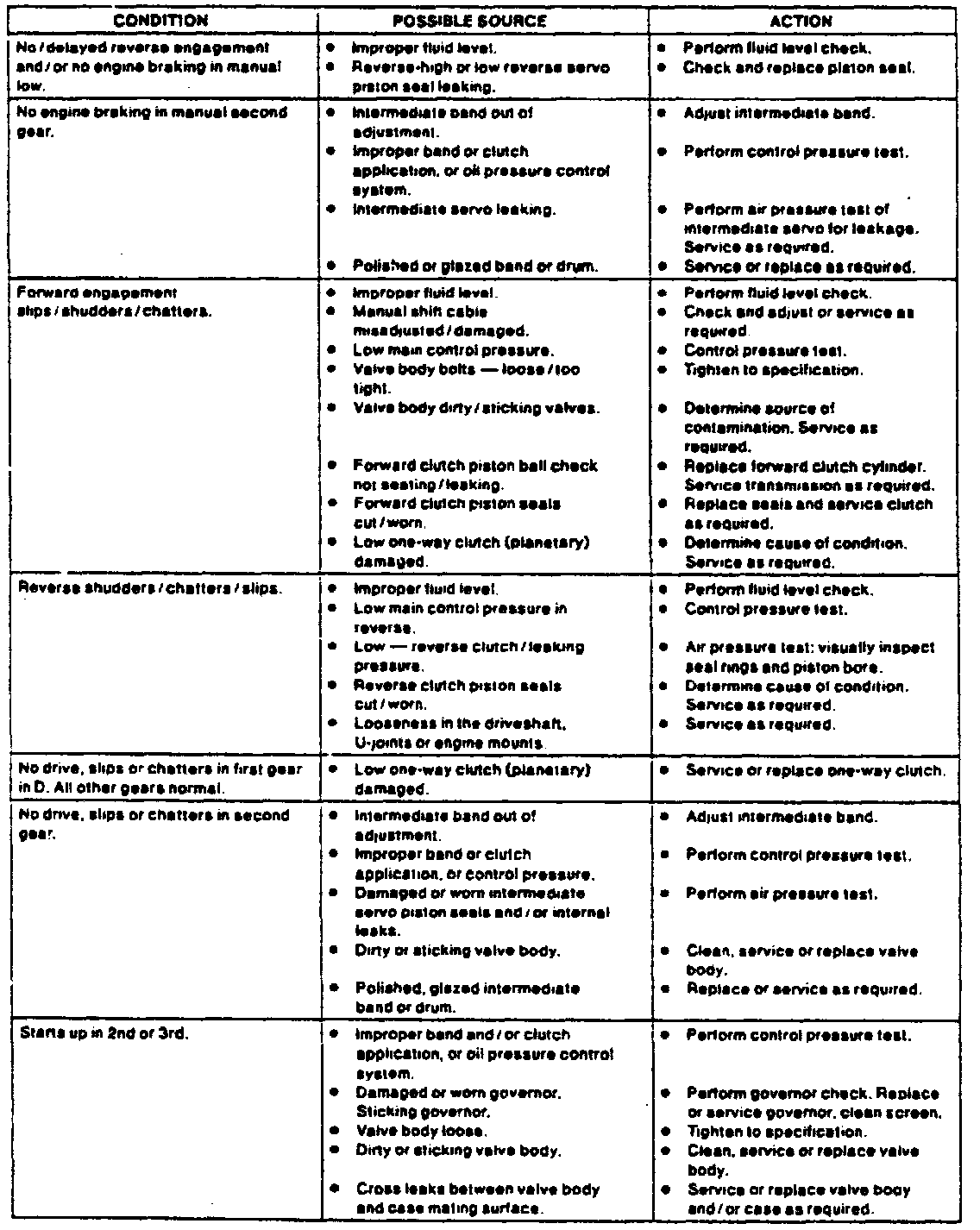

Troubleshooting Transmission By Condition Chart, (Part 2 Of 9):

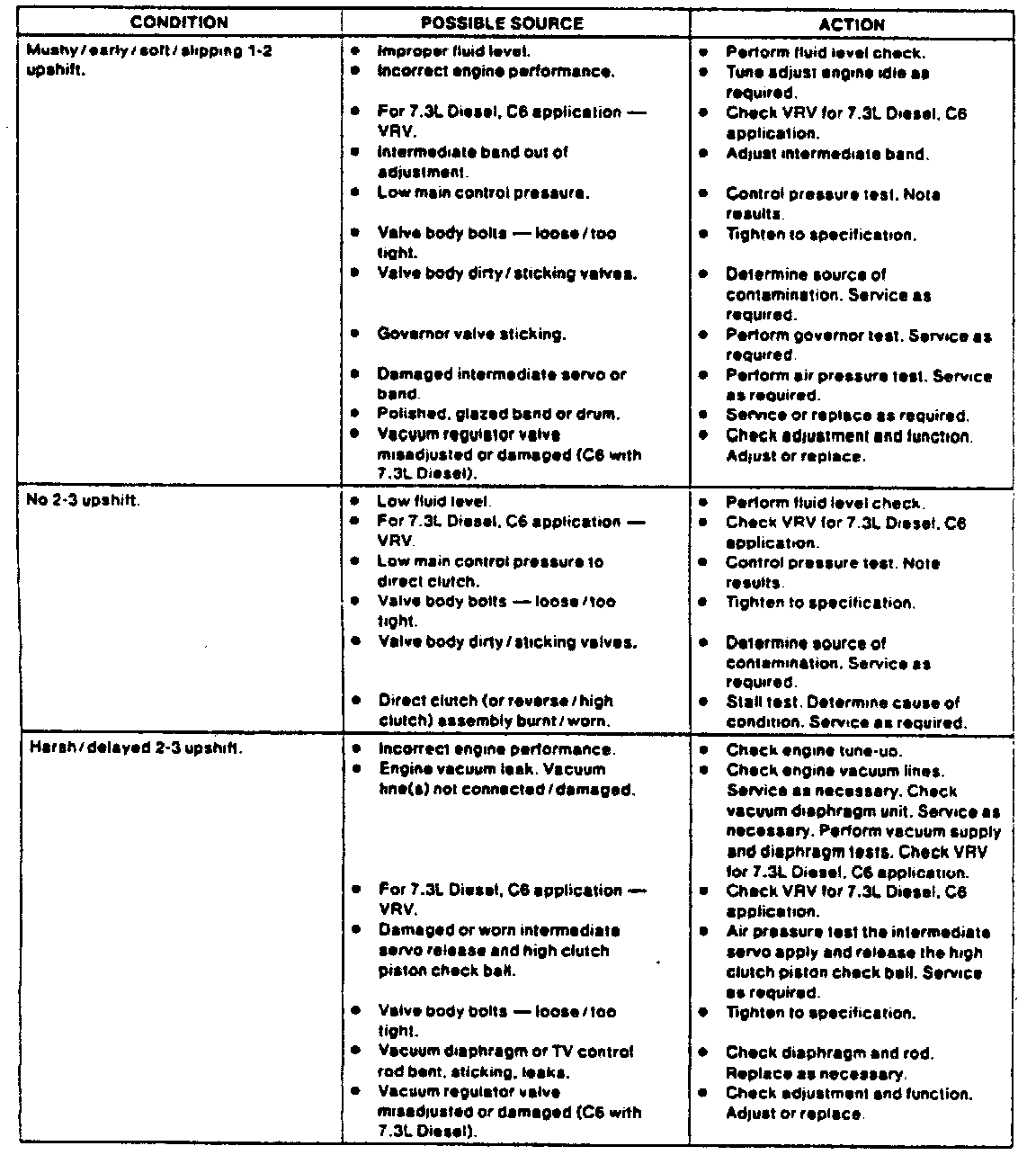

Troubleshooting Transmission By Condition Chart, (Part 3 Of 9):

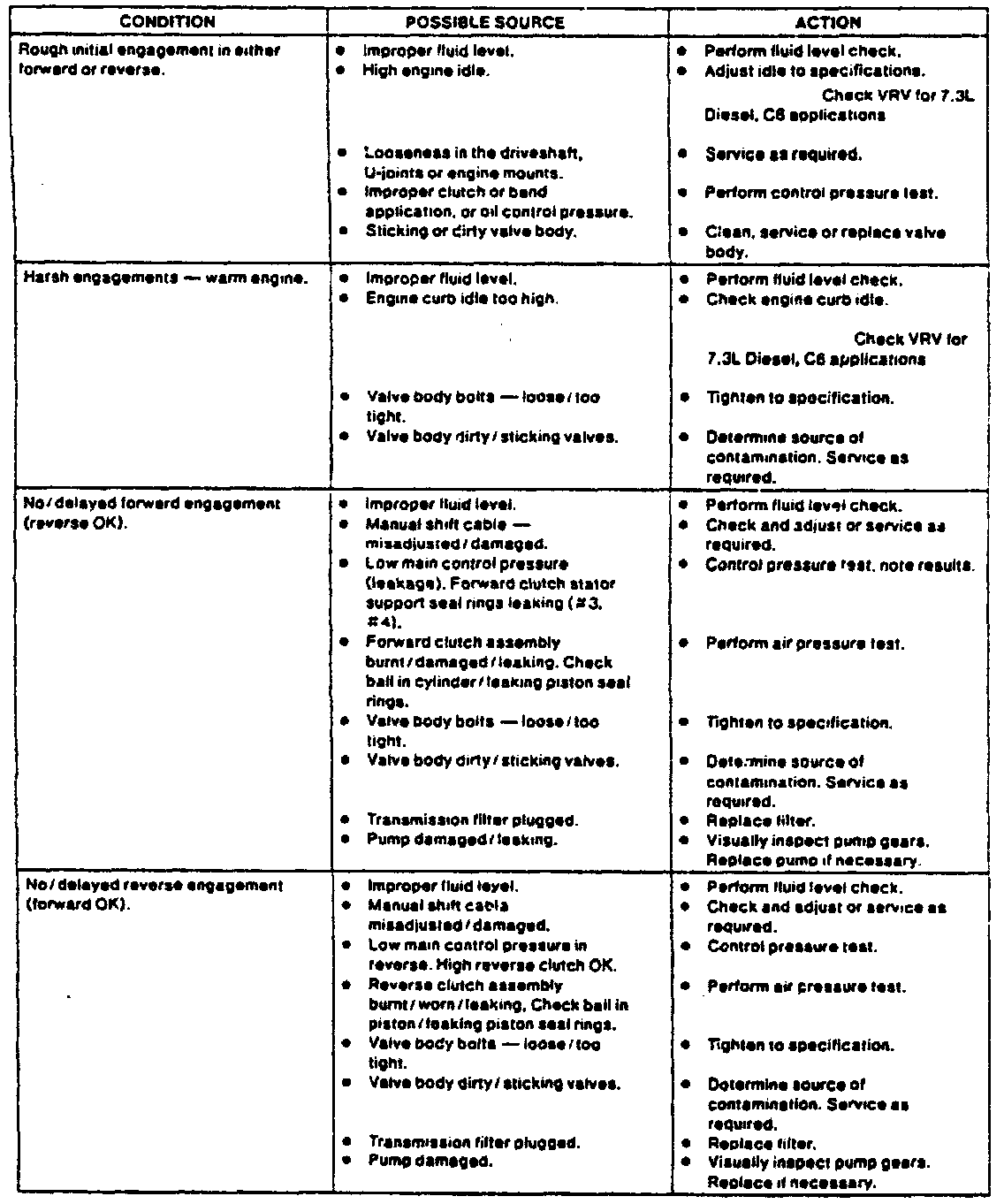

Troubleshooting Transmission By Condition Chart, (Part 4 Of 9):

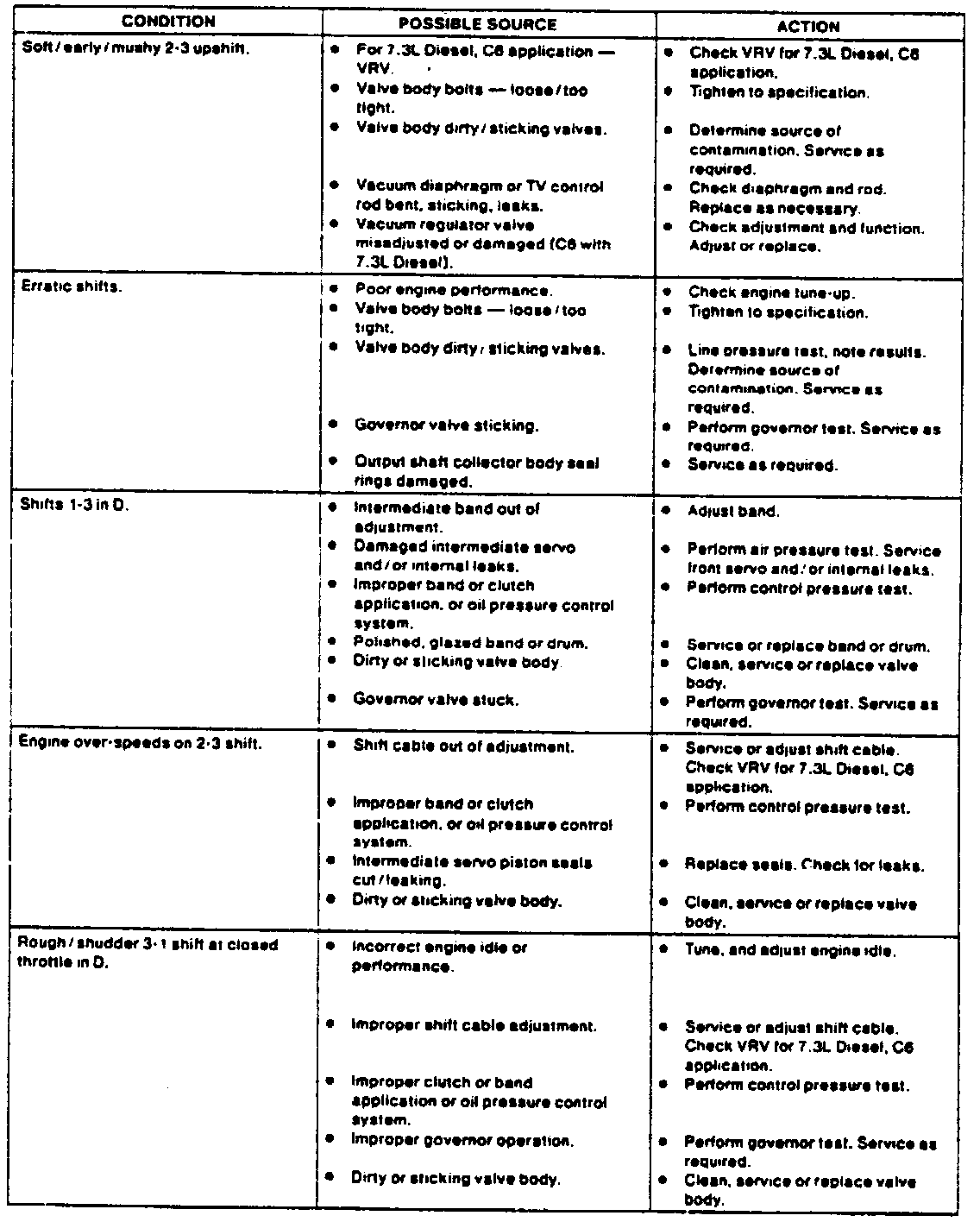

Troubleshooting Transmission By Condition Chart, (Part 5 Of 9):

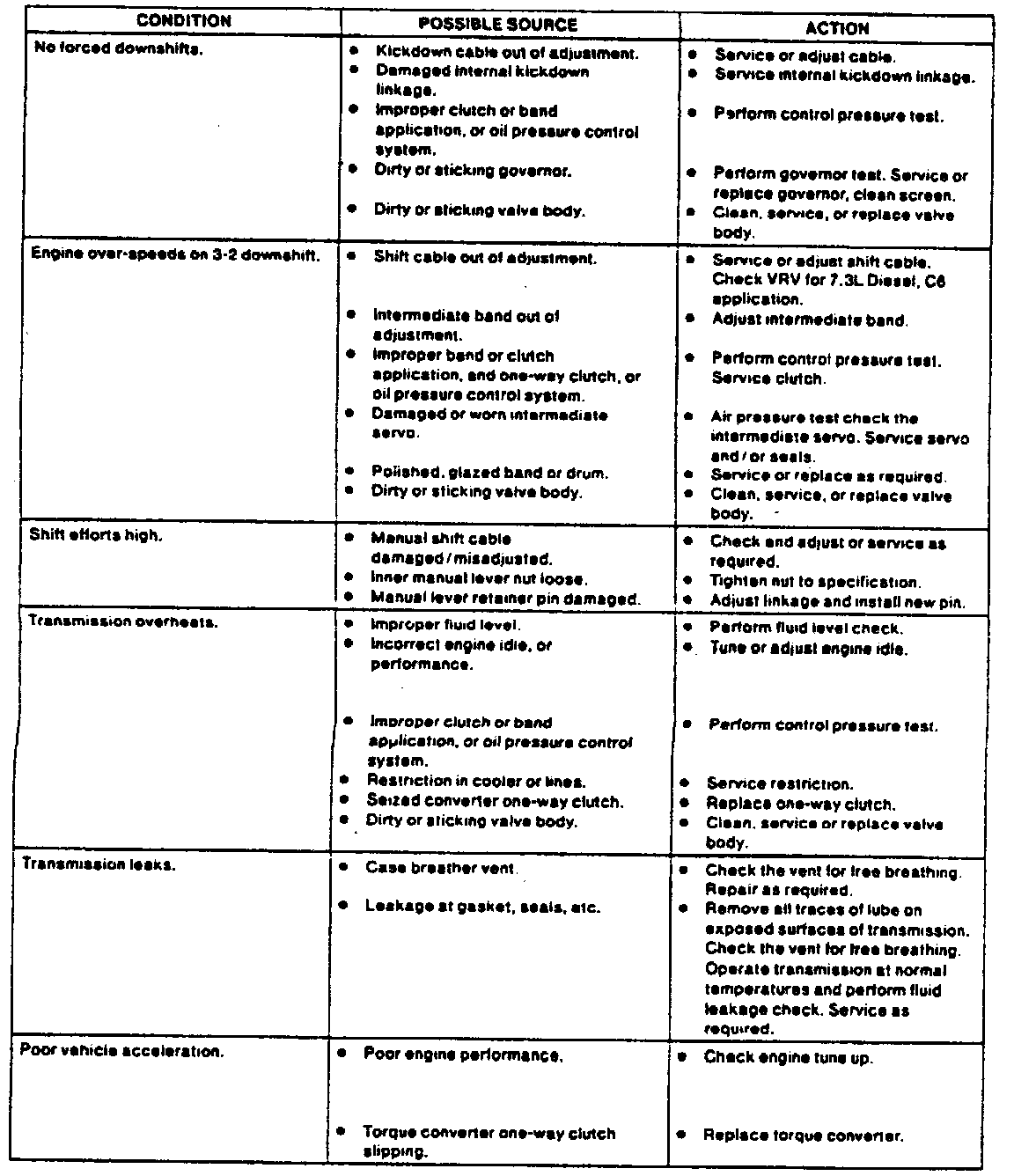

Troubleshooting Transmission By Condition Chart, (Part 6 Of 9):

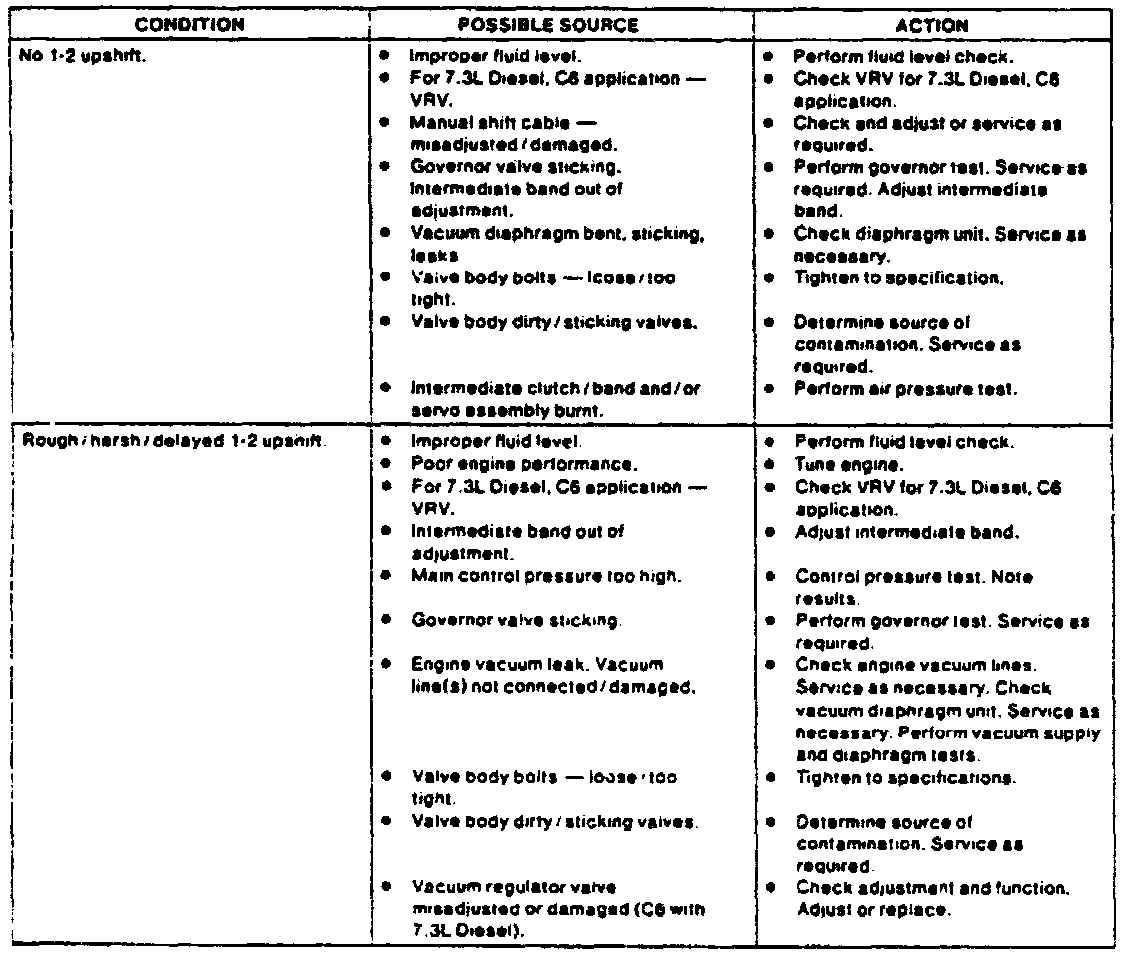

Troubleshooting Transmission By Condition Chart, (Part 7 Of 9):

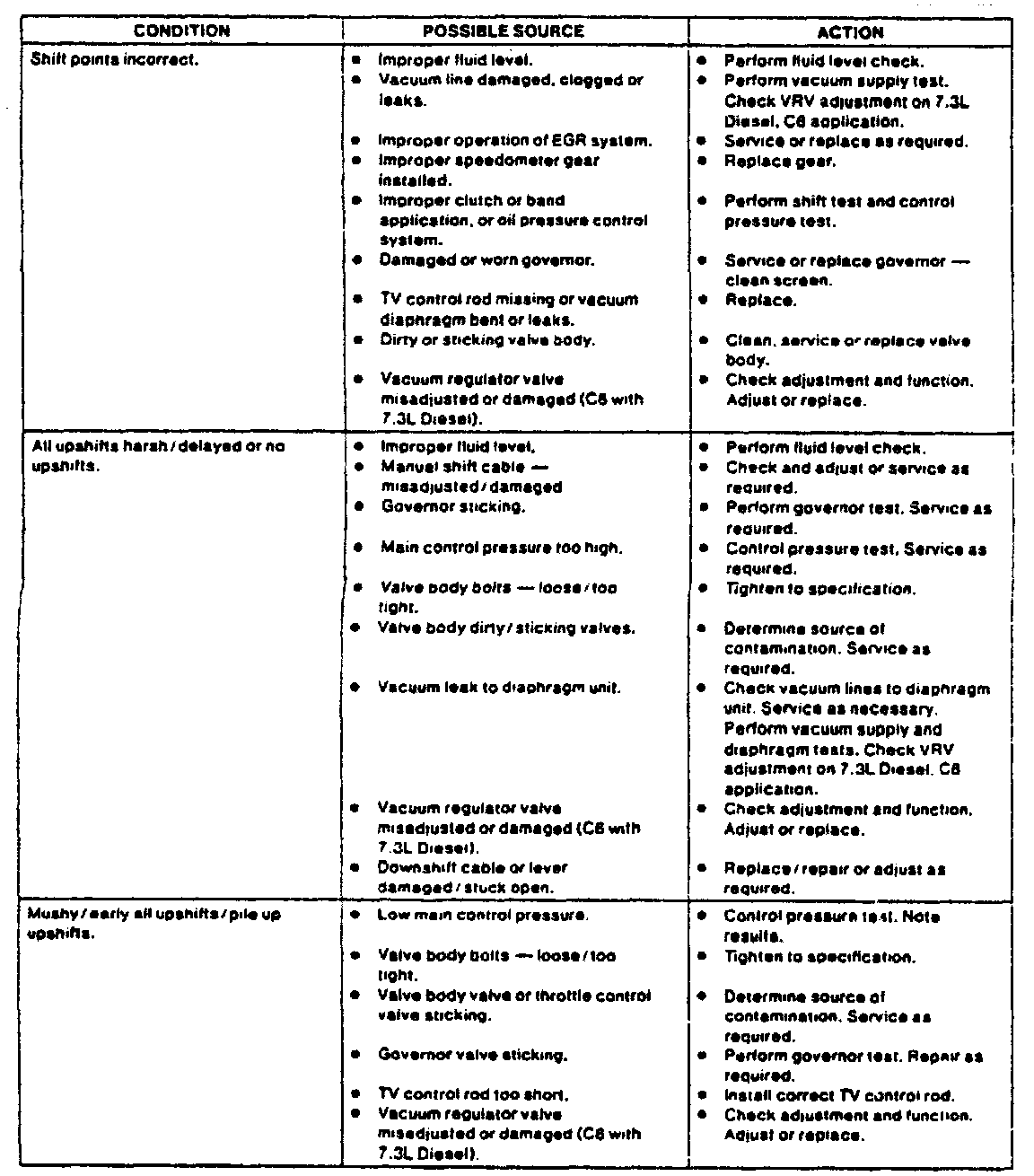

Troubleshooting Transmission By Condition Chart, (Part 8 Of 9):

Troubleshooting Transmission By Condition Chart, (Part 9 Of 9):

Refer to the Troubleshooting Transmission By Condition Charts, for troubleshooting this transmission.

Transmission Noisy - Other Than Valve Resonance:

Refer to the Transmission Noisy - Other Than Valve Resonance - Test A image, for other than valve resonance noise.
