Vane Air Flow Sensor - Pinpoint Test

Article No.
89-25A-7

12/15/89

ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL, VOLUME H - 1989 - SECTION 17 - NEW CONTINUOUS CODE 26 FOR VANE AIR FLOW (VAF) SENSOR PINPOINT TEST DK

FORD:
1989 ESCORT

ISSUE:
A change in the 1.9L EFI calibration required a new Continuous Memory Code 26 for the EEC-IV--Pinpoint Tests, Vane Airflow Sensor. This information was not included in the 1989 Engine/Emission Shop Manual, Volume H.





ACTION:

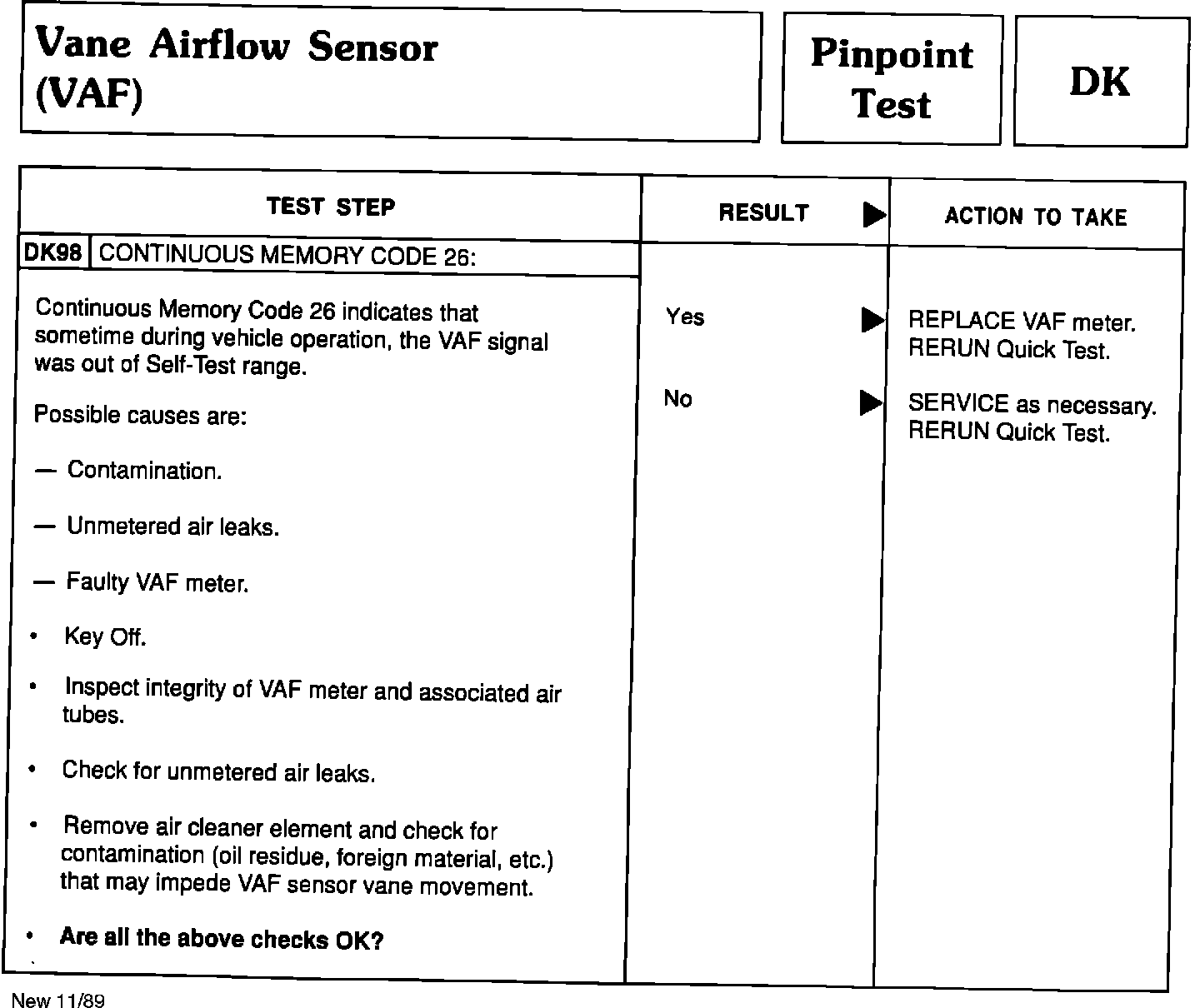

Refer to the page in this TSB article for the new material.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 4800
