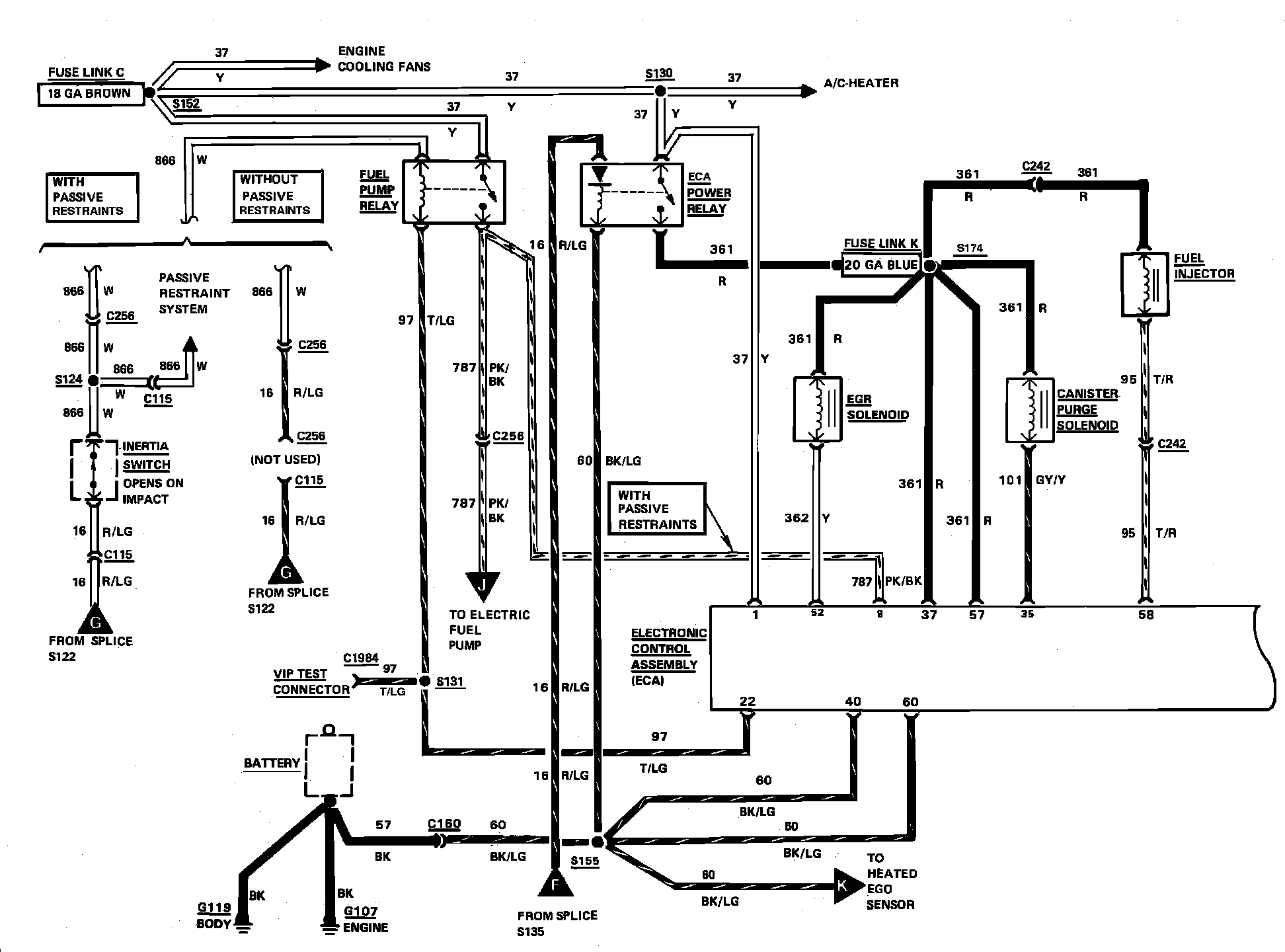

Electronic Engine Control System Wiring Circuit. With CFI:






Electronic Engine Control System Wiring Circuit. With CFI:
