Glow Plug Controller Illustration - Revision

89Ford20

ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM)-1988-START/GLOW PLUG CONTROL/RUN (DIESEL) GLOW PLUG CONTROLLER ILLUSTRATION REVISED

ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM)-1989-START/GLOW PLUG CONTROL/RUN (DIESEL)-GLOW PLUG CONTROLLER ILLUSTRATION REVISED

Article No. 89-12A-34













LIGHT TRUCK: 1988-89 F-250, F-350


ISSUE: The illustration (Figure 1) on page 33 of the 1988 Bronco/F150-350/F-Super Duty EVTM and page 35 of the 1989 Bronco/F150-350/F-Super Duty EVTM has been updated to show revised callouts for the Coolant Temperature Sensor and the Engine Temperature Sensor Connector.

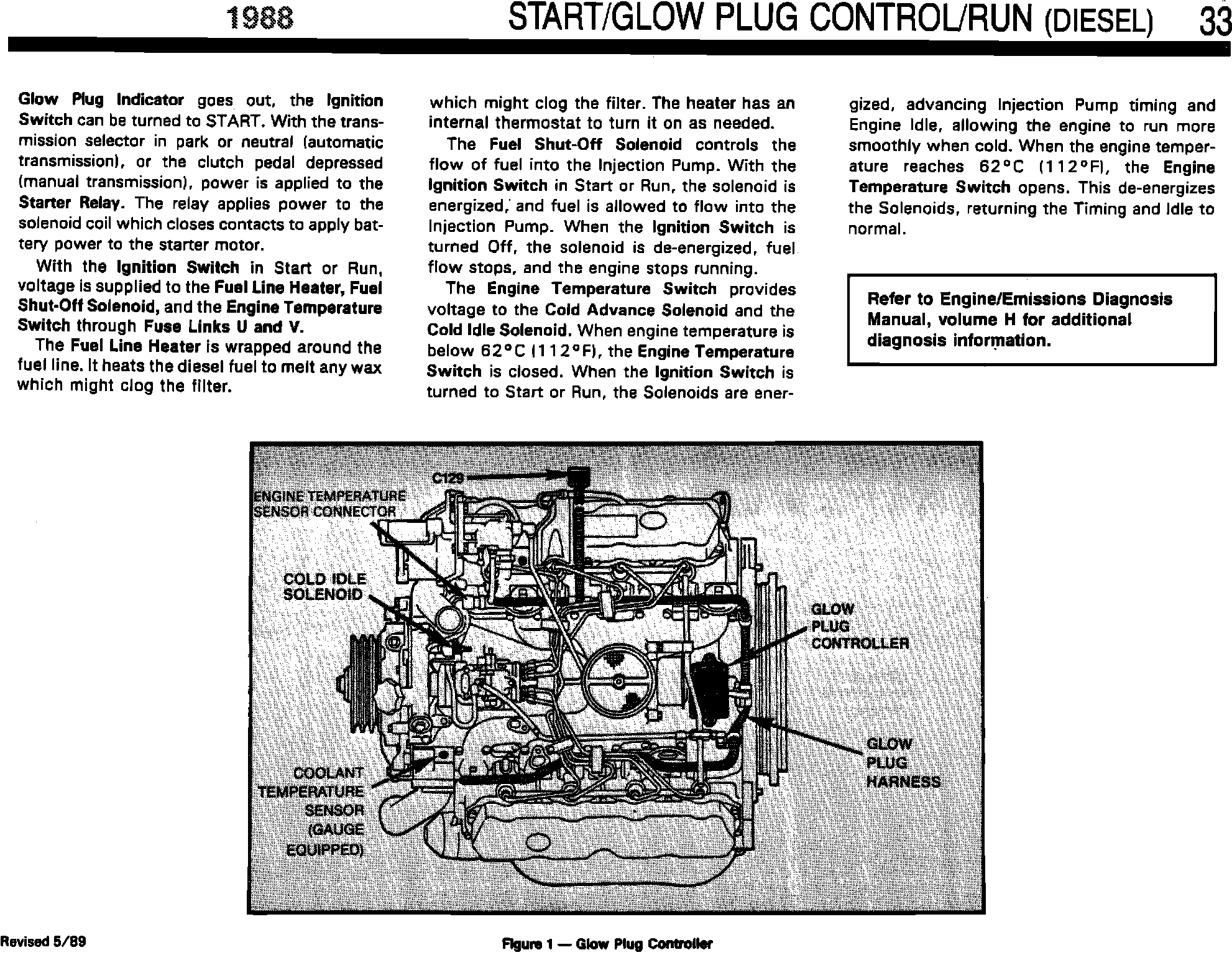

ACTION: Refer to the pages following this TSB article for the updated Figure 1. This information should be inserted in your 1988 Bronco/F150-350/F-Super Duty EVTM, page 33 and your 1989 Bronco/F150-350/F-Super Duty EVTM, page 35.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
