Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 1989 >> Festiva L4-81 1.3L SOHC 2V >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Timing >> Testing and Inspection >> Spark Timing Test >> Ignition Timing Check

Ignition Timing Check

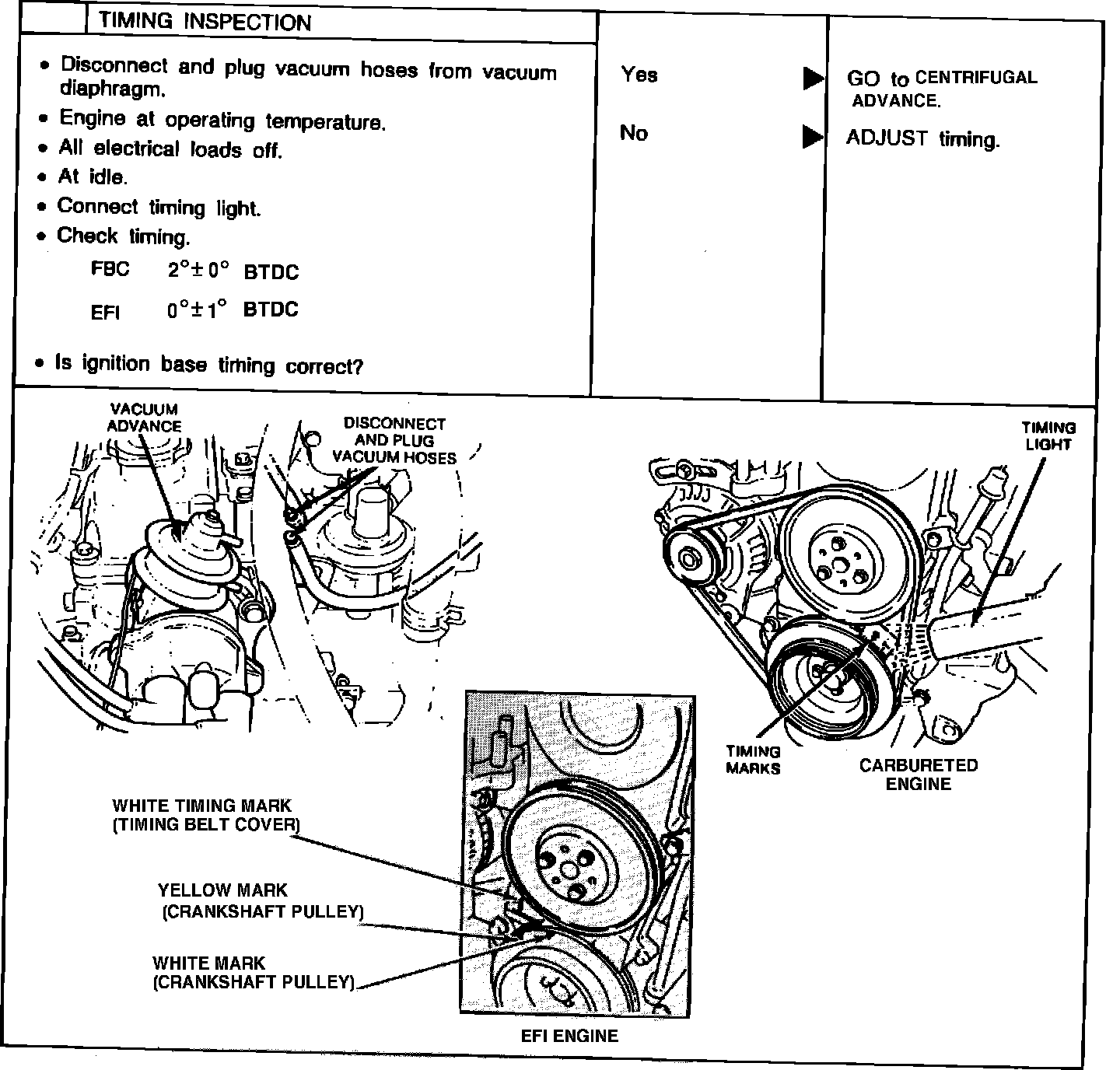

Timing Inspection:






***Updated by TSB #8912A21 6/27/89
