Home >> Ford >> 1989 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuel Door >> System Diagram

System Diagram

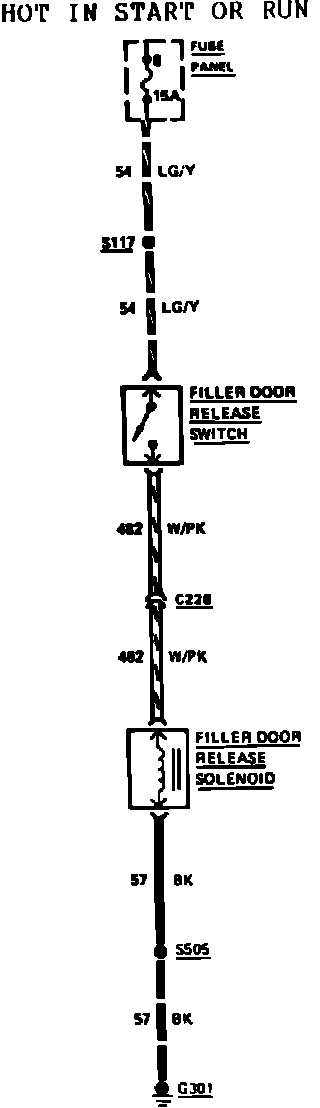

Fig. 39 Fuel Filler Door Wiring Circuit:
