Heating and Air Conditioning
>>
System Diagram
>>
With A/C
With A/C

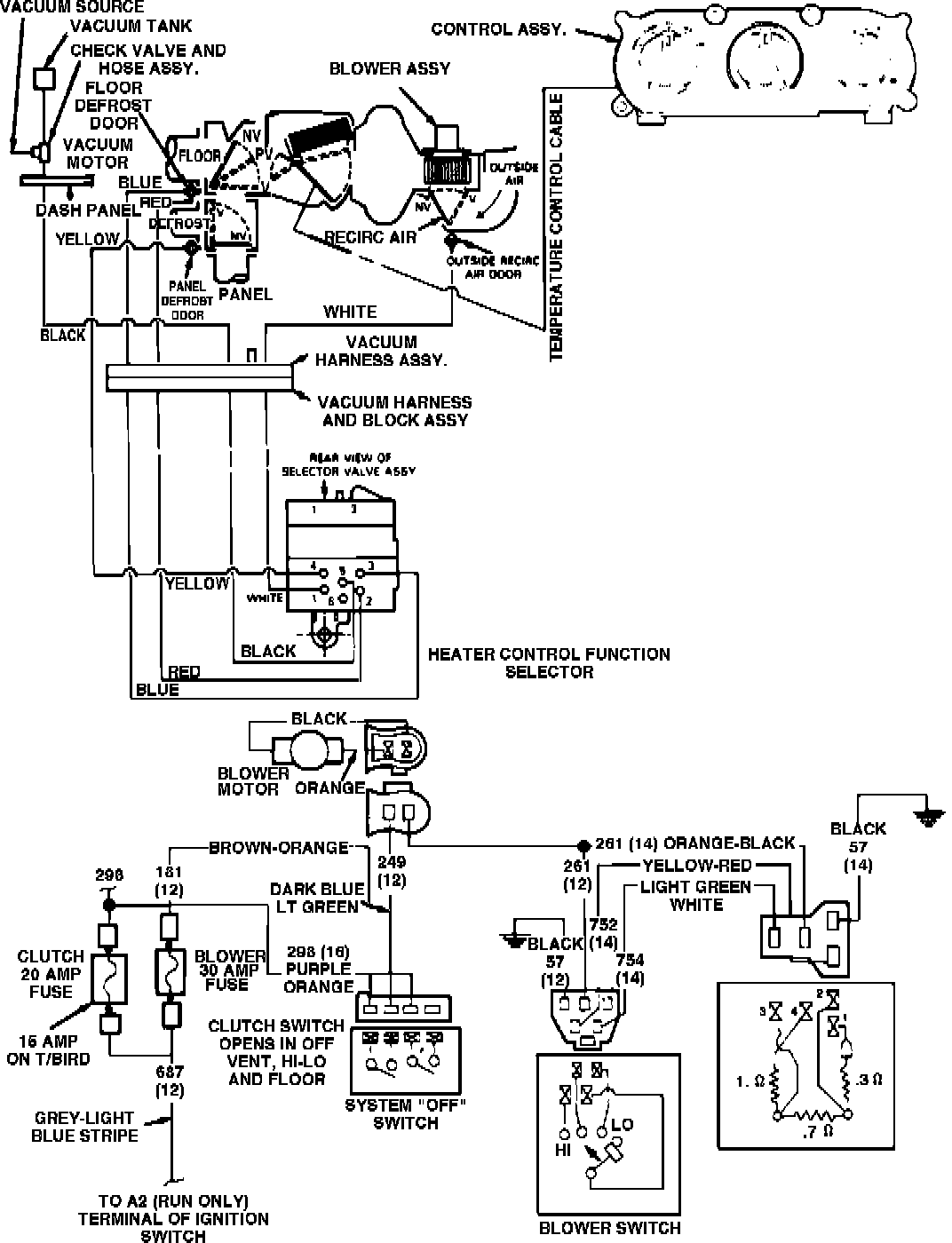

Air Conditioning & Heater Wiring Circuit:
Heater Wiring Circuit:
