Home >> Ford >> 1989 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Window Relay >> Except Convertible

Except Convertible

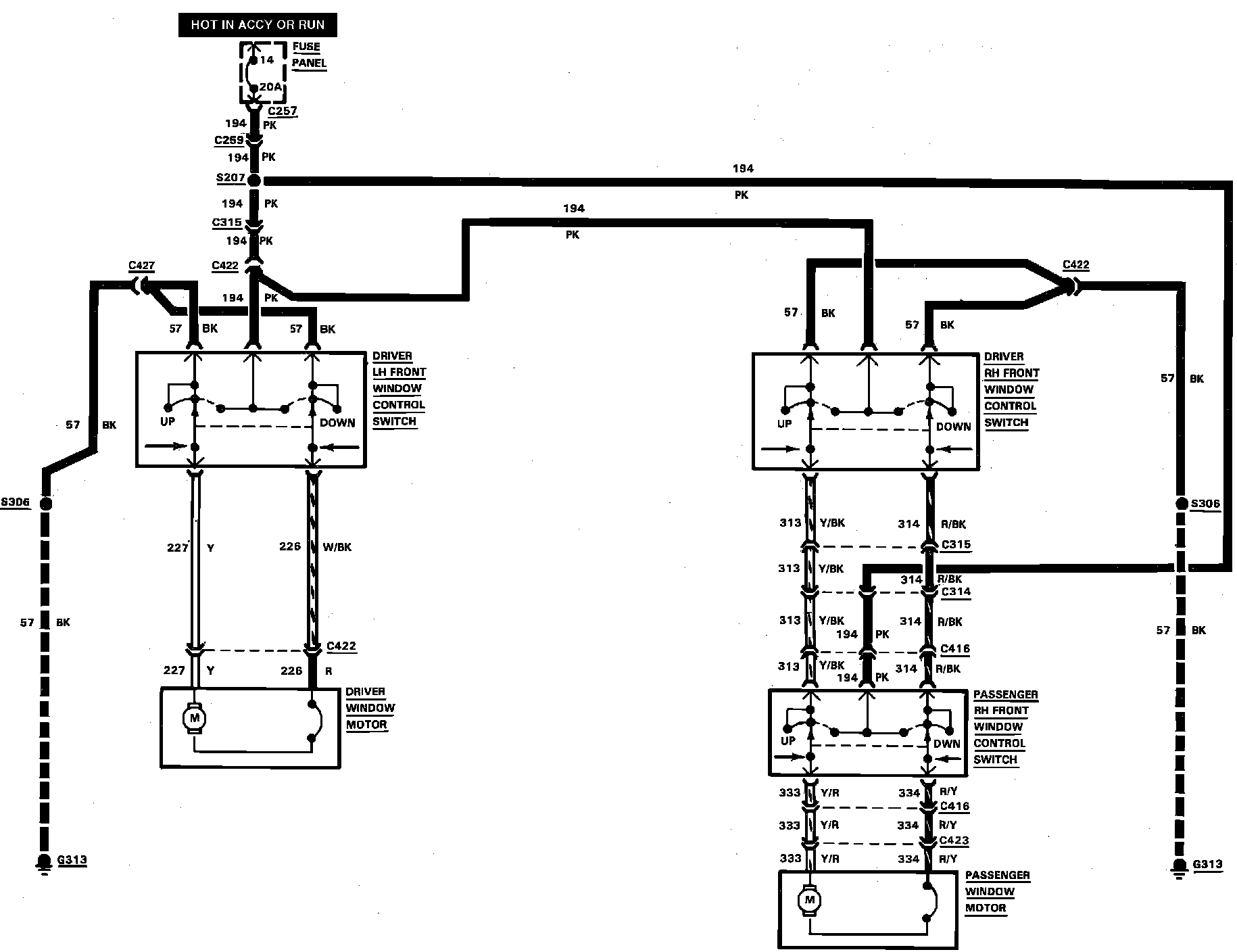

Power Window Wiring Circuit. Except Convertable:
