Non-Trouble Code Procedures

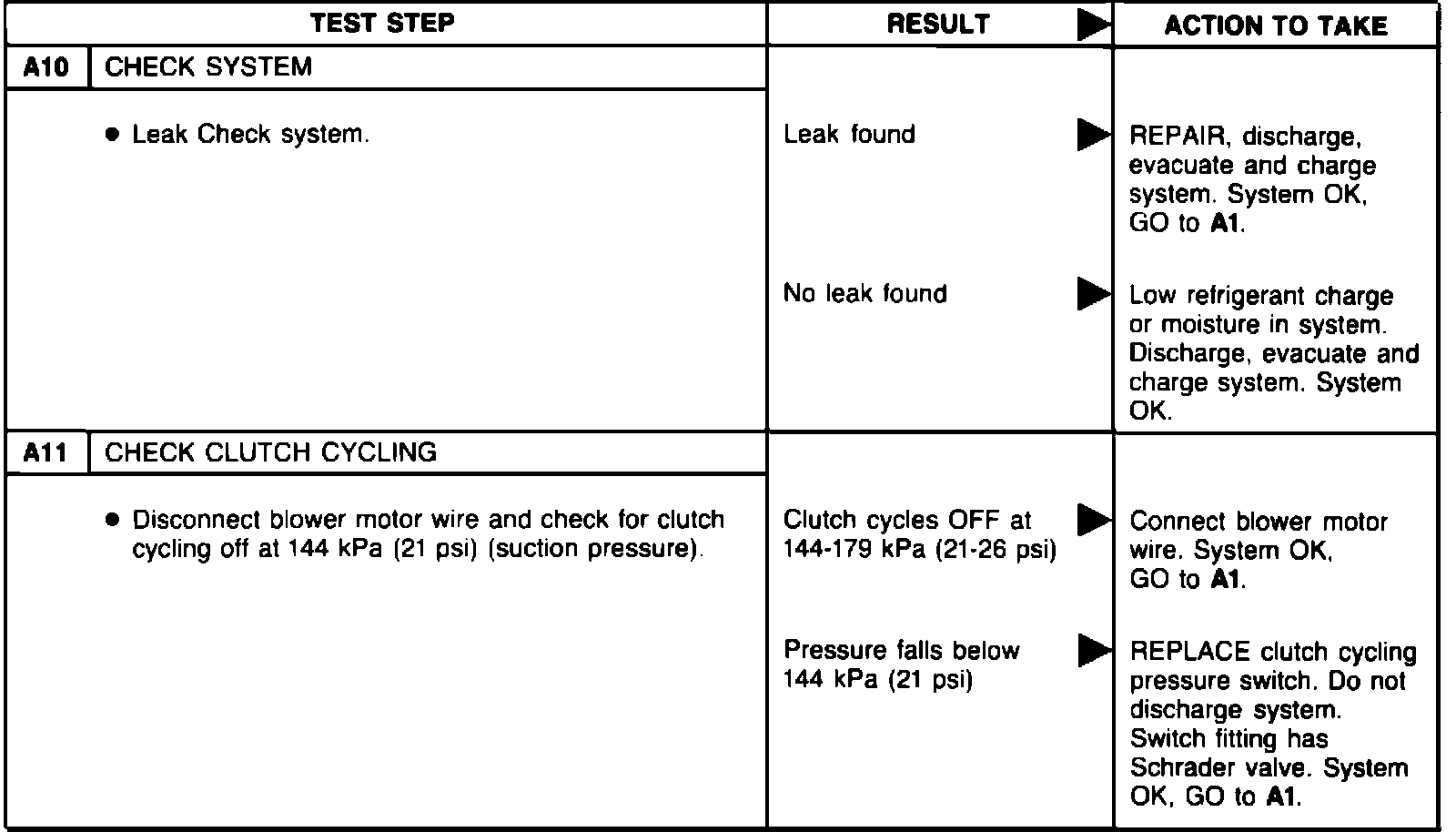

Fig. 1 Insufficient A/C cooling diagnosis (Part 1 of 3).:

Fig. 1 Insufficient A/C cooling diagnosis (Part 2 of 3).:

Fig. 1 Insufficient A/C cooling diagnosis (Part 3 of 3).:
