Home >> Ford >> 1989 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Maintenance >> Fuses and Circuit Breakers >> Fusible Link >> Locations >> Fuse Link A

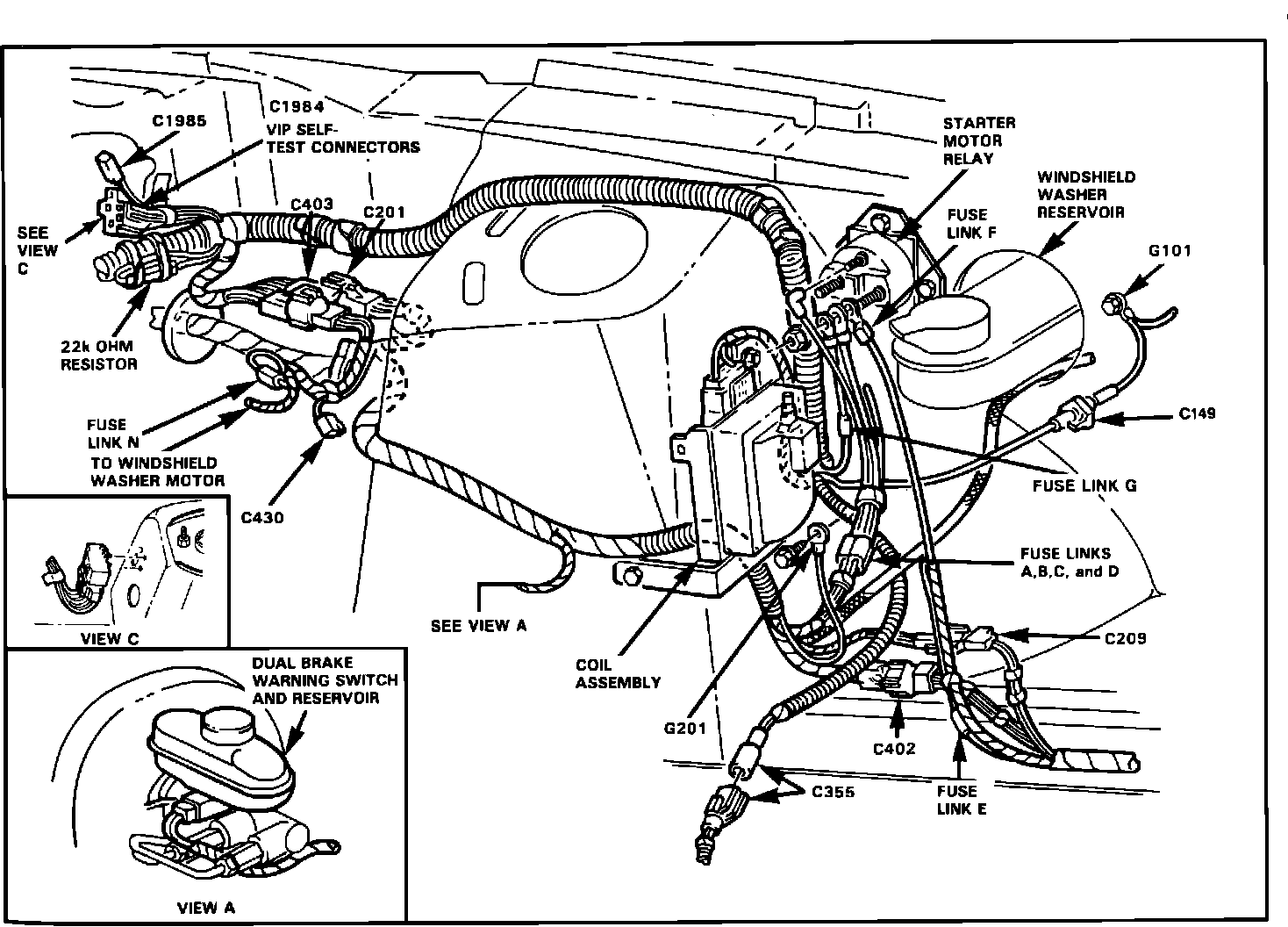

Fuse Link A

LH Fender Apron.:




At Starter Relay

Applicable to: V8-302/5.0L Engine
