DB - Air Charge Temperature Sensor (ACT)
>>
DB20 - DB22
DB20 - DB22

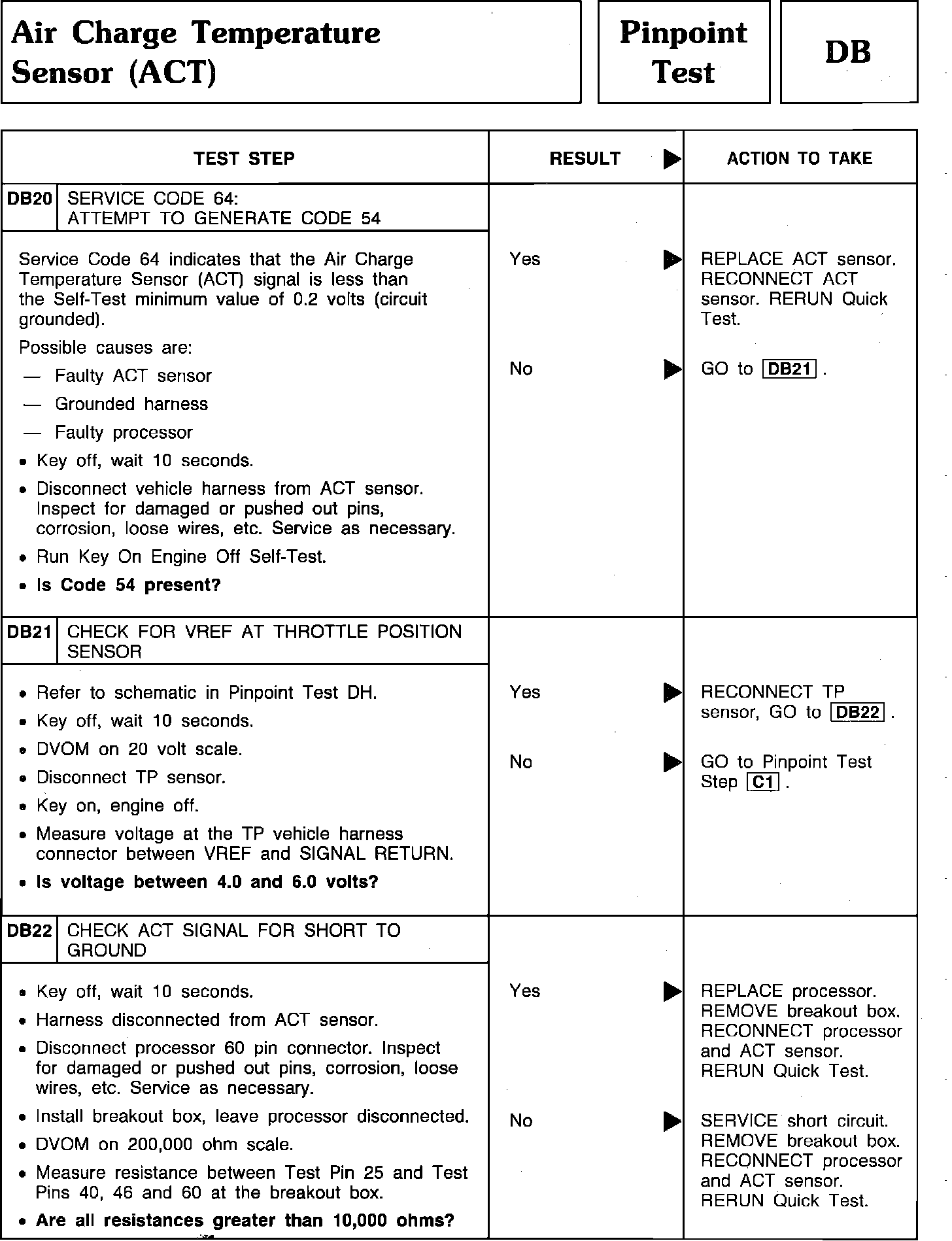

Pinpoint Test DB20 Thru DB22 - Air Charge Temperature Sensor (ACT):
