DN - EGR Valve Position Sensor/EGR Vacuum Regulator Solenoid
>>
DN12 - DN13
DN12 - DN13

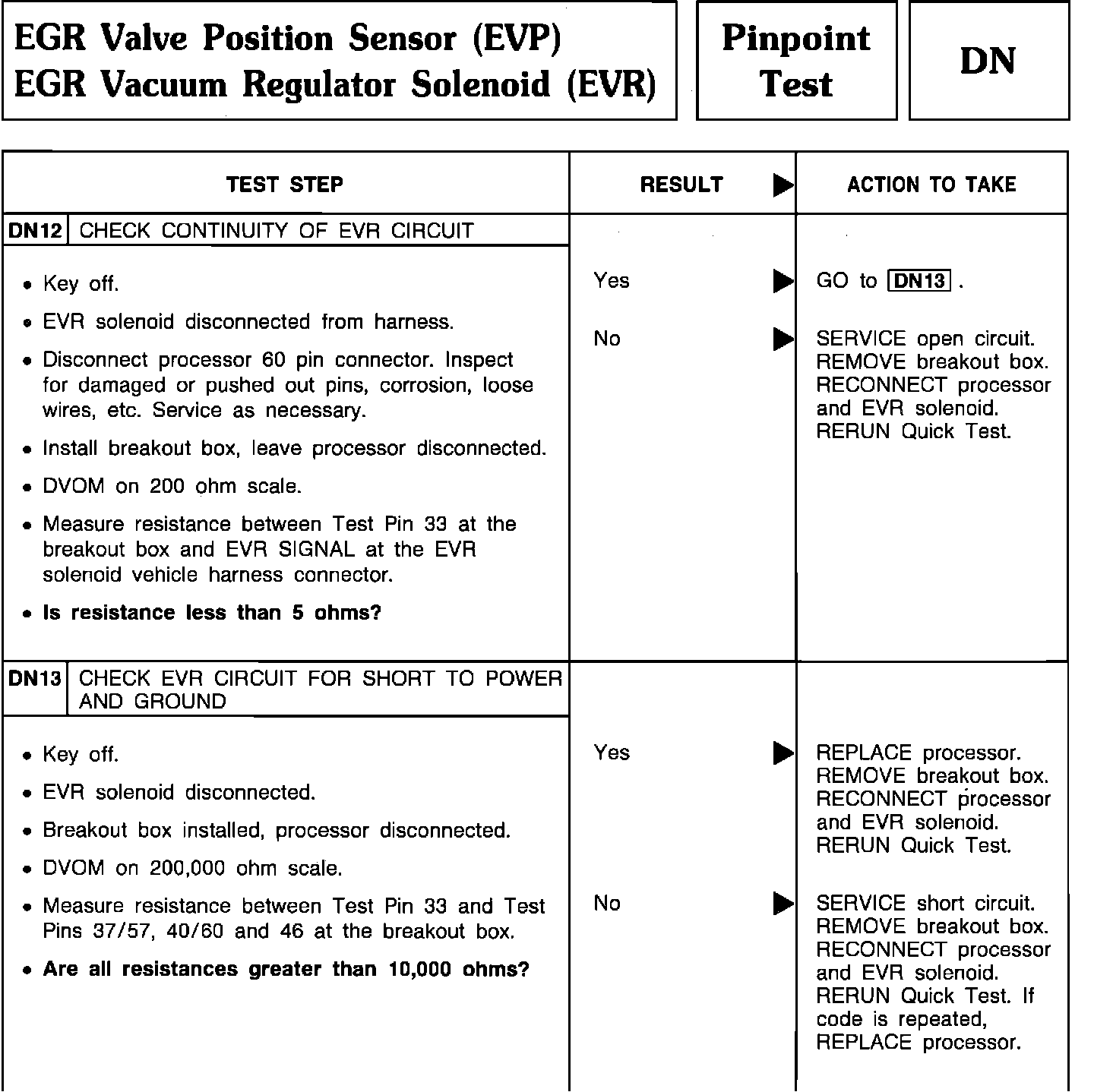

Pinpoint Test DN12 & DN13 - EGR Valve Position Sensor (EVP)/EGR Valve Regulator (EVR):
