FD - Brake On/Off (BOO) Switch
>>
FD10 - FD11
FD10 - FD11

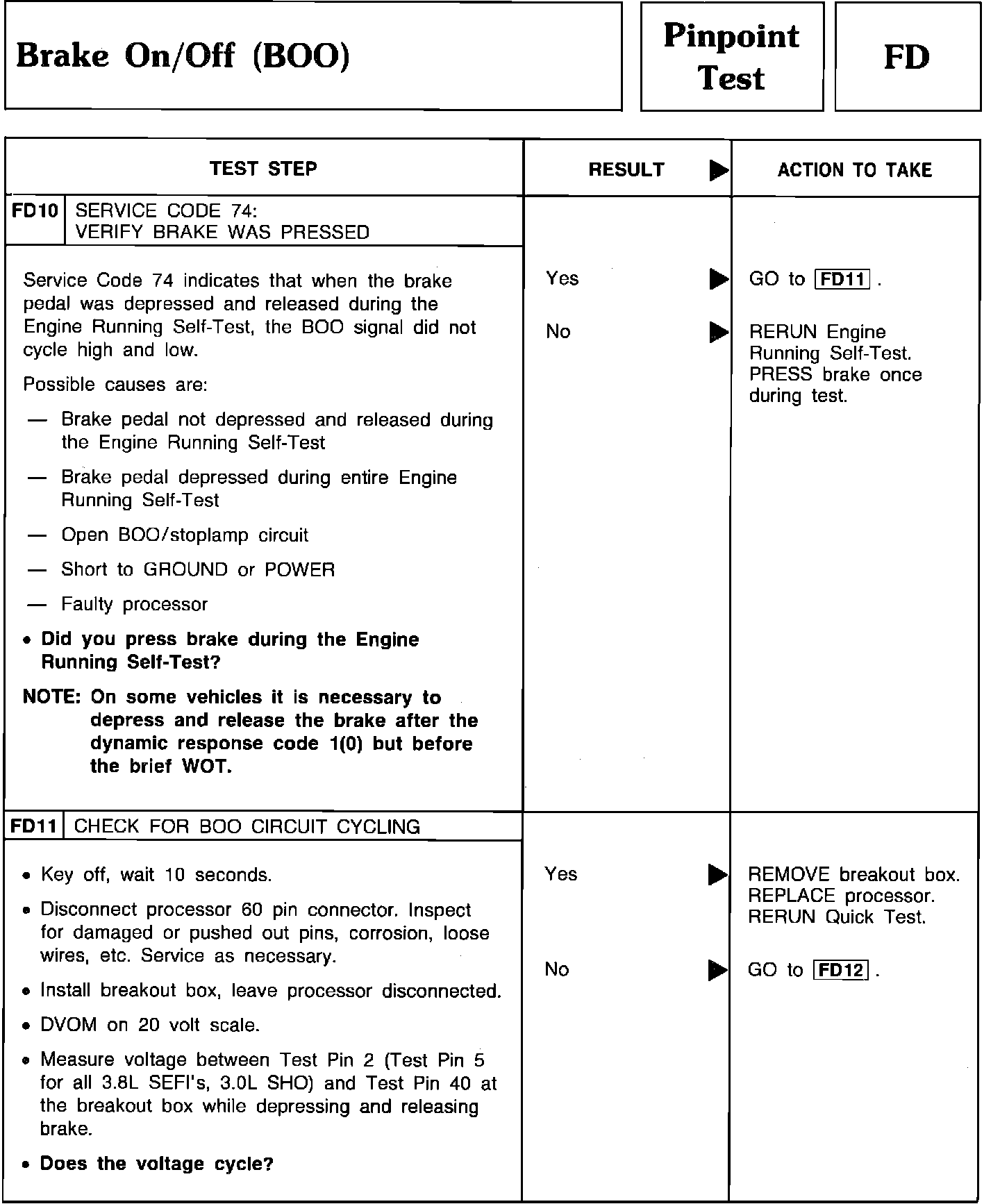

Pinpoint Test FD10 thru FD11 - Brake On/Off (BOO):
