H - Test Schematic

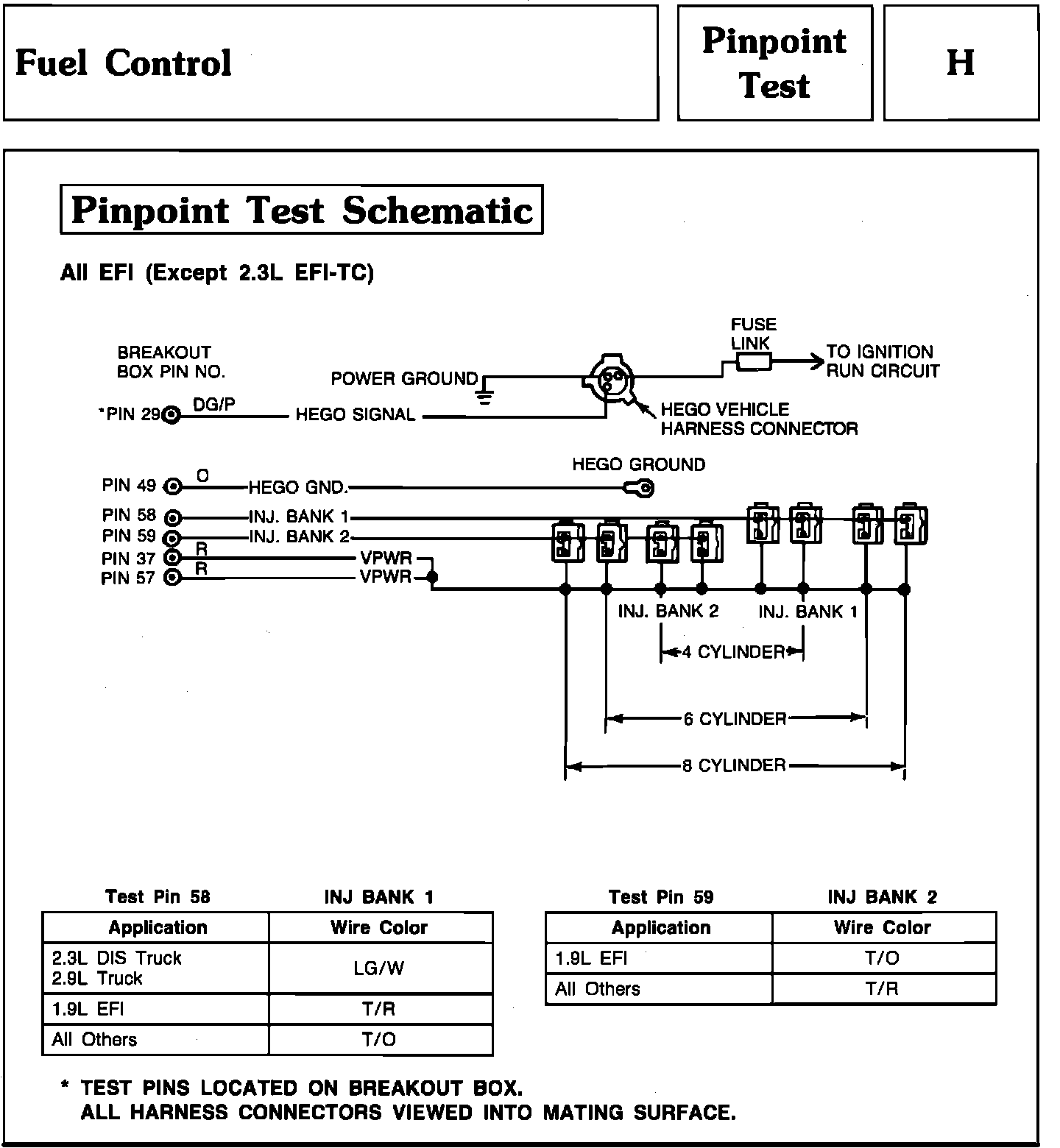

Pinpoint Test H - Test Schematic:

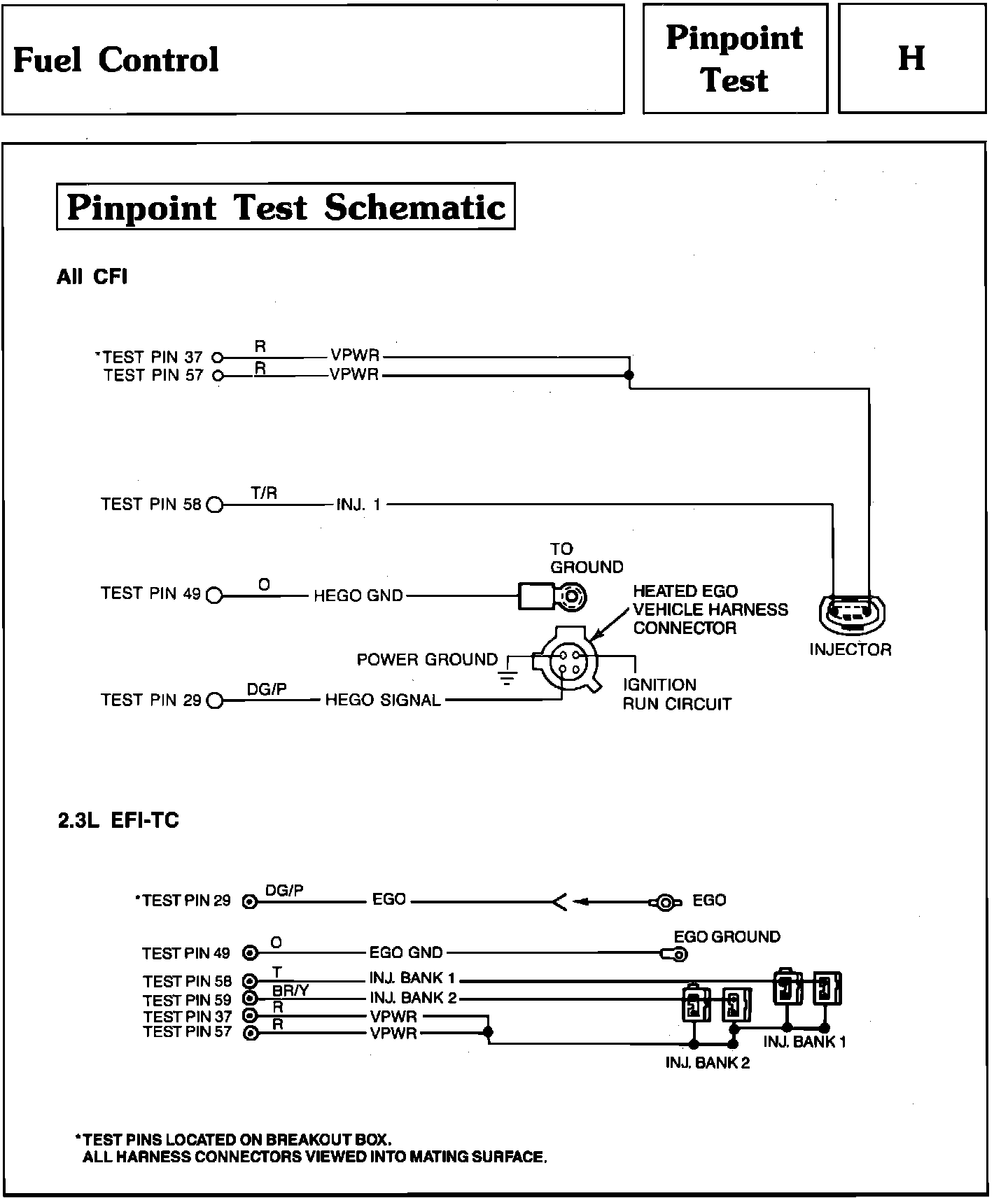

Pinpoint Test H - Test Schematic:

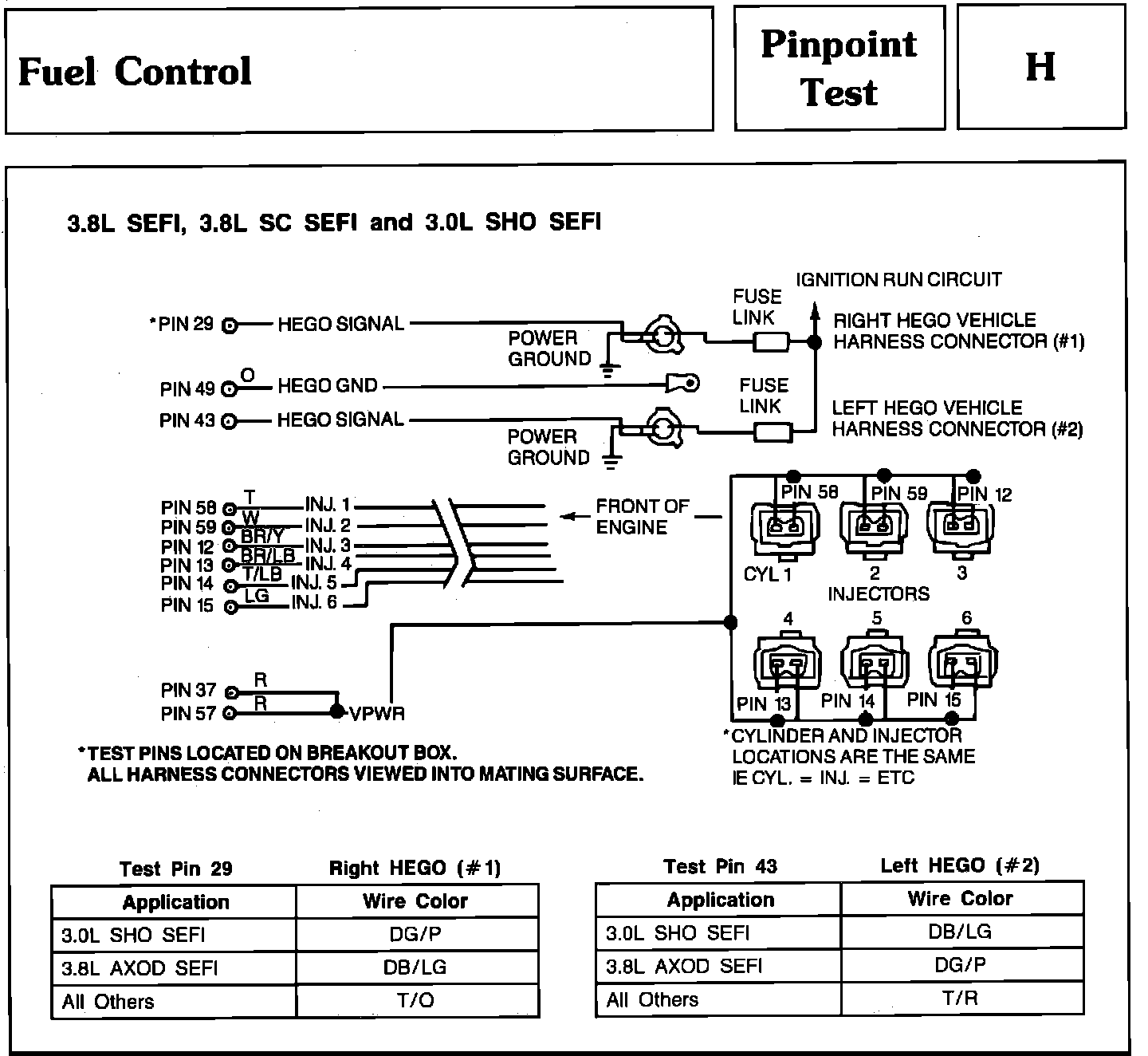

Pinpoint Test H - Test Schematic:
