KL - Shift Indicator Light (SIL)
>>
KL1 - KL4
KL1 - KL4

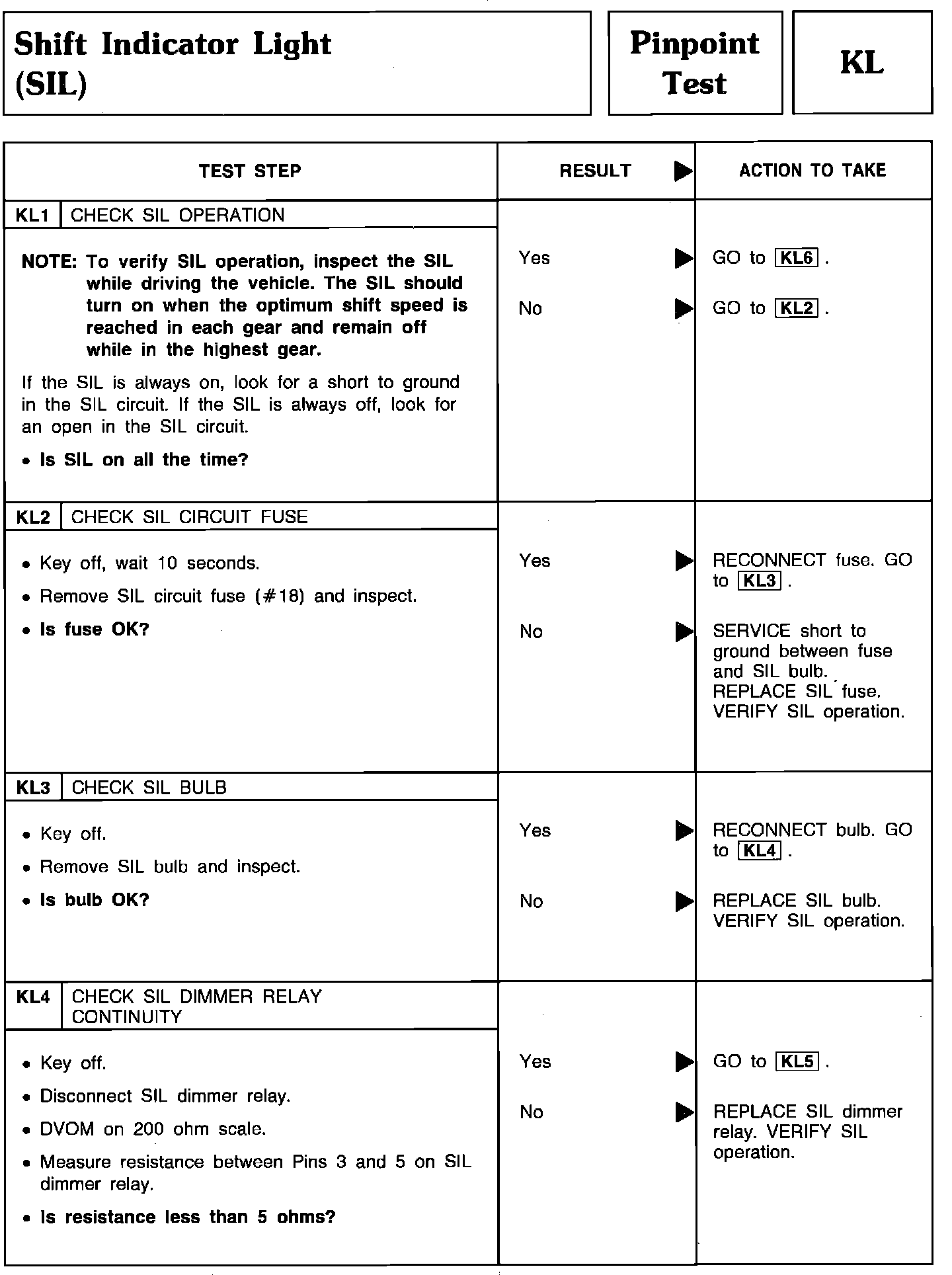

Pinpoint Test KL1 Thru KL4 - Shift Indicator Light (SIL):
