Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Integrated Relay Control Module
>>
X102 - X103
X102 - X103

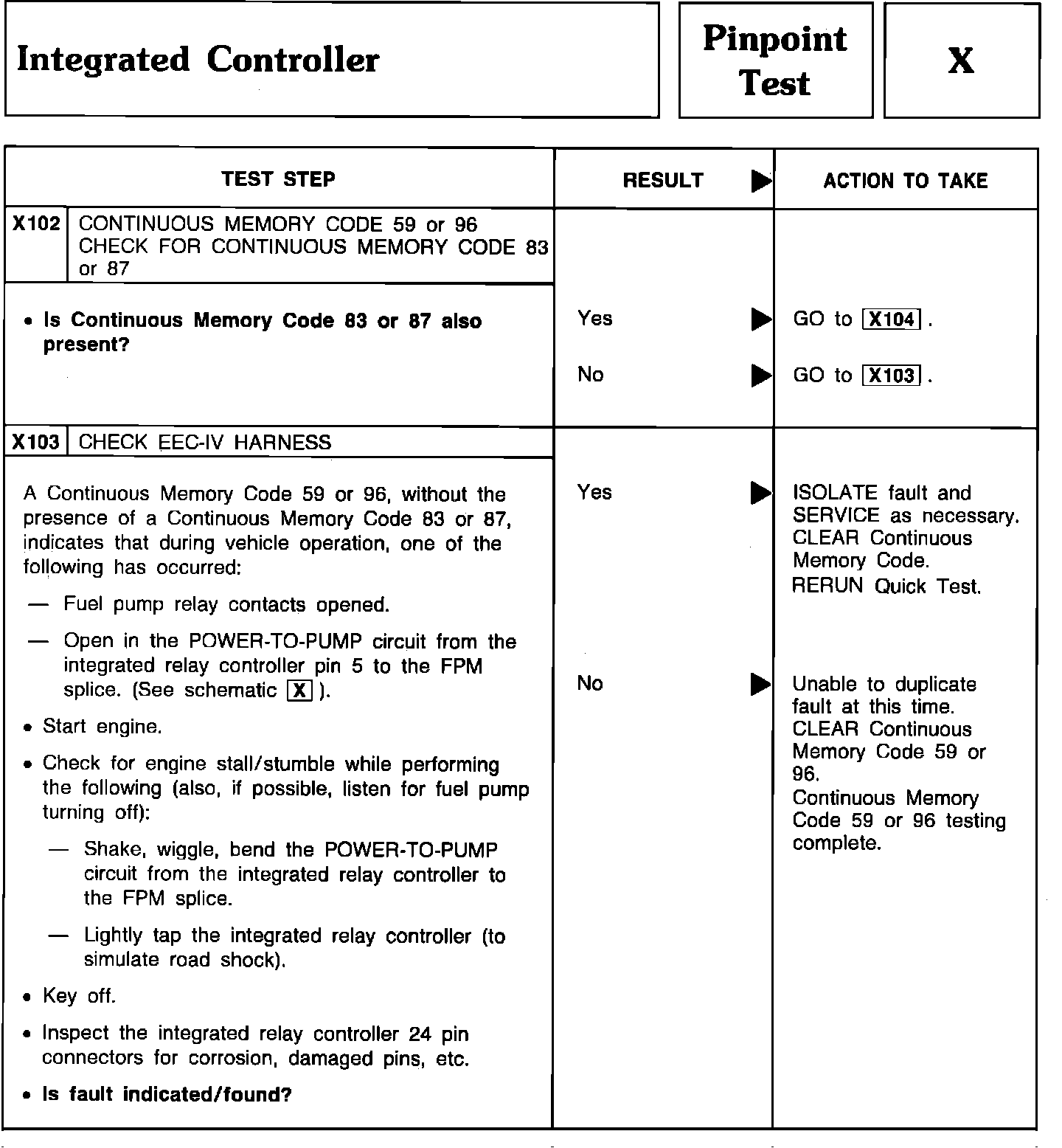

Pinpoint Test X102 & X103 - Integrated Controller:
