Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Integrated Relay Control Module
>>
X16 - X20
X16 - X20

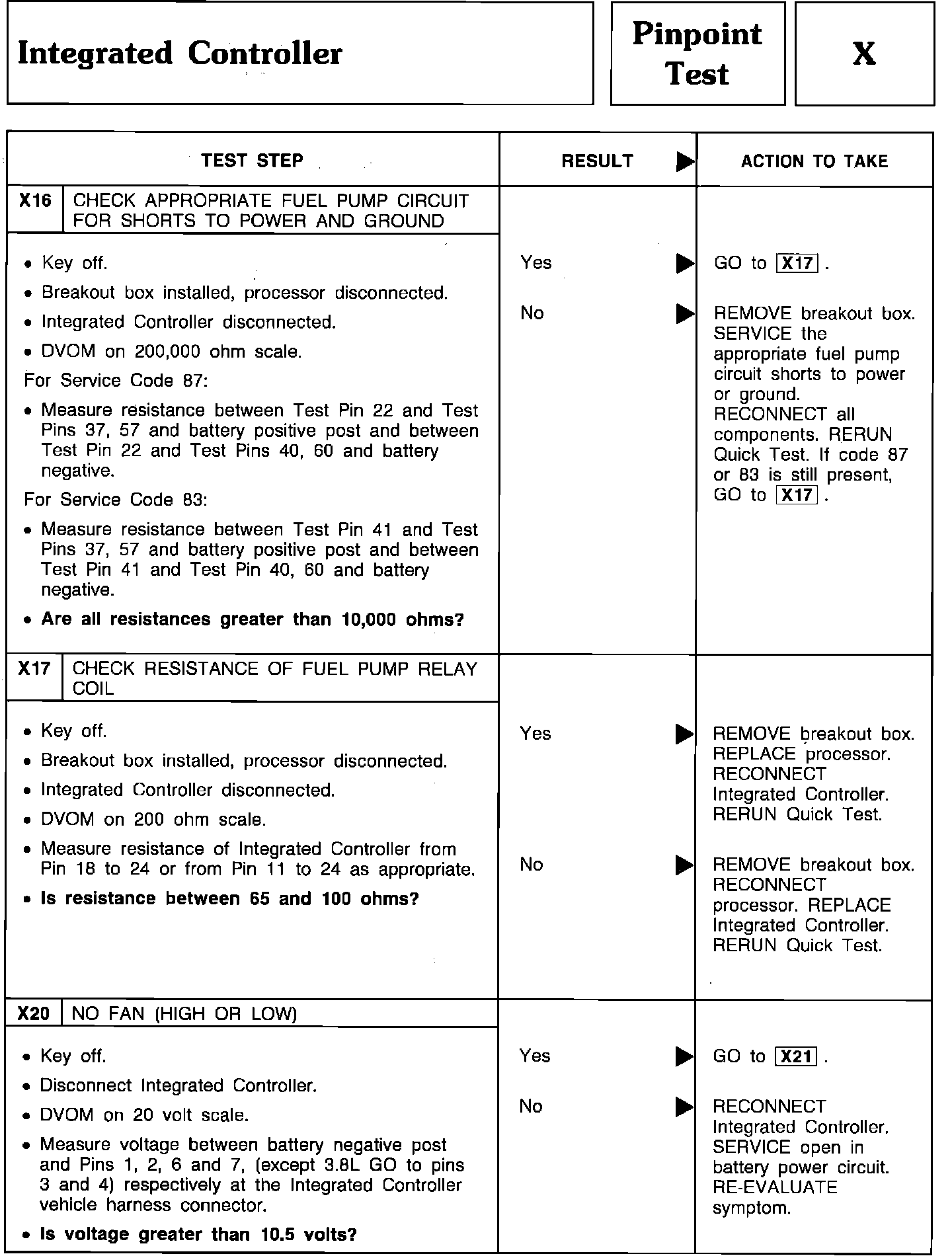

Pinpoint Test X16 Thru X20 - Integrated Controller:
