X - Integrated Relay Control Module
>>
X21 - X23
X21 - X23

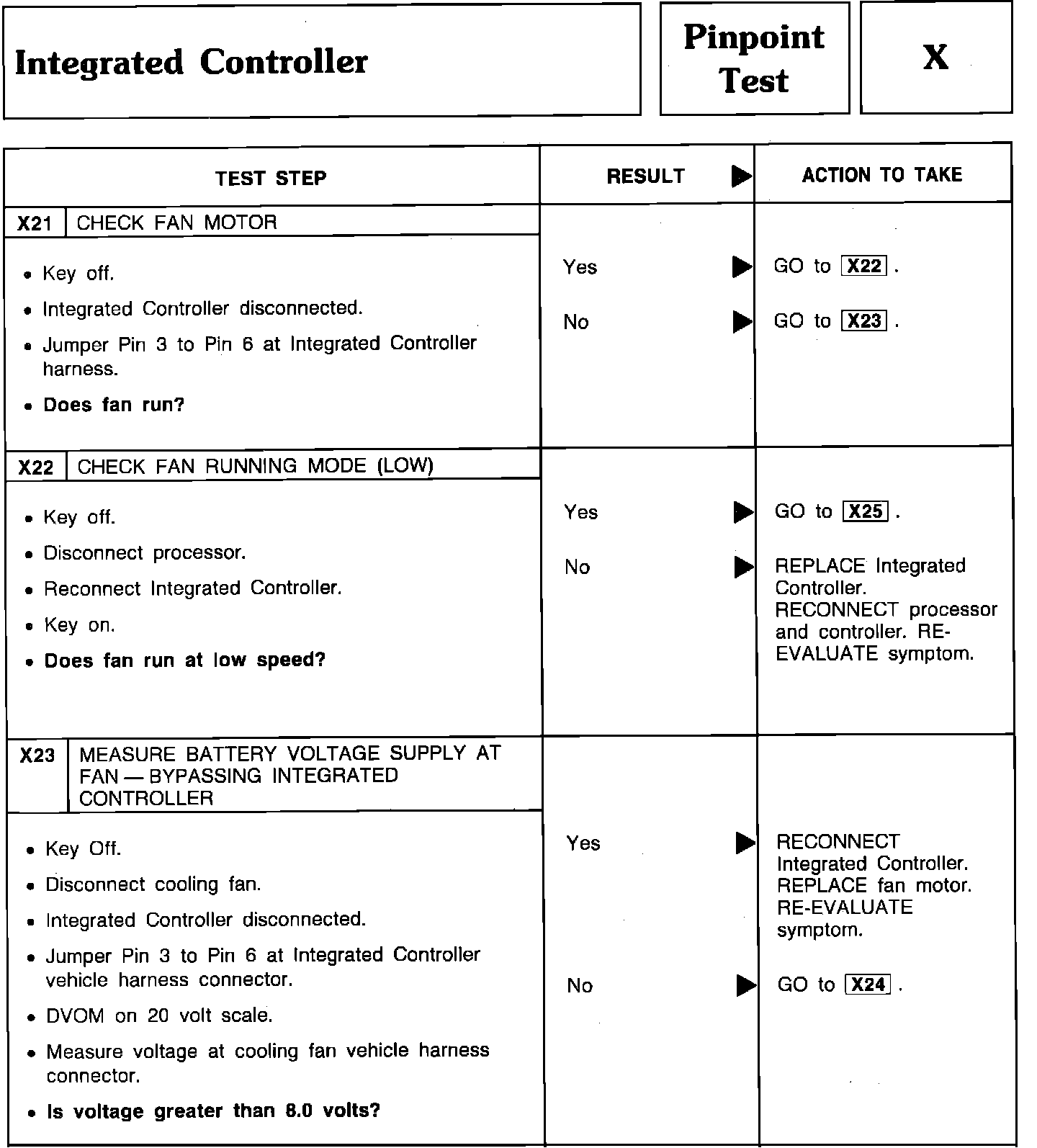

Pinpoint Test X21 Thru X23 - Integrated Controller:
