X - Integrated Relay Control Module
>>
X59 - X80
X59 - X80

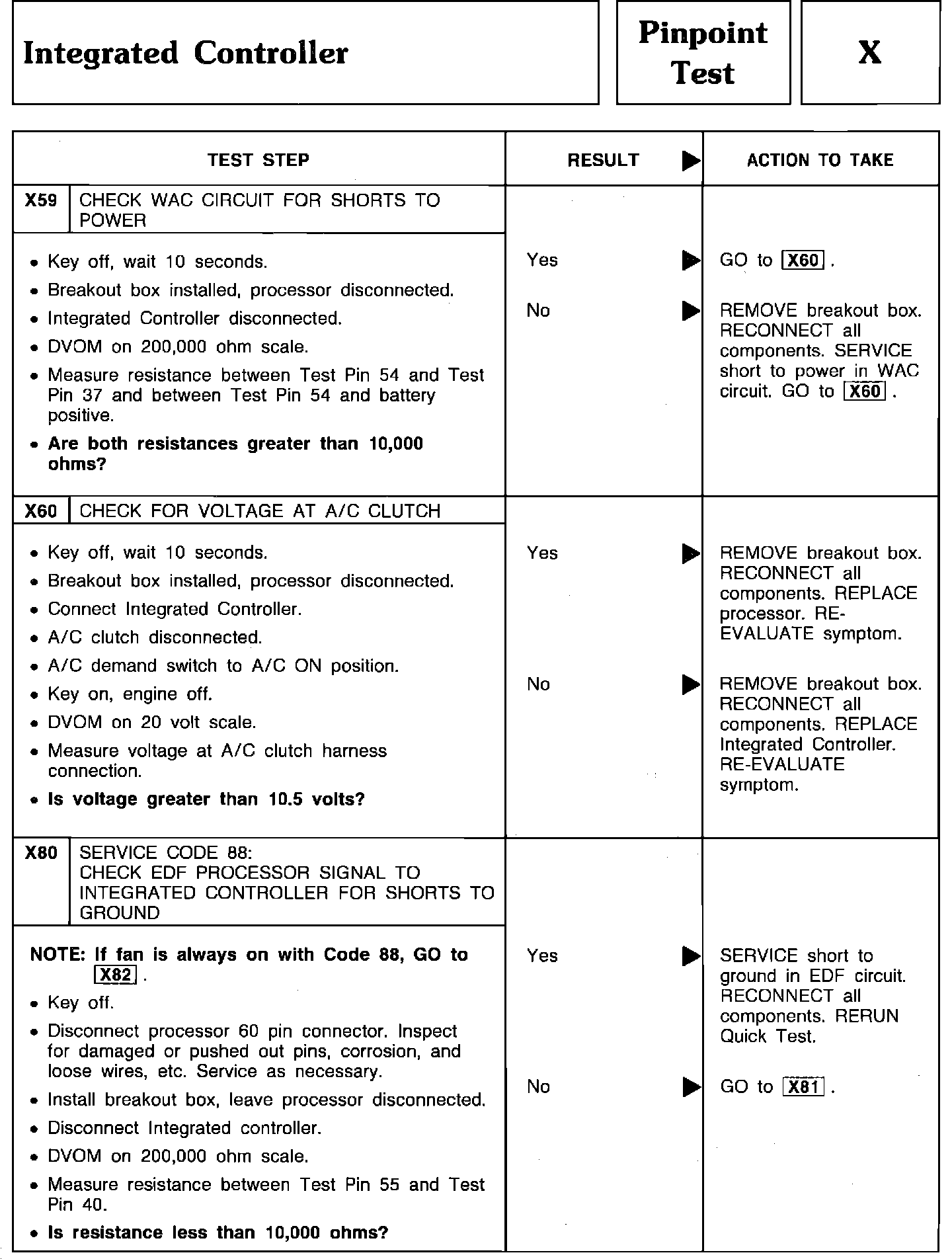

Pinpoint Test X59 Thru X80 - Integrated Controller:
