Low Fluid Monitor - Manual Revision

89ford26

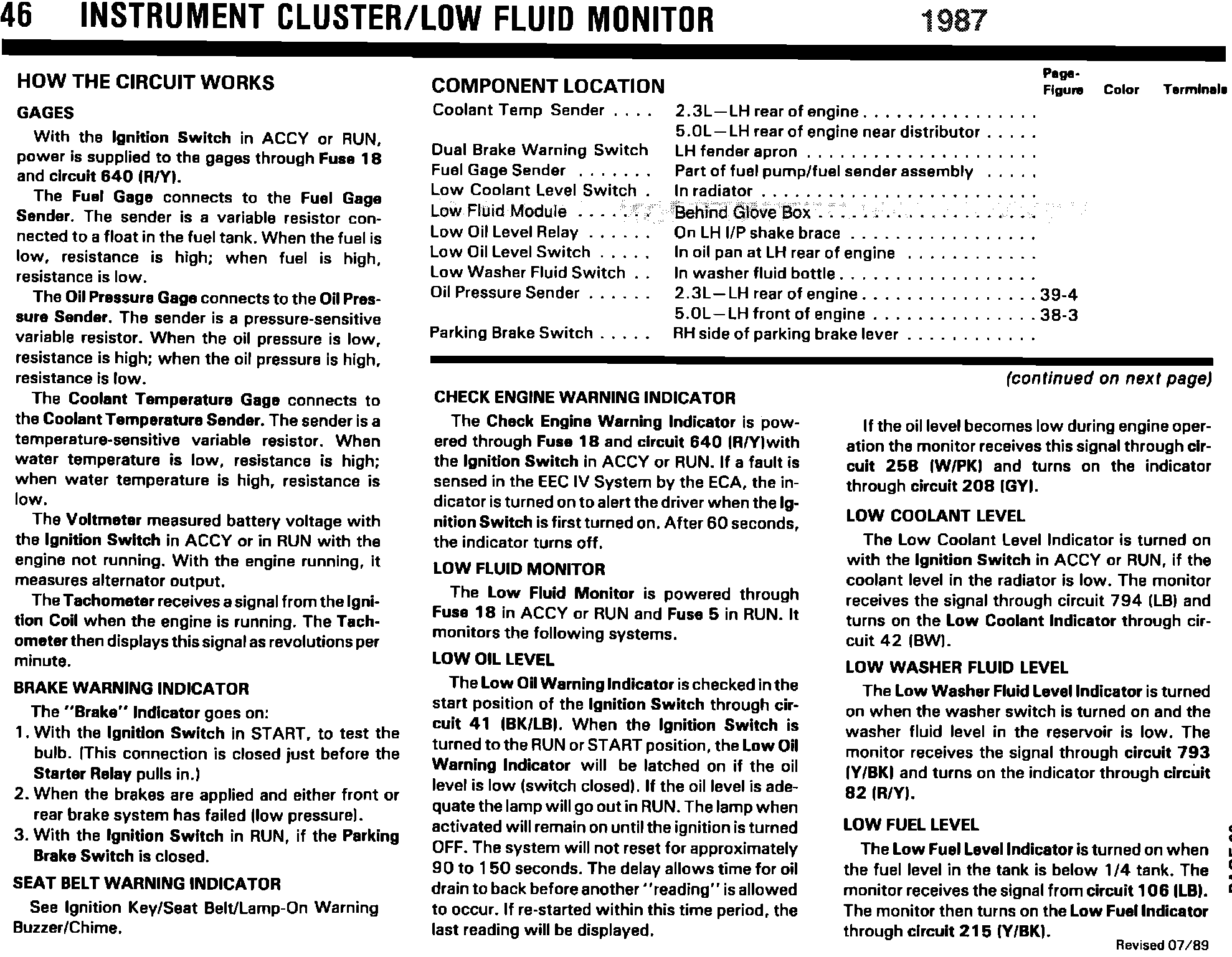

^ ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM) - 1987 - PAGE 46 - LOW FLUID MONITOR ADDED TO COMPONENT LOCATION TABLE

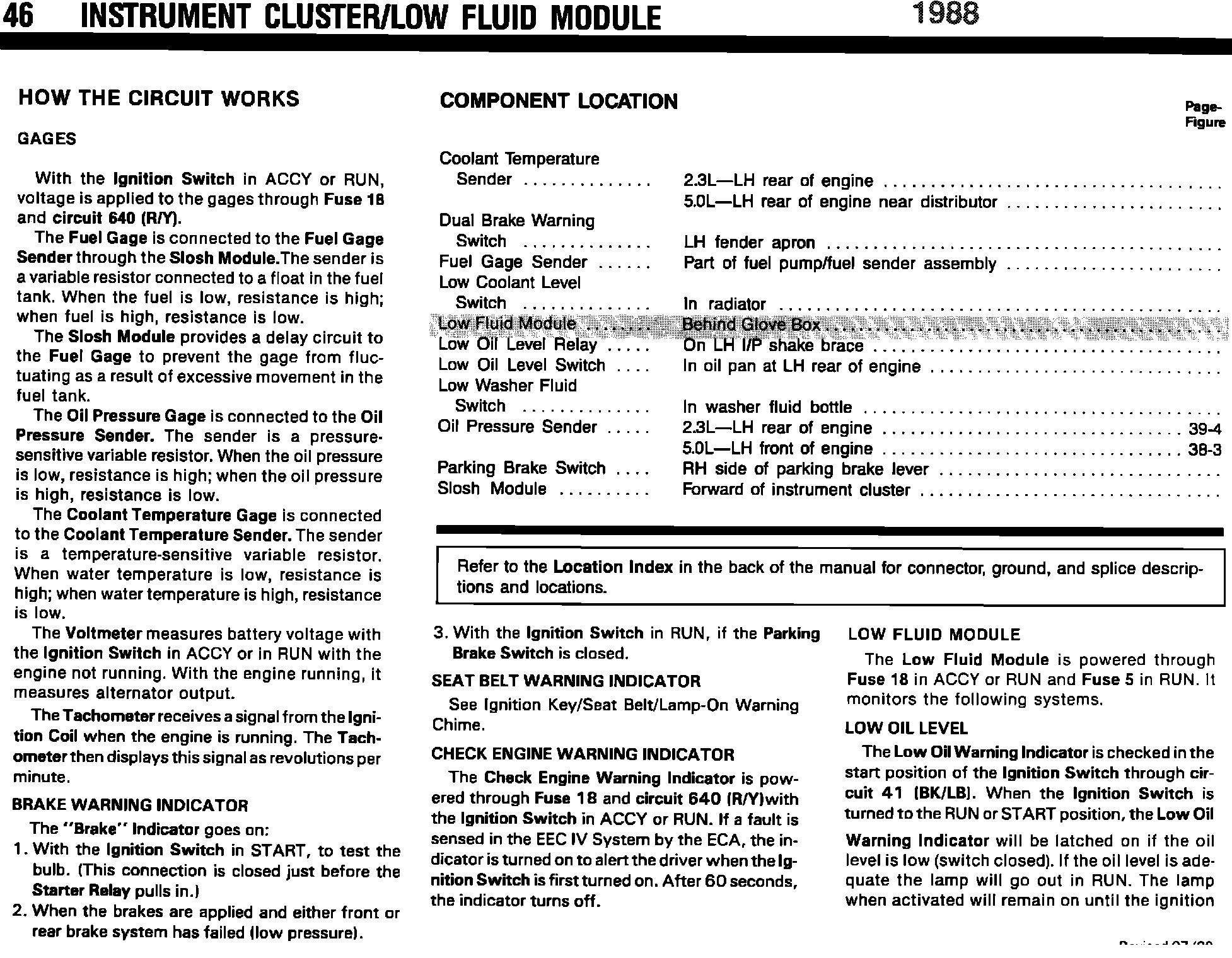

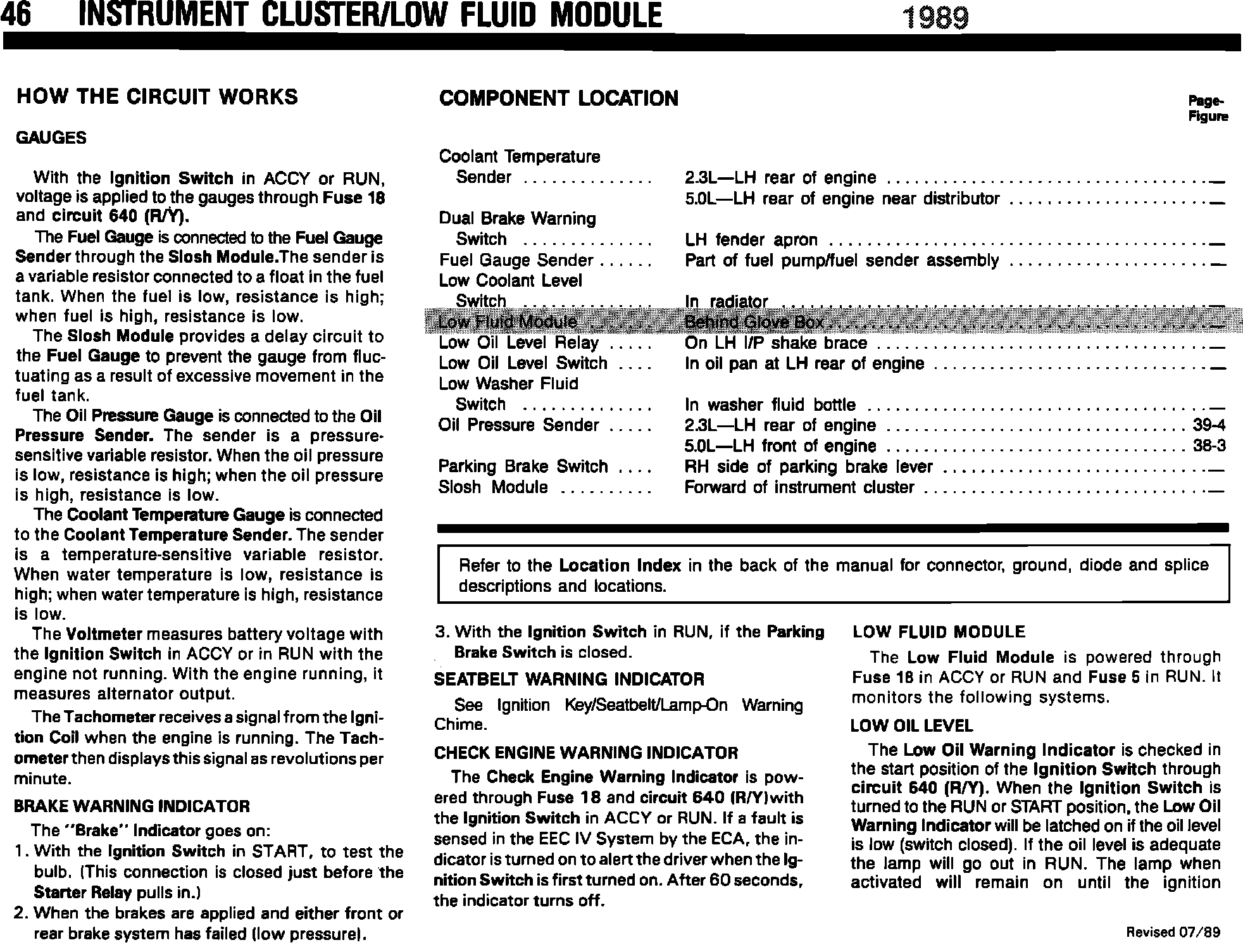

^ ELECTRICAL VACUUM TROUBLESHOOTING MANUALS (EVTM) - 1988 & 1989 - PAGE 46 - LOW FLUID MODULE IN COMPONENT LOCATION TABLE REVISED
Article No. 89-18A-6


















FORD: 1987-89 MUSTANG


ISSUE: The location of the Low Fluid Monitor is not listed in the Component Location table of the 1987 Mustang Electrical Vacuum Troubleshooting Manual, page 46. Also, the Component Location table on page 46 of the 1988 and 1989 Mustang-EVTM does not give the correct location for the Low Fluid Module.

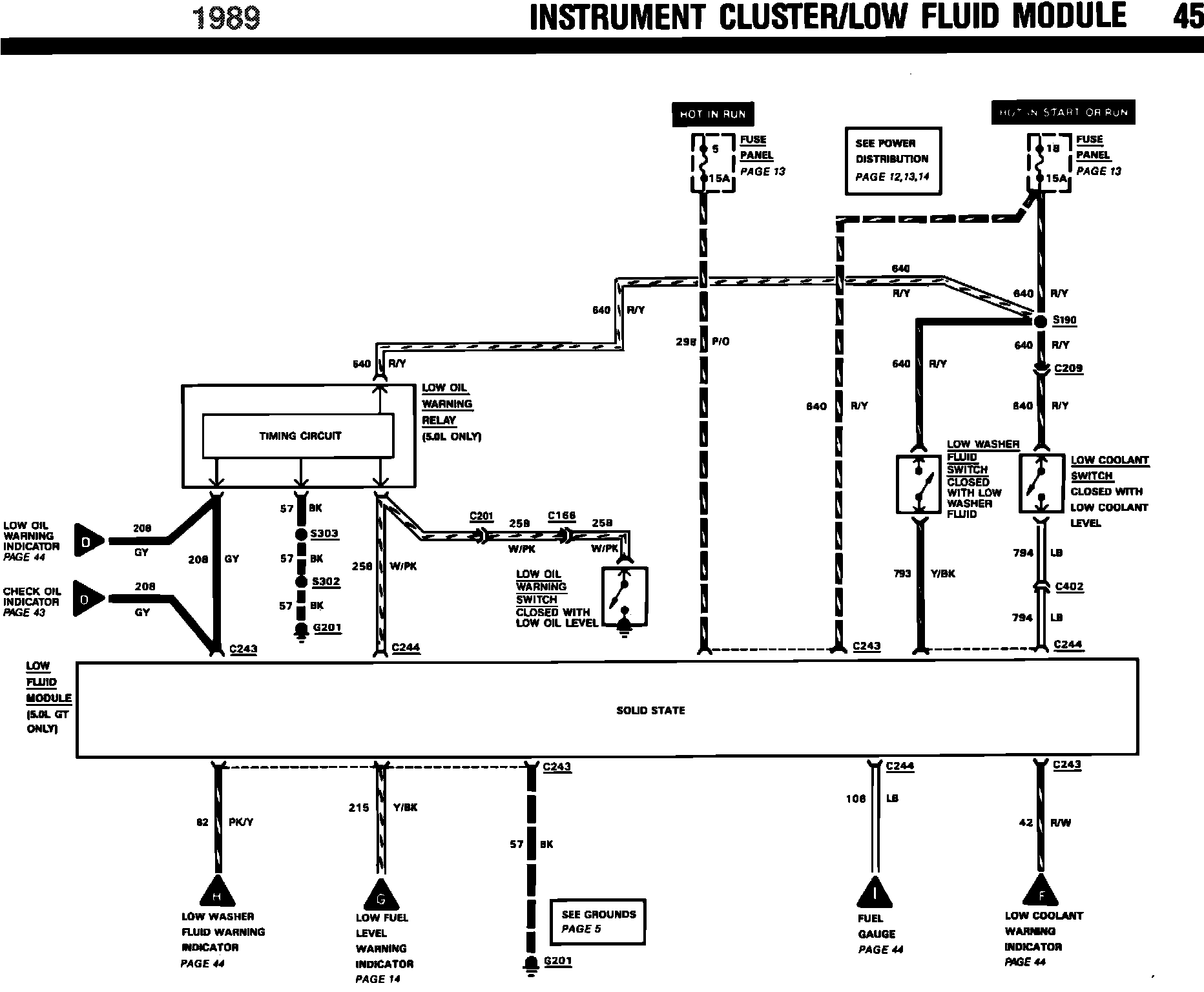

ACTION: Refer to the pages following this TSB article for the revised Component Location tables for page 46 of the 1987, 1988, and 1989 Mustang EVTMs.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 4800
