Home >> Ford >> 1989 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

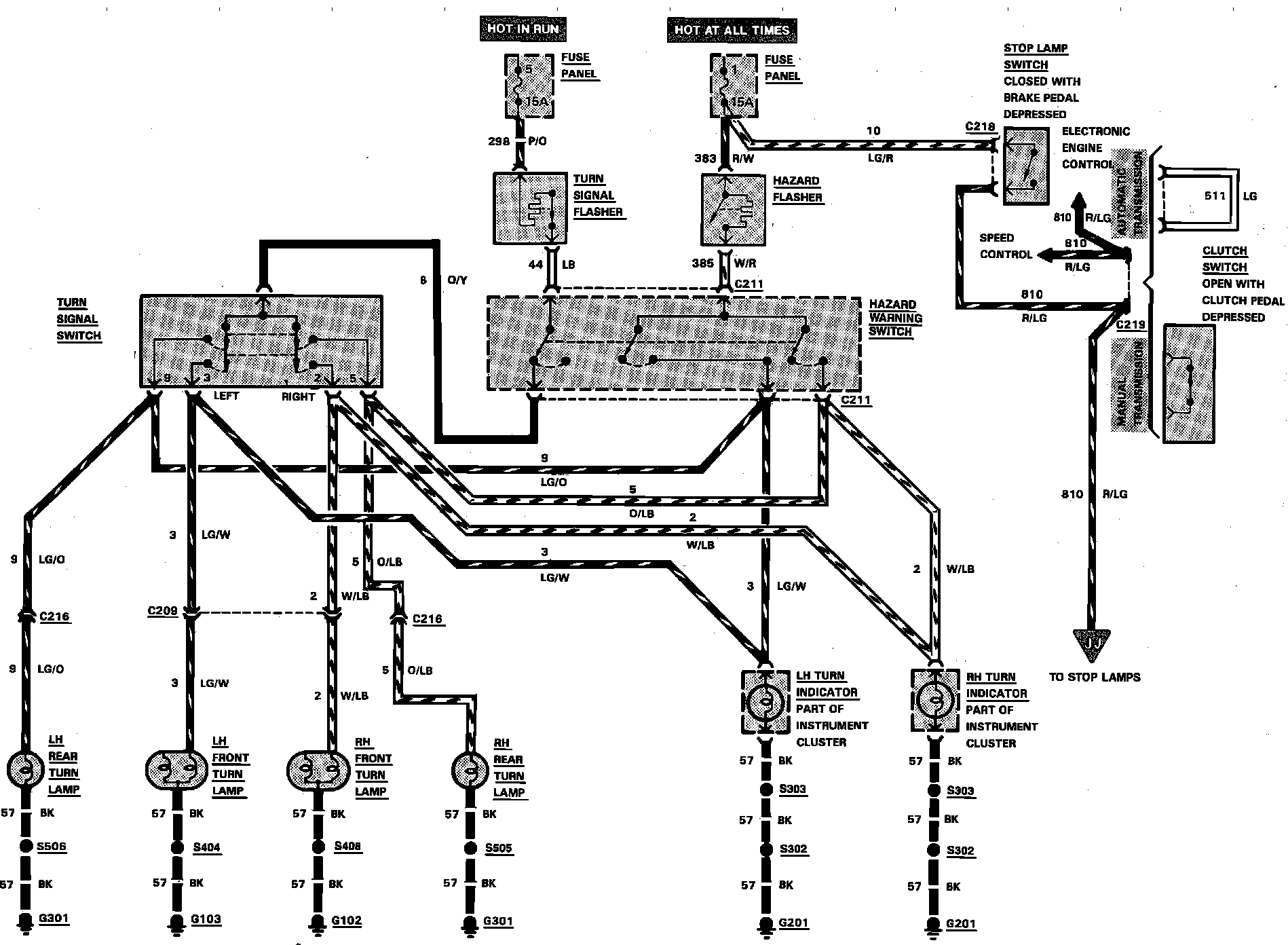

Hazard, Stop & Turn Lamp Wiring Circuit:

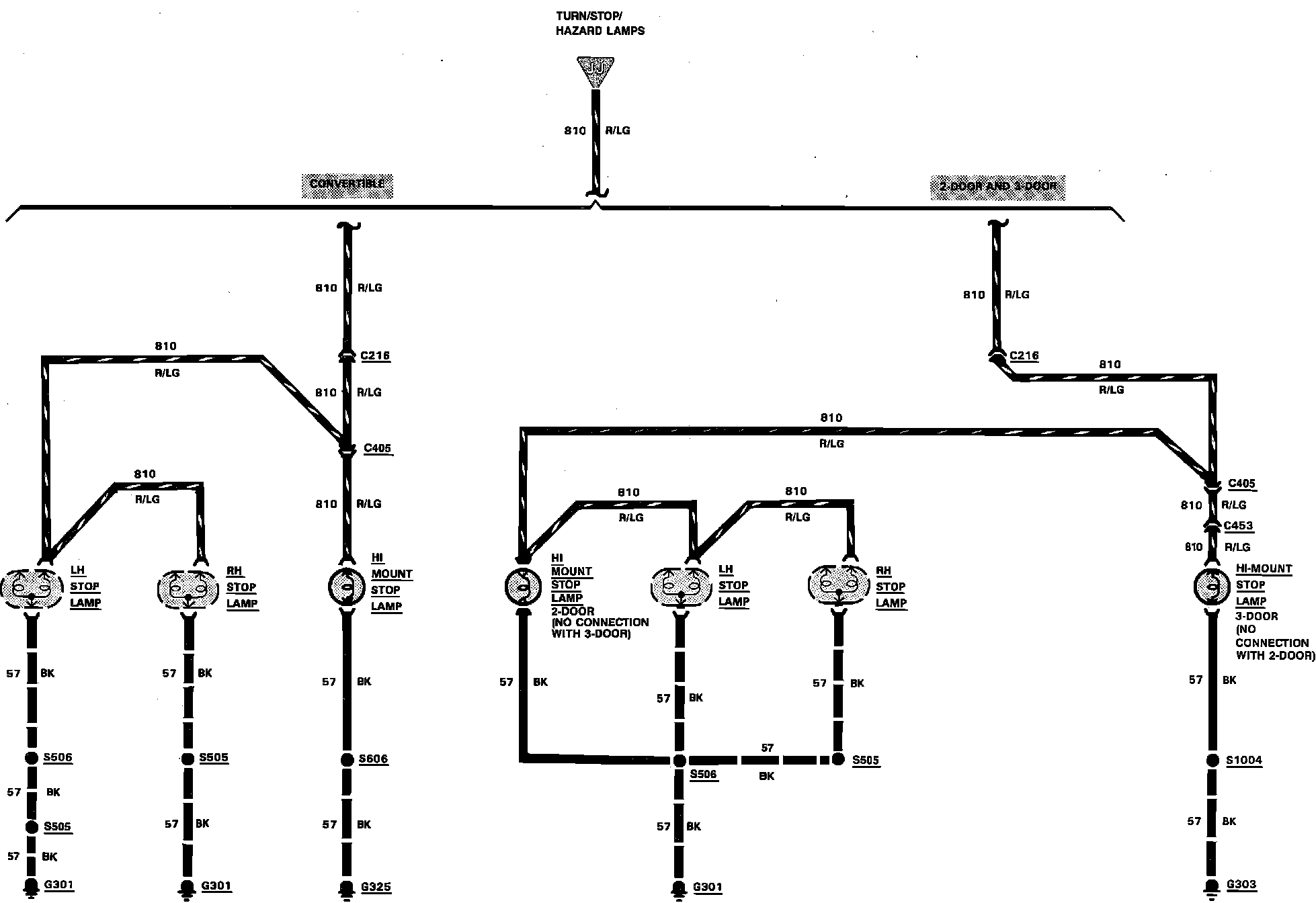

Stop Lamp Wiring Circuit:
