Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Mustang V8-302 5.0L HO
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G100 & G201
G100 & G201

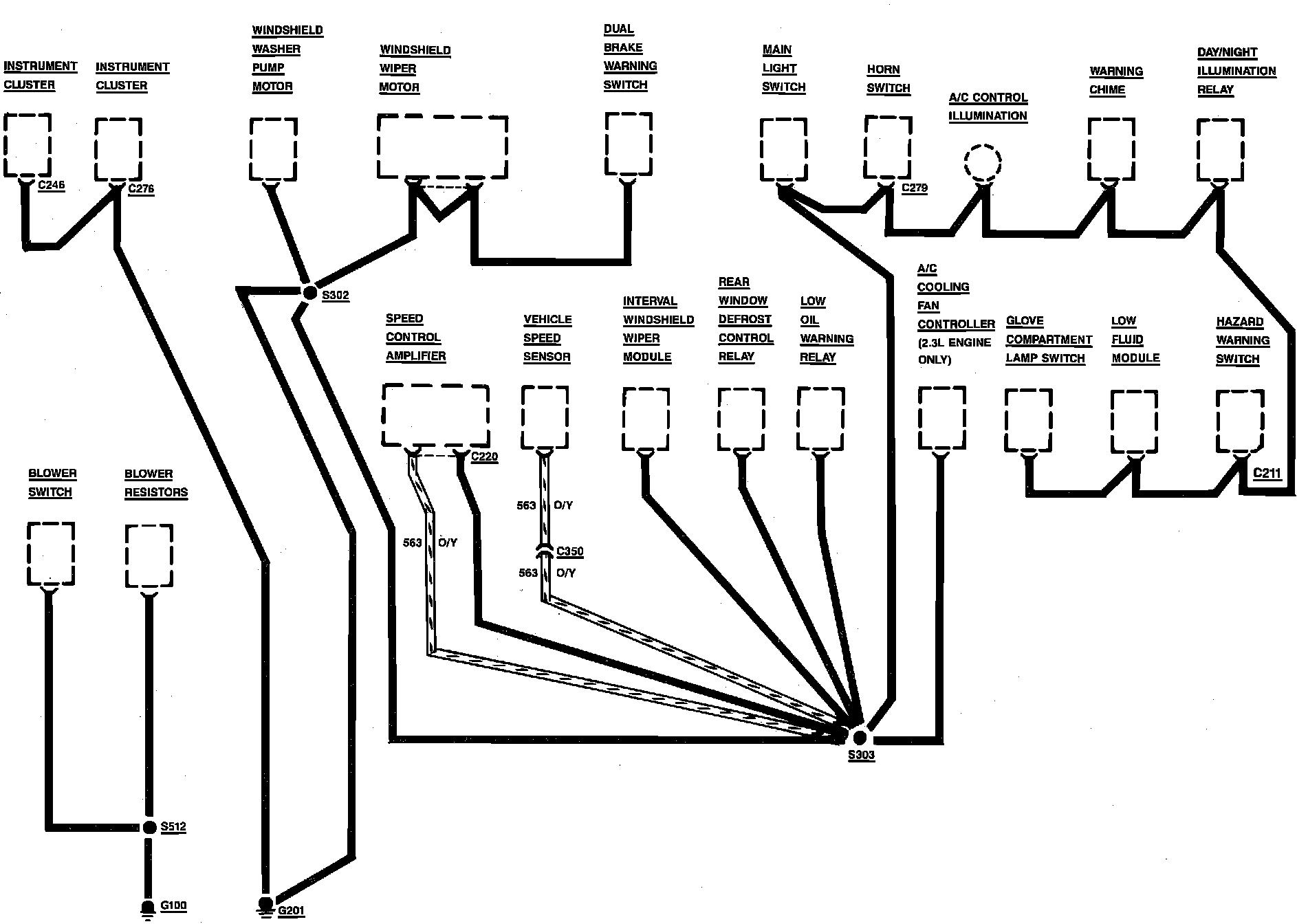

Ground Distribution. G100 & G201:
