Ford
>>
1989
>>
Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
SP6: Speed Control Switch Ground Check
SP6: Speed Control Switch Ground Check

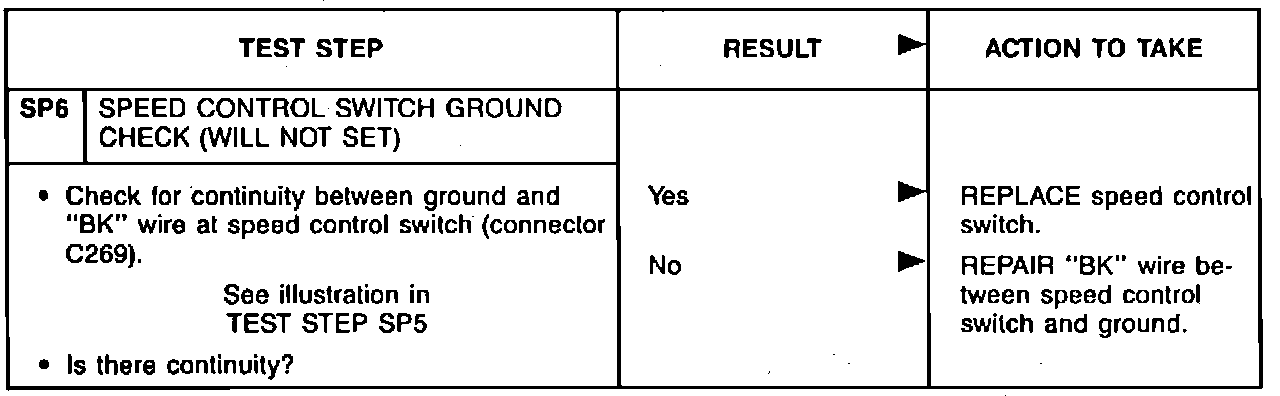

Fig. 77 Diagnosis and Testing (Part 6 Of 30):
