Brake Light Switch: Description and Operation

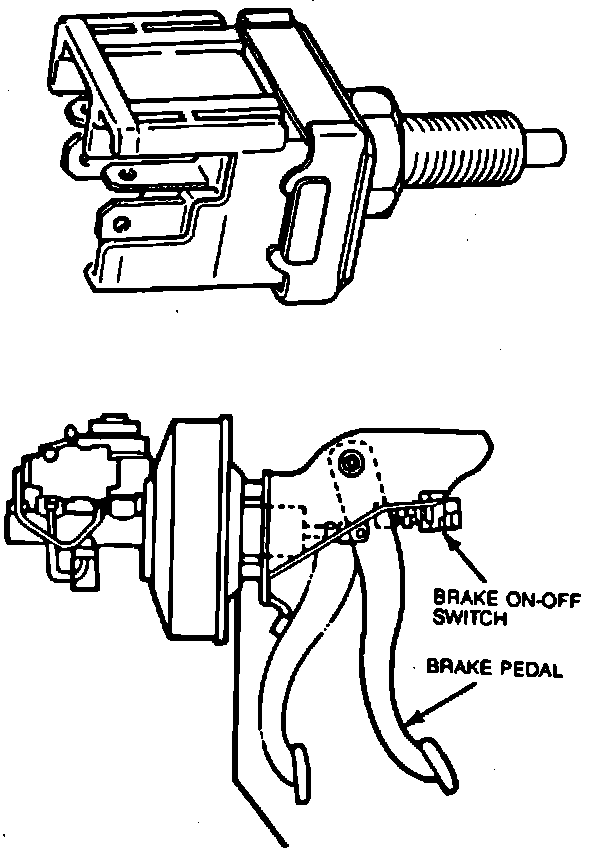

Fig. 2 Brake on-off switch:

The brake on/off switch detects braking operation (deceleration) and transmits a signal to the electronic control assembly (ECA). The signal from the brake on/off switch affects air/fuel ratio. The brake on/off switch is located on the brake pedal support assembly, Fig. 2.
