Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> A - No Start (Ignition Pulse) >> A2

A2

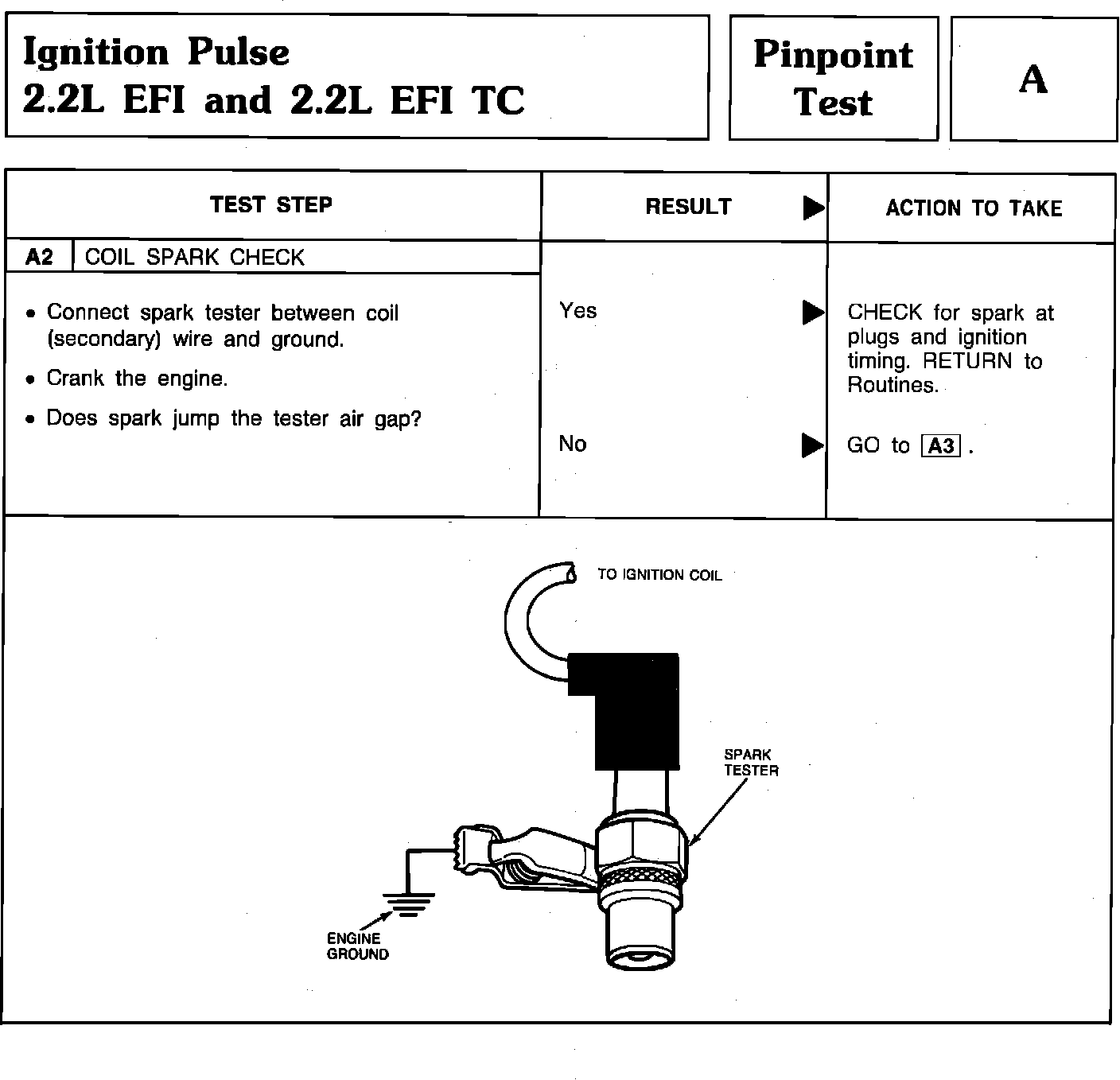

Pinpoint Test A2 - Ignition Pulse:
