Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Probe L4-133 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
HA - Fuel Control
>>
HA7 - HA9
HA7 - HA9

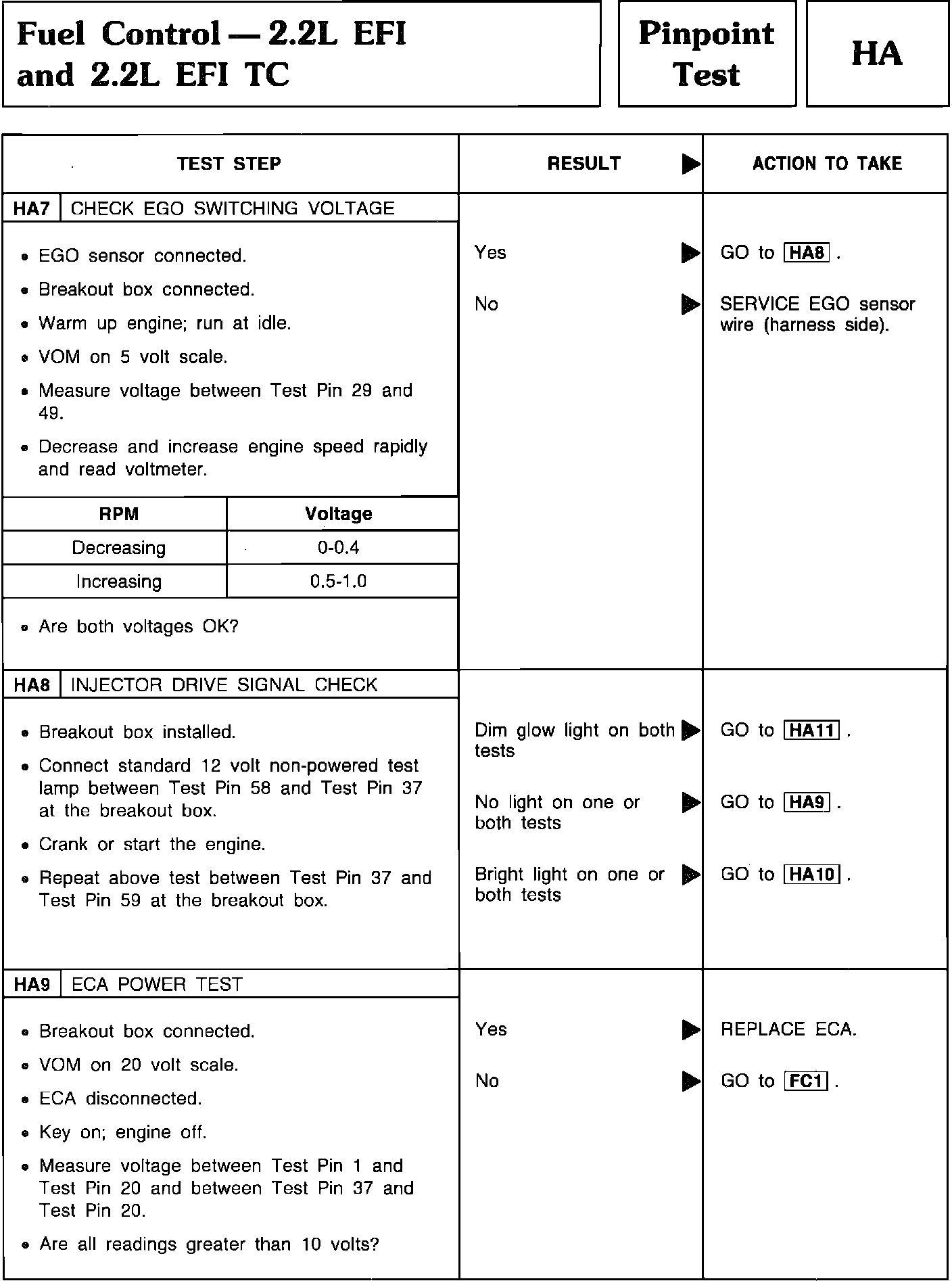

Pinpoint Test HA7 Thru HA9 - Fuel Control:
