Rear Seat Buckle

REMOVAL
1. Remove rear seat cushion.

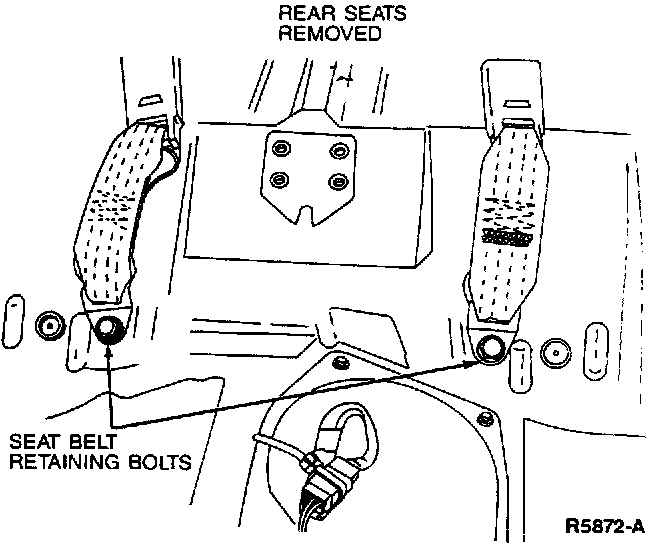

2. Remove bolt securing rear seat buckle to the floor.
3. Remove rear seat buckle assembly.

INSTALLATION
1. Position rear seat buckle assembly onto floor.
2. Install seat belt retaining bolt. Tighten 39-55 Nm (28-39 ft lbs).
3. Install rear seat cushion.
