Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1989
>>
Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Cruise Control Switch
Cruise Control Switch

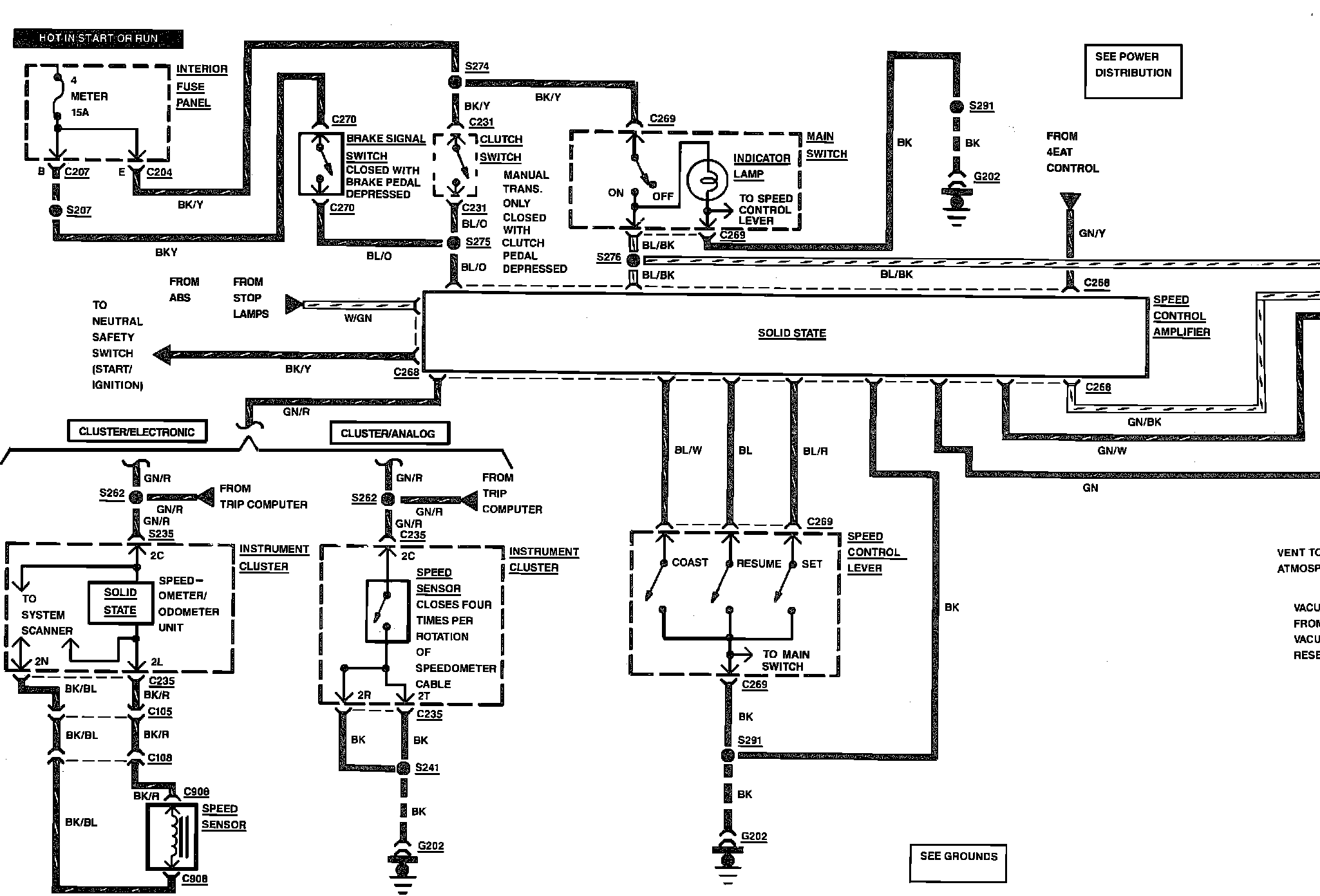

�[� Speed Controls Wiring Circuit:
