Ignition System - Manual Revision

89ford18

SHOP MANUAL - 1989 - SECTION 23-01 - IGNITION SYSTEM - DIAGNOSIS AND TESTING PROCEDURE - TEST STEP IGN9 REVISED

Article No. 89-12A-20

FORD: 1989 PROBE


ISSUE: Test Step IGN9 in the Diagnosis and Testing procedure of the Ignition System on page 23-01-11 of the 1989 Probe Shop Manual has been revised.

ACTION: Refer to the page following this TSB article for the revised procedure and illustration in Test Step IGN9. This information should be inserted in your 1989 Probe Shop Manual, page 23-01-11.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 680000
1989

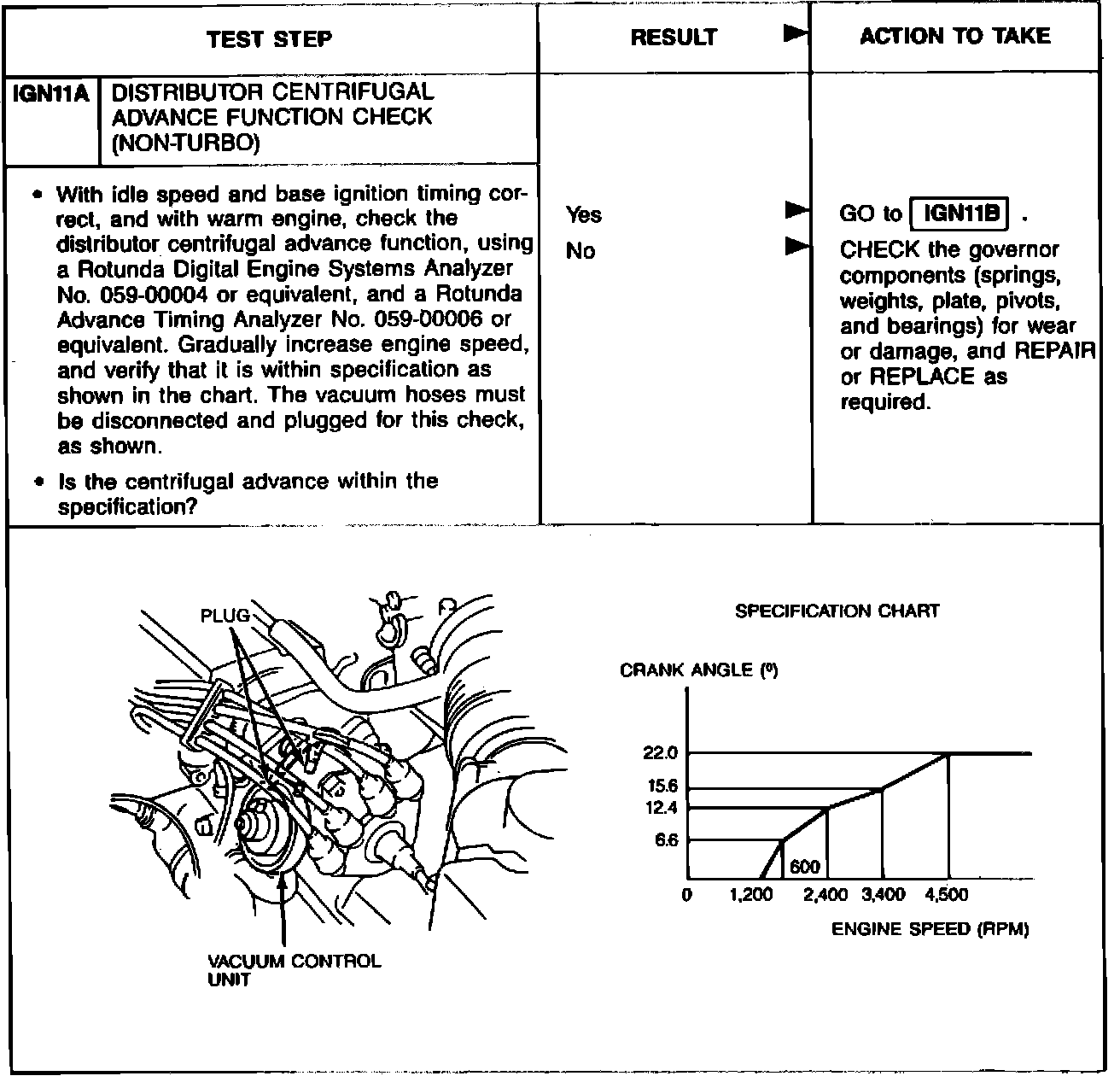

23-01-11 Ignition System 23-01-11



DIAGNOSIS AND TESTING (Continued)



1989
23-01-12 Ignition System 23-01-12

DIAGNOSIS AND TESTING (Continued)
