Test 3 - DIS Module, Harness & Sensor
>>
Steps 1 Through 7
Steps 1 Through 7

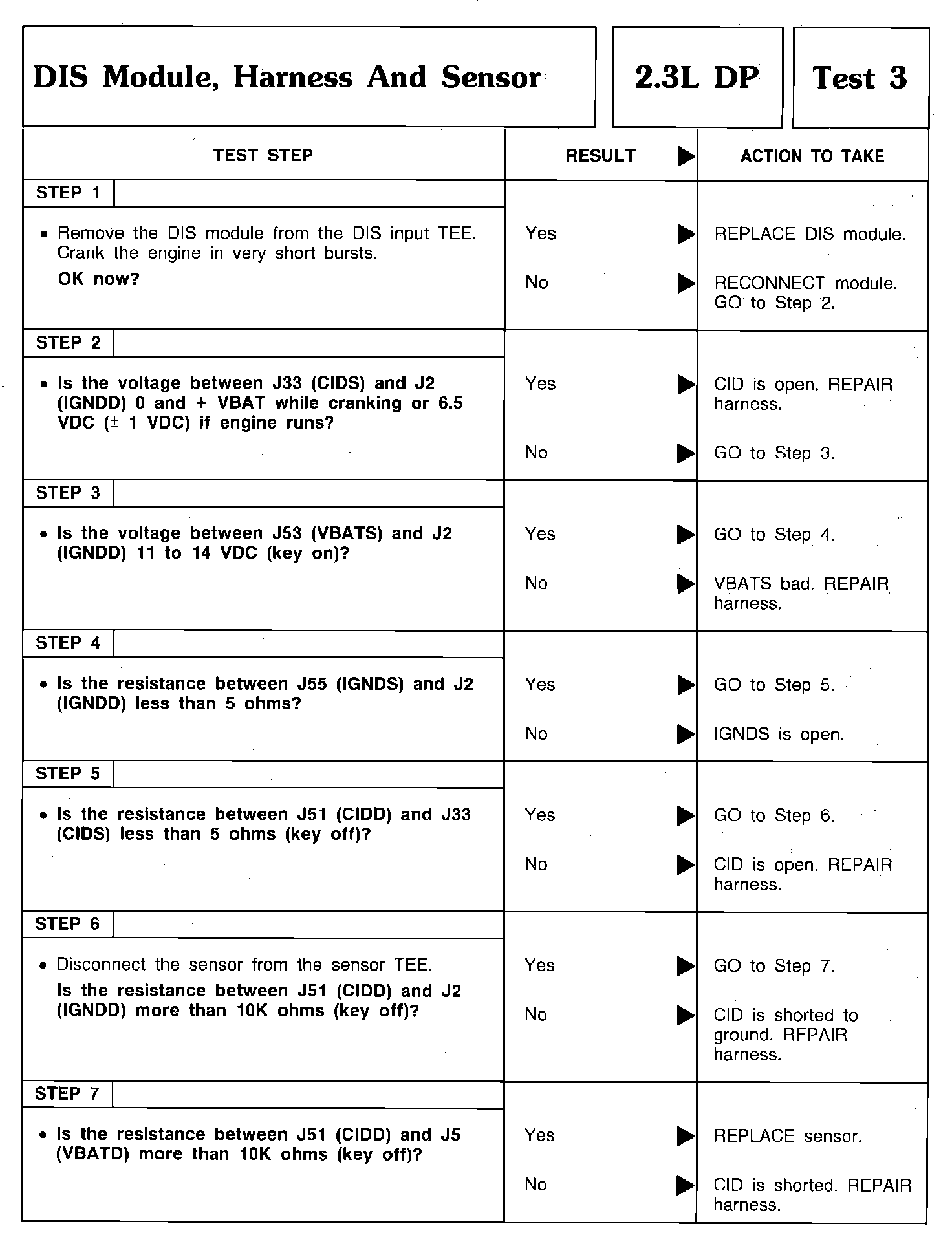

DIS Module, Harness & Sensor Steps 1 thru 7:
