T - Transmission - AXOD
>>

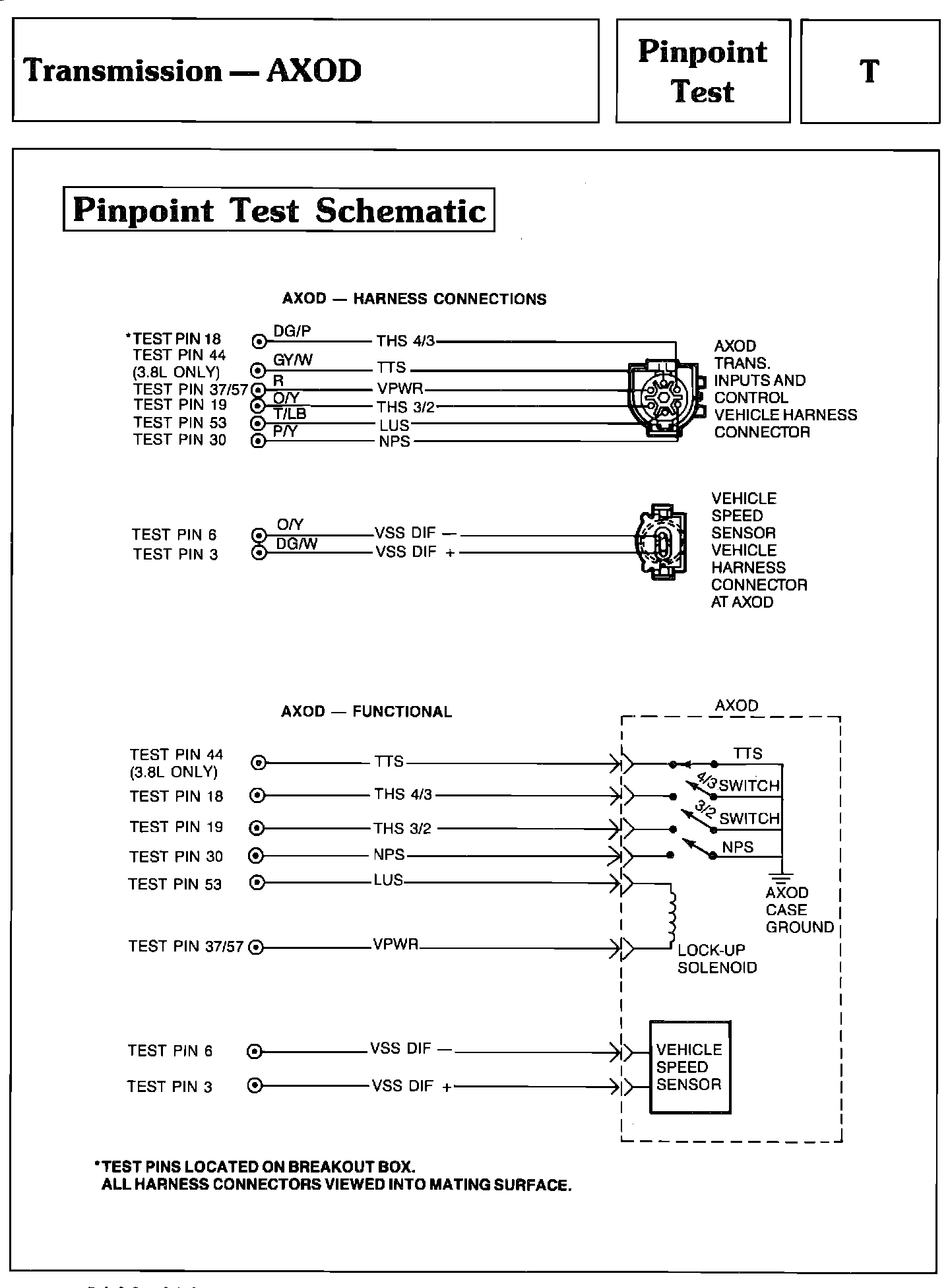

T - Wiring Diagram
T - Wiring Diagram
Pinpoint Test T - Transmission-AXOD:
