X - Wiring Diagram

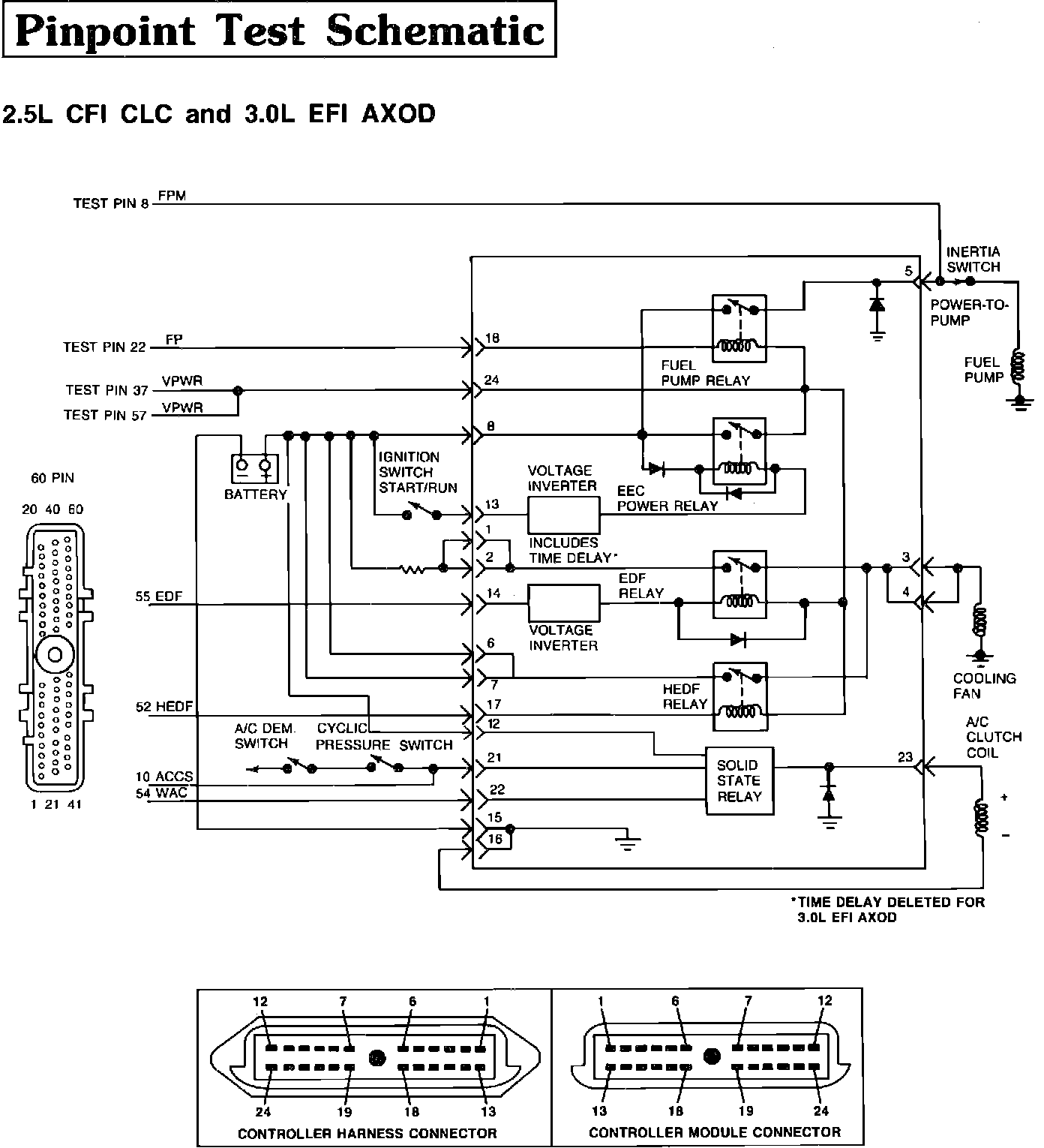

Pinpoint Test X Electrical Schematic - Integrated Controller:



Pinpoint Test X Electrical Schematic - Integrated Controller:
