Trailer Tow Relay Module - Location Clarification

Article No.
93-19B-23

09/29/93

ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1990 - PAGES 95-2 AND 151-12 - TRAILER TOW RELAY MODULE LOCATION CLARIFIED

LIGHT TRUCK:
1990 AEROSTAR

ISSUE:

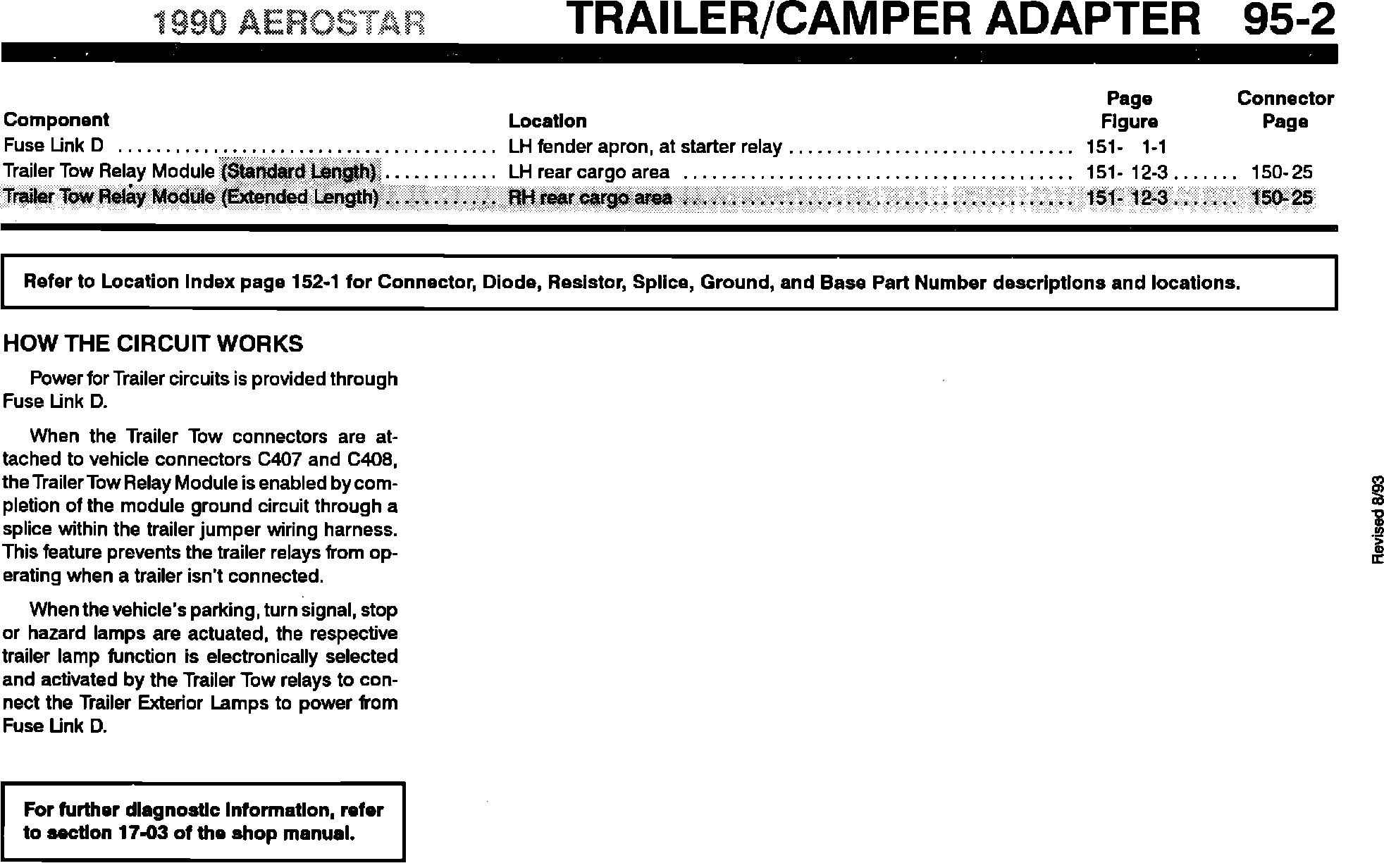

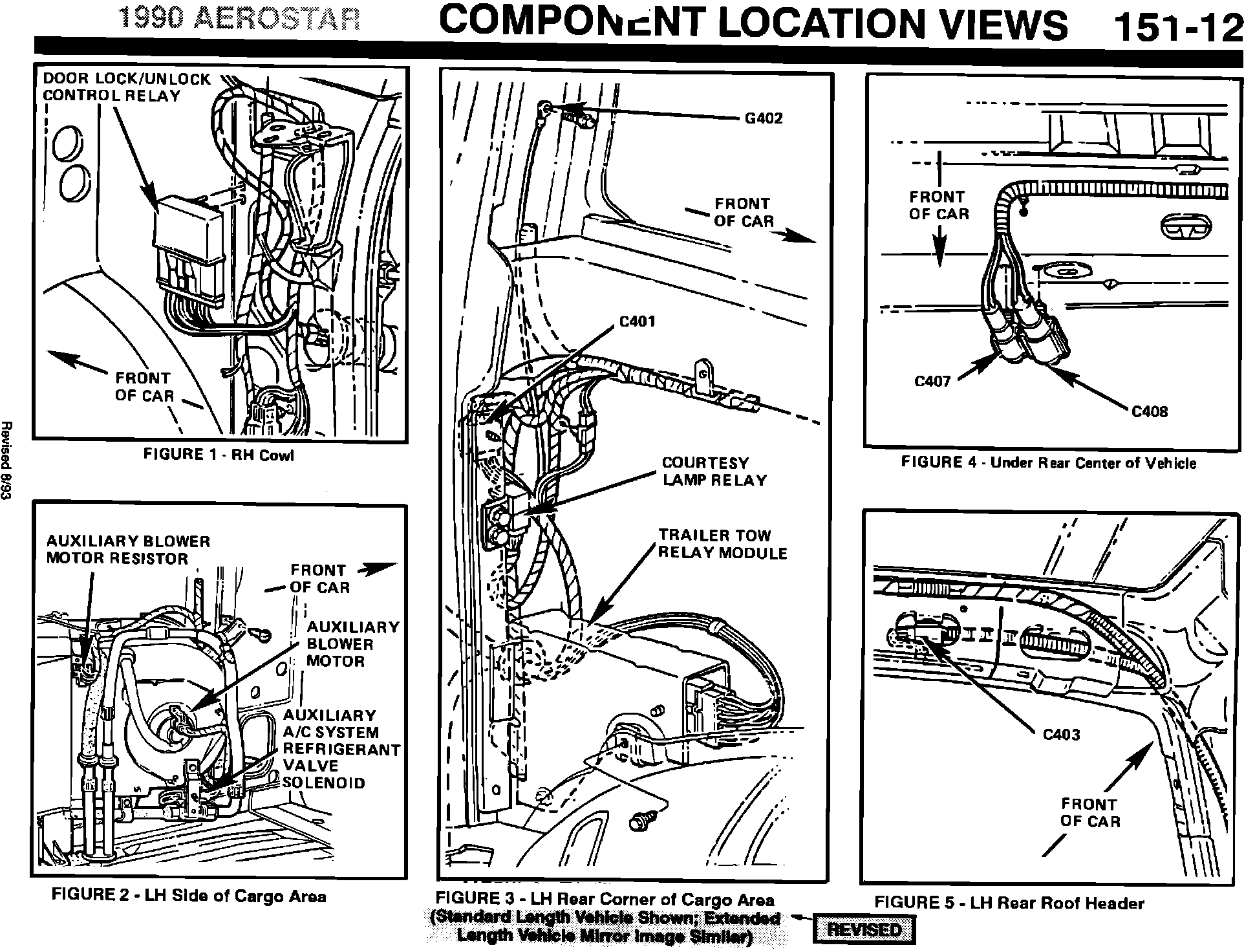

Location of the Trailer Tow Relay Module is shown correctly for standard length vehicles, but it is incorrect for extended length vehicles. The 1990 Aerostar EVTM is affected on Pages 95-2 and 151-12.








ACTION:
Refer to the pages in this TSB article for the revised information.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
