Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Aerostar 2WD V6-183 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Windshield Washer Motor
>>
Rear
Rear

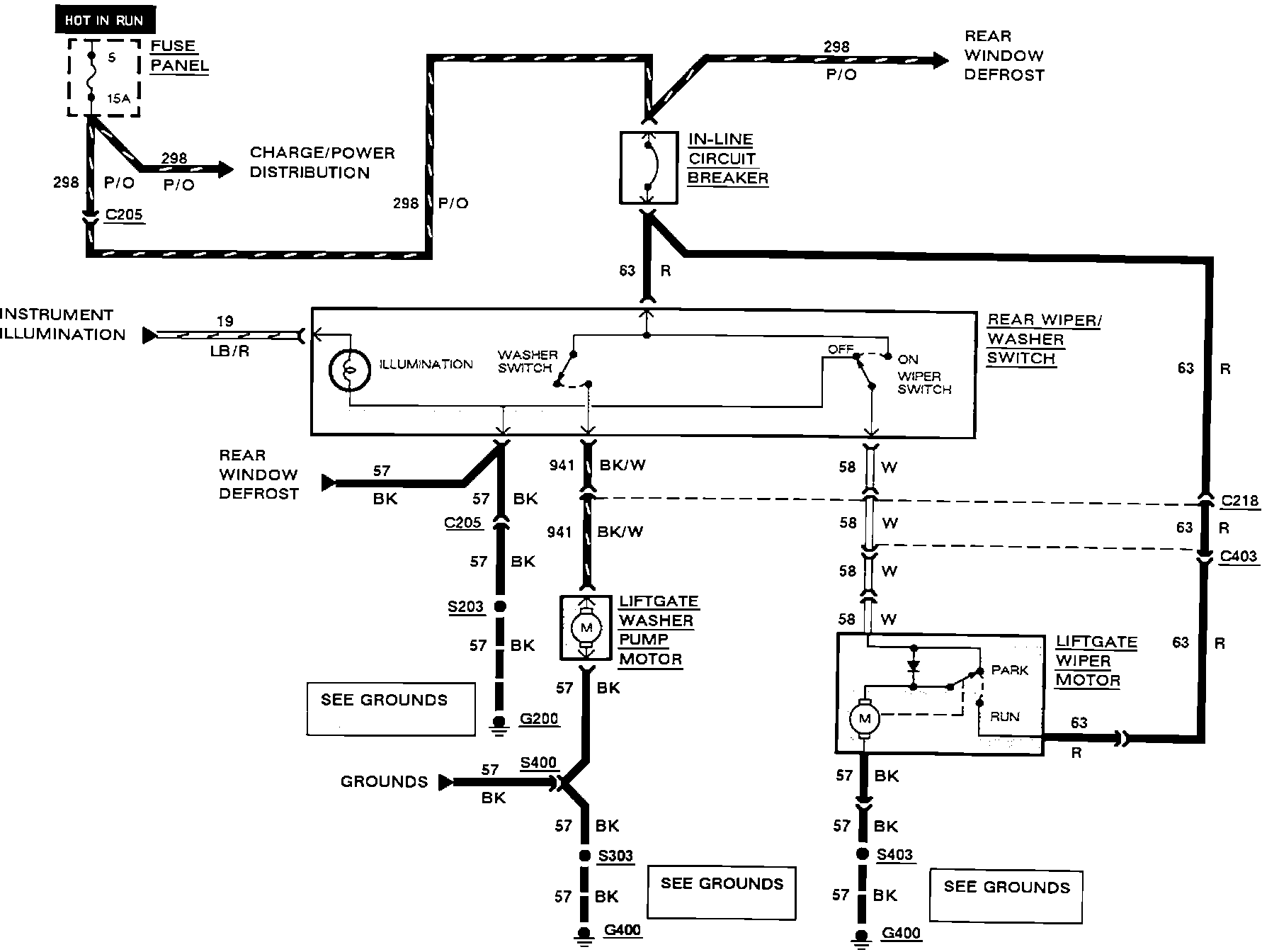

Windshield Wiper/Washer. Rear:
