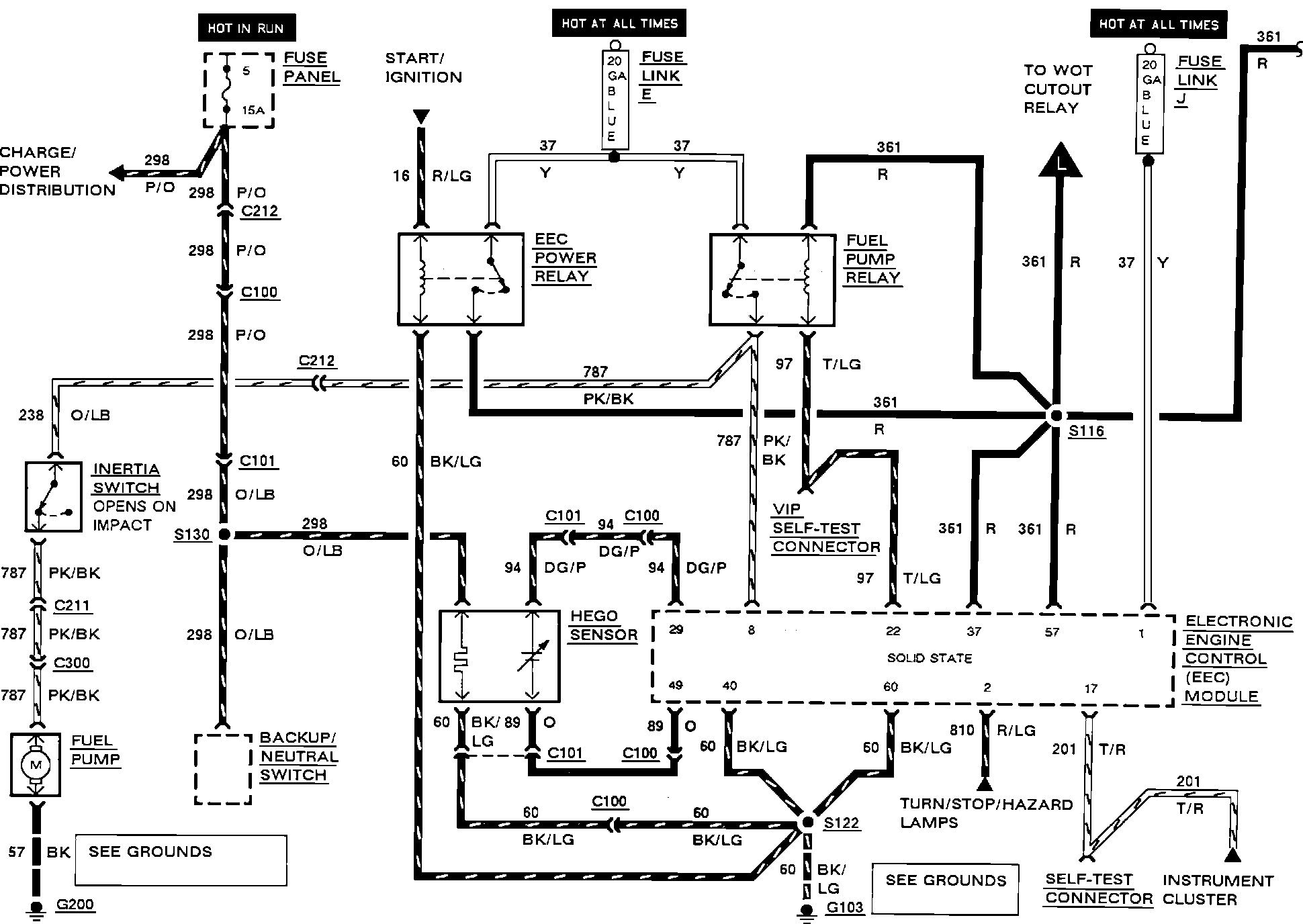

Electronic Engine Control. 3.0L Engine:

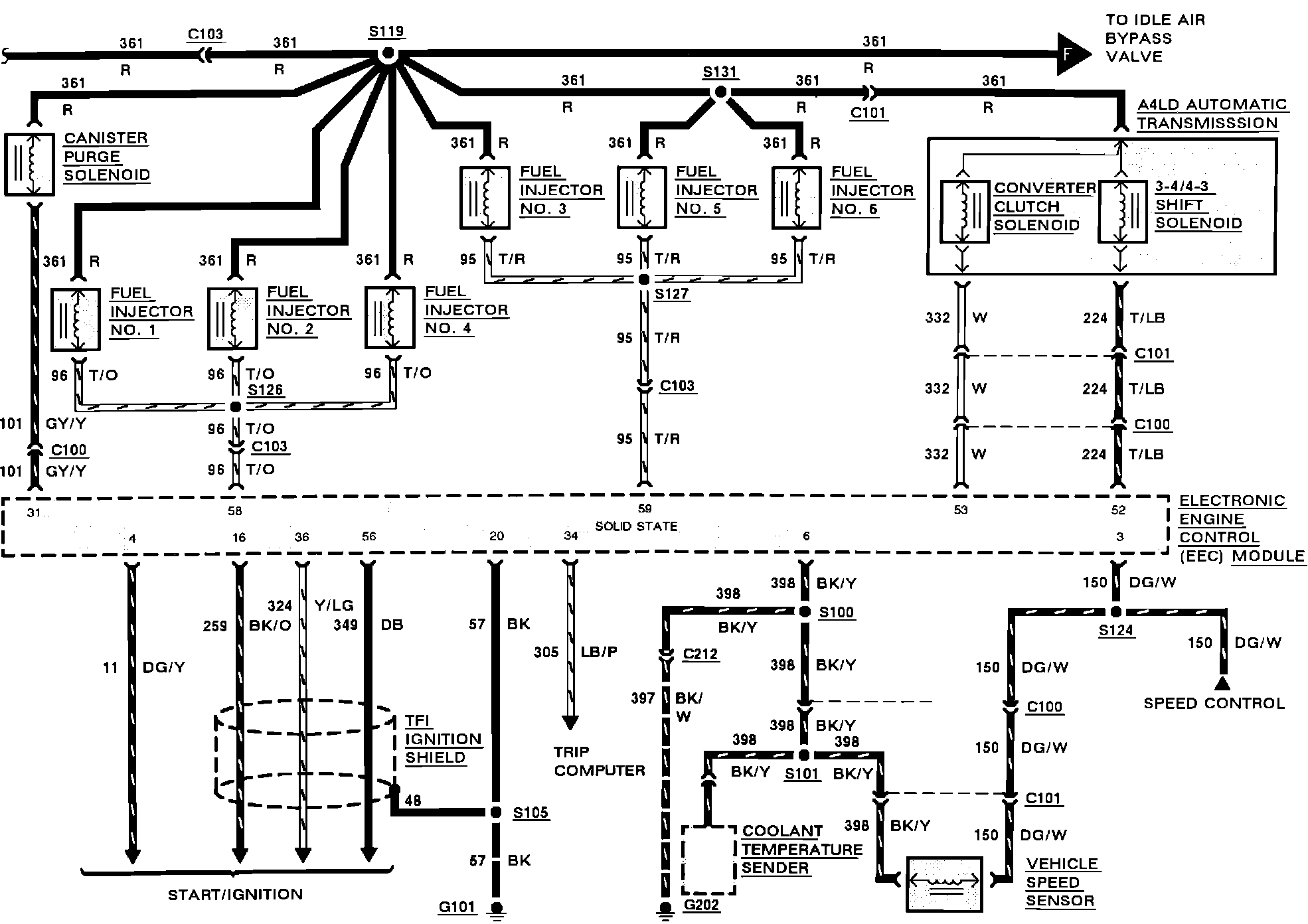

Electronic Engine Control. 3.0L Engine:

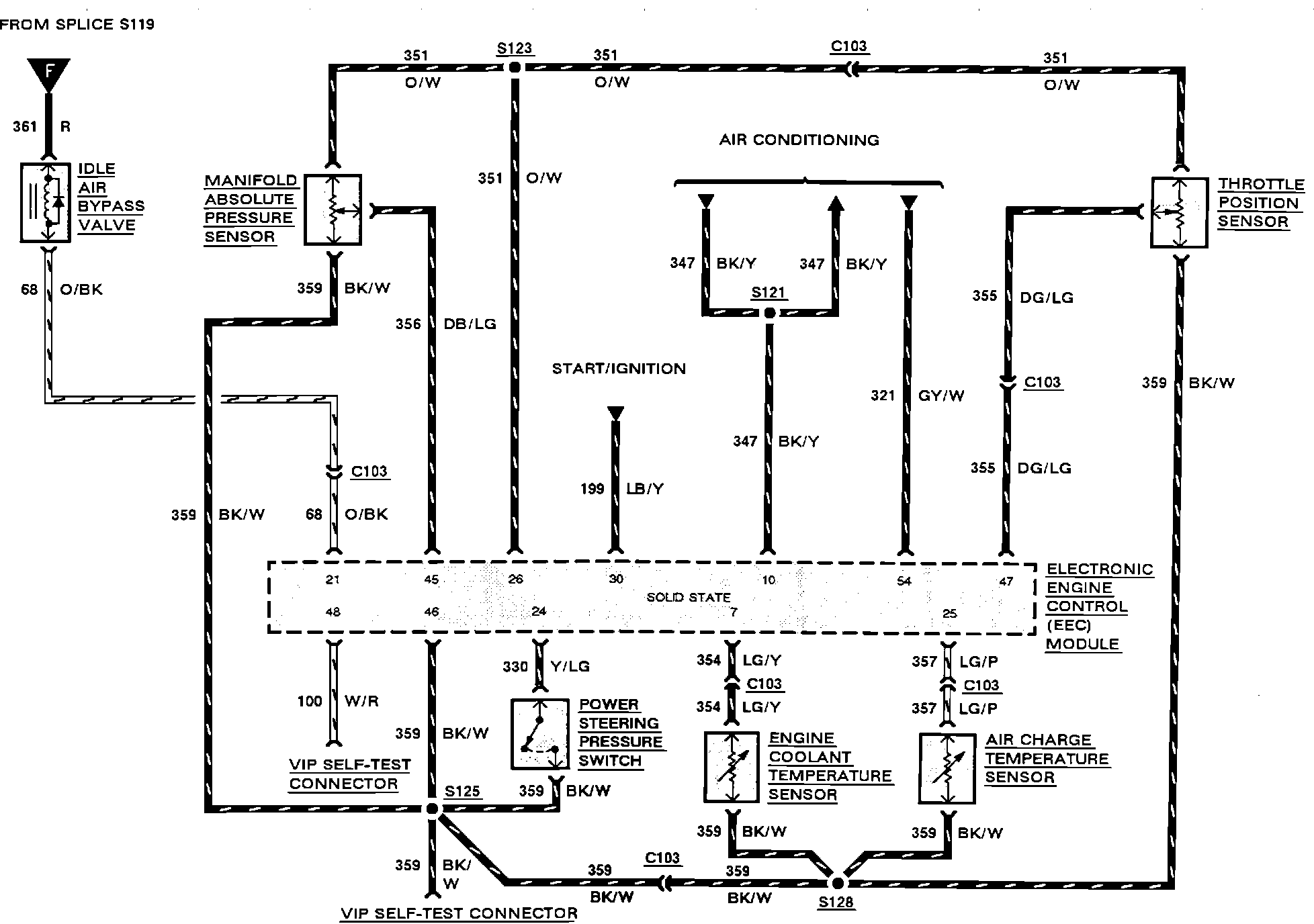

Electronic Engine Control. 3.0L Engine:
