Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Country Squire V8-302 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
T - Transmission - AXOD
>>
T50 - T51
T50 - T51

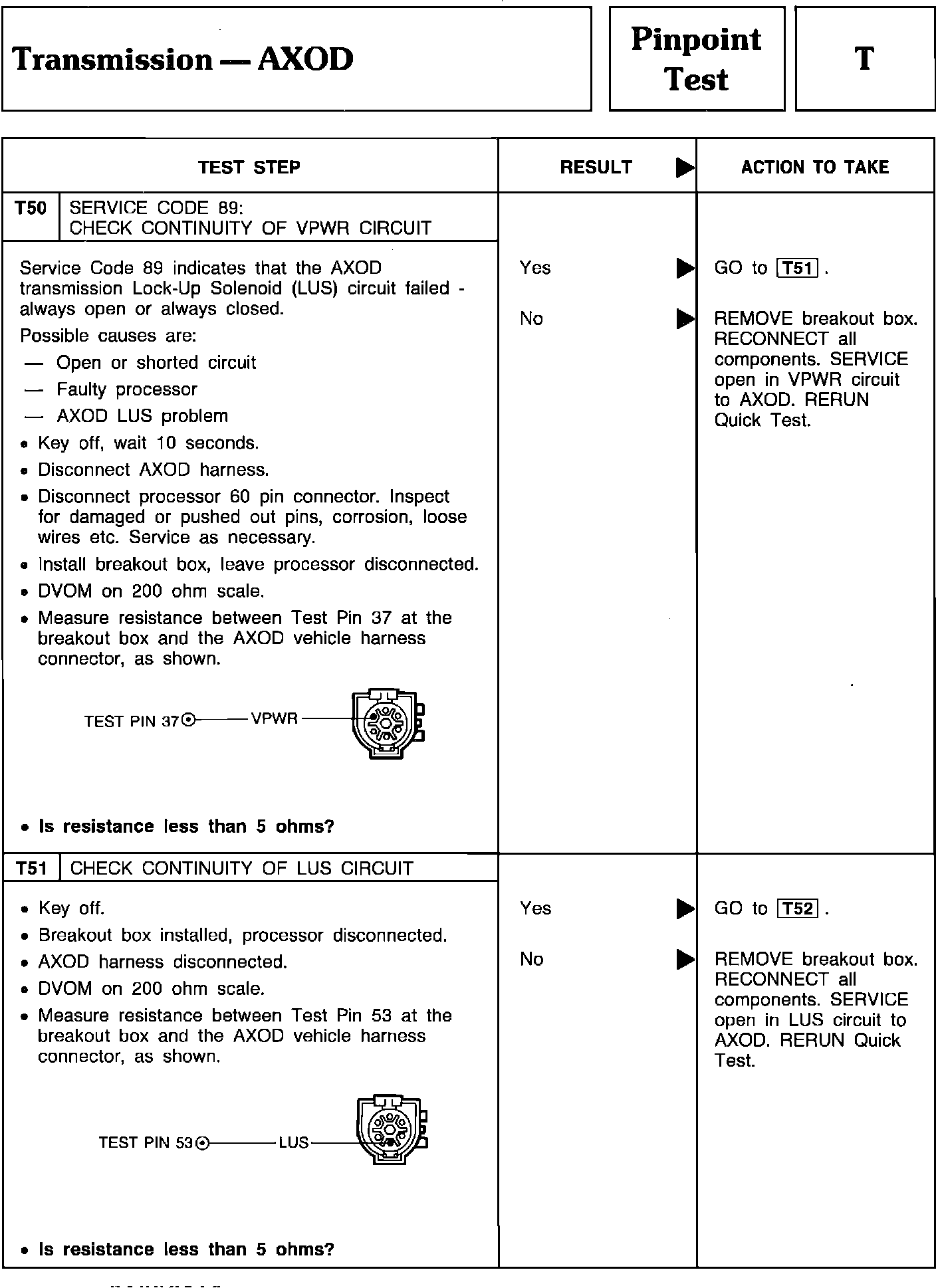

Pinpoint Test T50 & T51 - Transmission-AXOD:
