Home >> Ford >> 1990 >> E 150 Van V8-302 5.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 2 of 2

Part 2 of 2

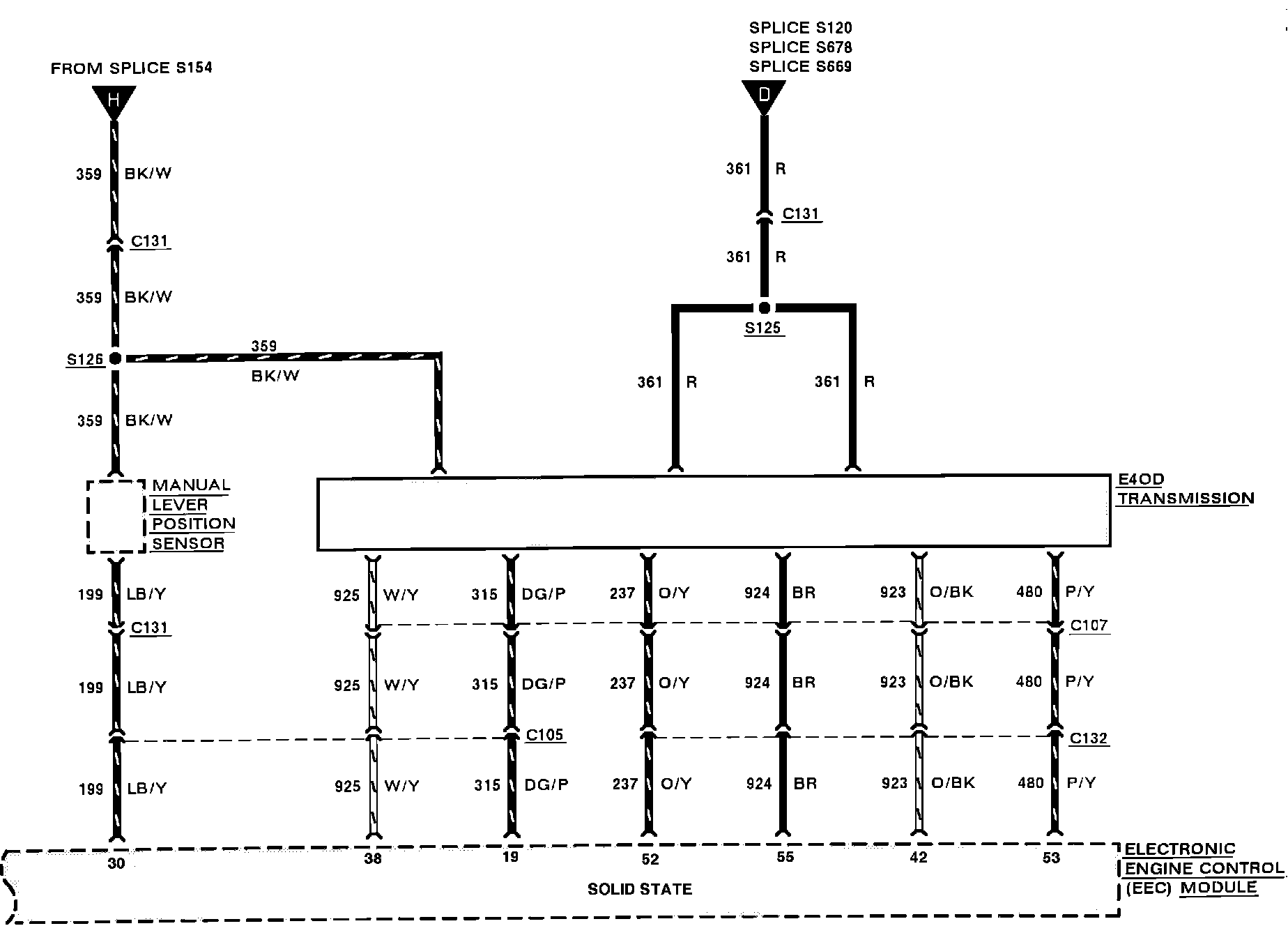

Transmission Control:
