Front

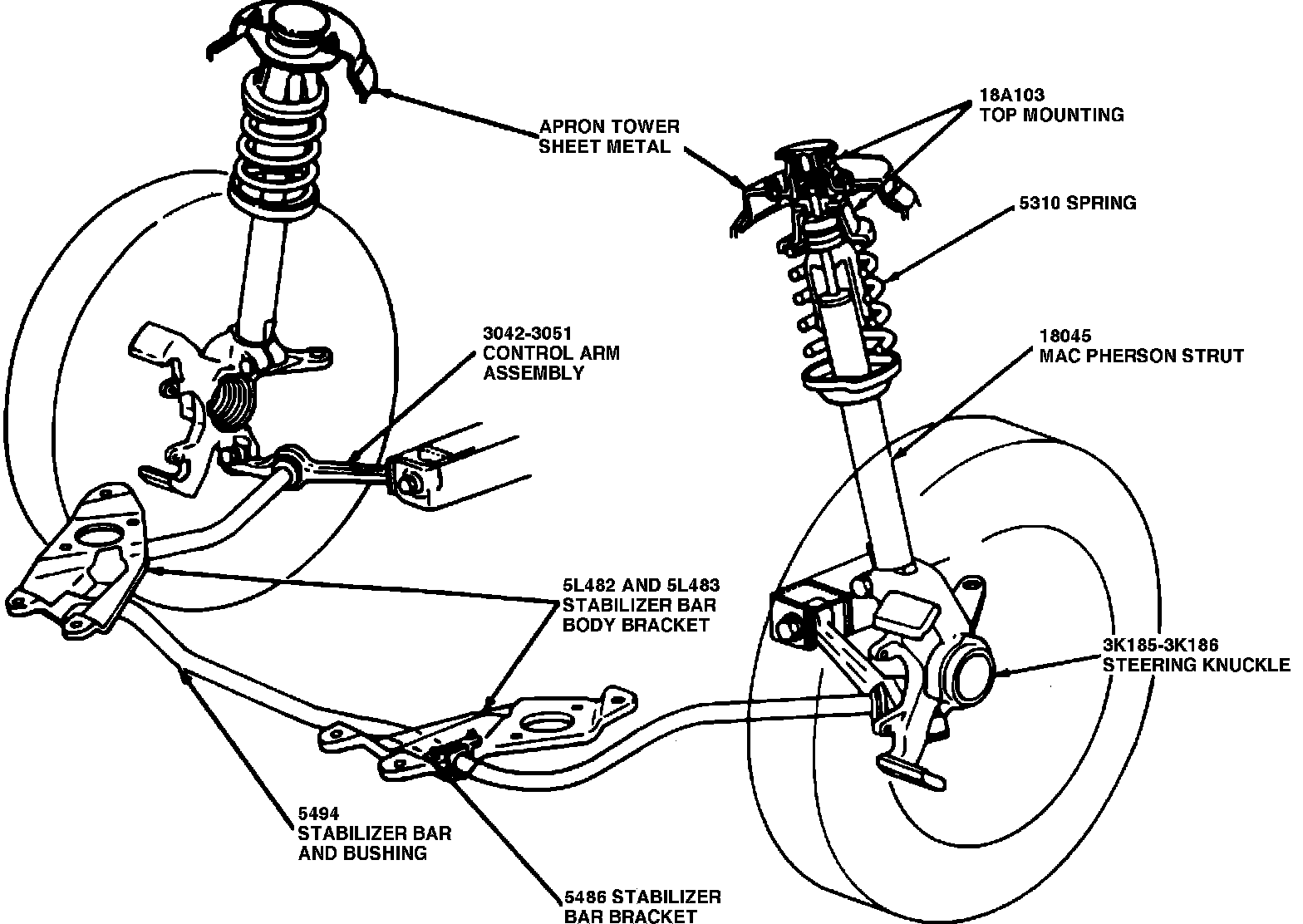

Fig. 1 Front Suspension:

These vehicles use a MacPherson type front suspension with the vertical shock absorber struts attached to the upper fender reinforcements and the steering knuckle, Fig. 1. The lower control arms are attached inboard to a crossmember and outboard to the steering knuckle through a ball joint to provide lower steering knuckle position.
