Parking Mechanism

WITH E4OD

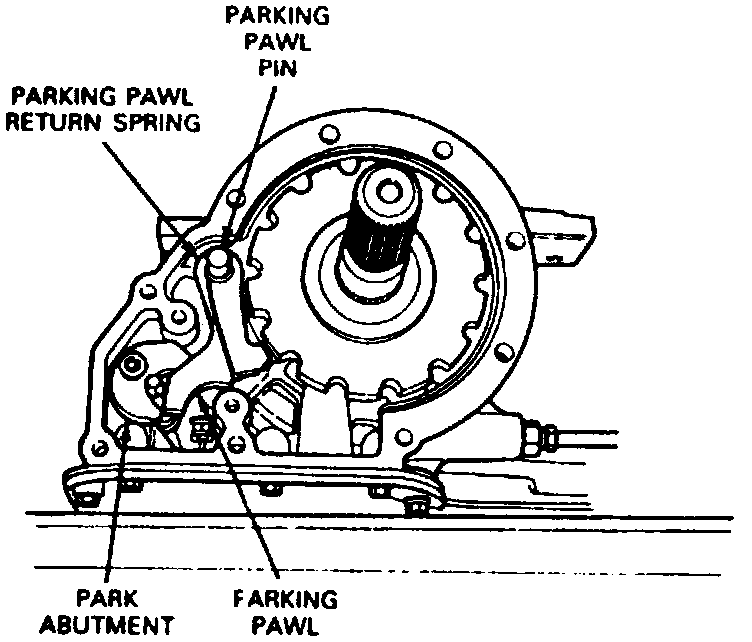

REMOVAL
1. Remove extension housing.
2. Remove two attaching bolts from park rod guide plate.
3. Remove parking pawl, return spring, and pin from case.

Removing Parking Pawl Abutment:

4. Remove Torx head bolt and parking pawl abutment.

INSTALLATION
1. Reverse procedure to install, noting the following:
a. Ensure return spring end rests on inside surface of case.
b. Torque Torx head bolt to 16-20 ft lbs.
c. Ensure plate dimple is facing inward.
d. Torque park rod guide plate attaching bolts to 16-20 ft lbs.
