Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
F 250 2WD Pickup V8-7.3L DSL
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
Fuse Block: Locations

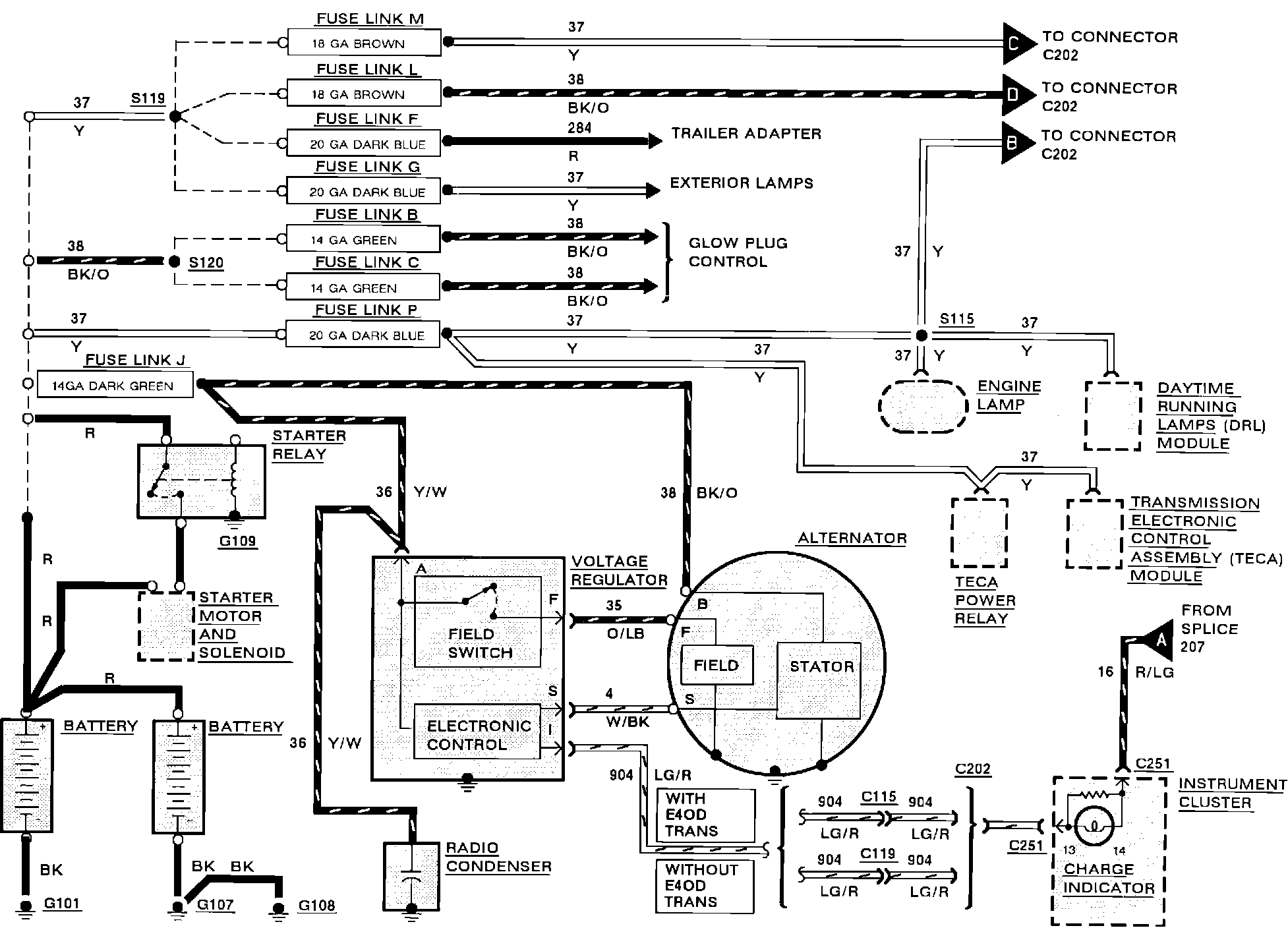

Charging System & Power Distribution. Diesel Engines:
Charging System & Power Distribution. Diesel Engines:

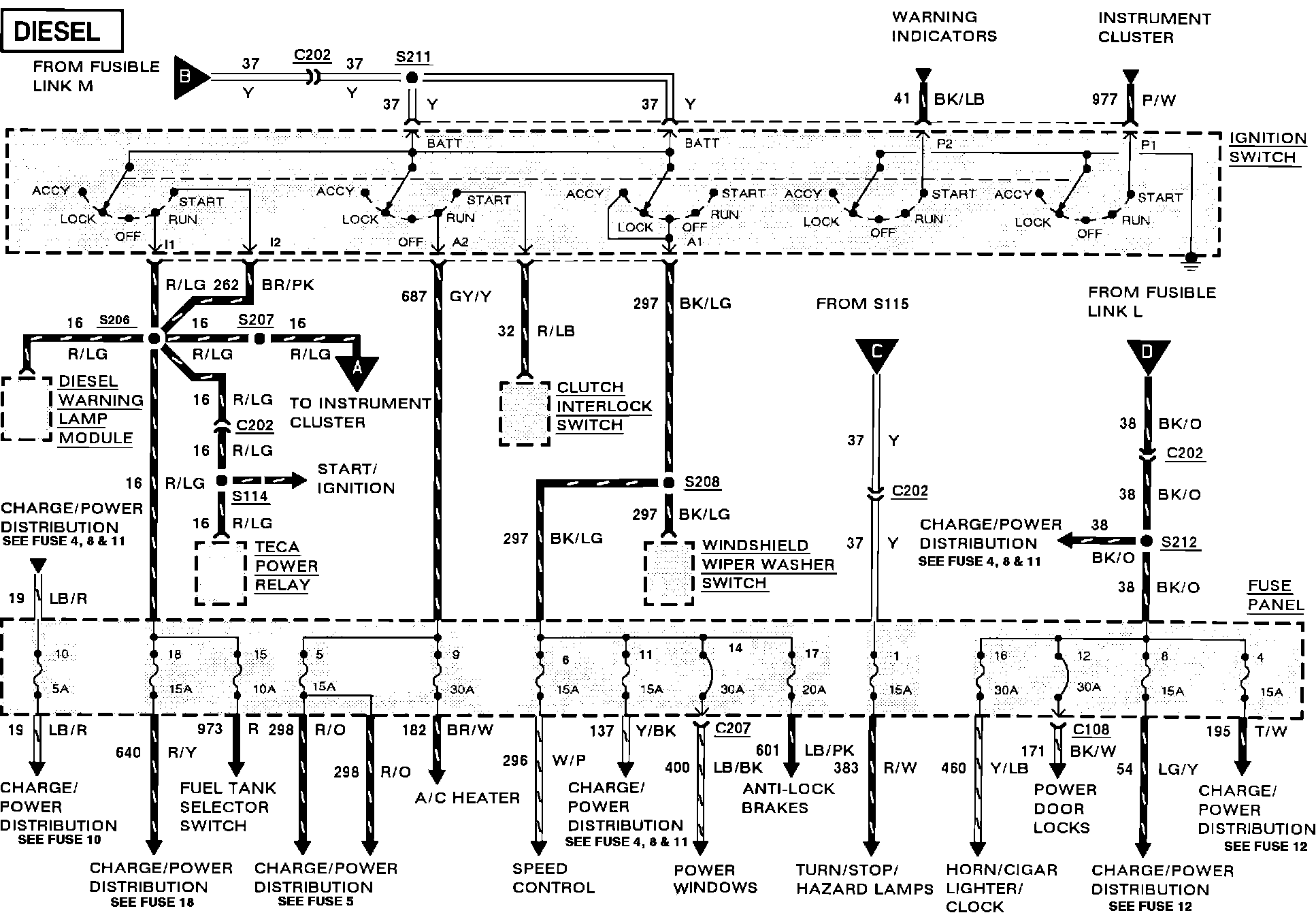

Fuse Panel:
