DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP)
>>

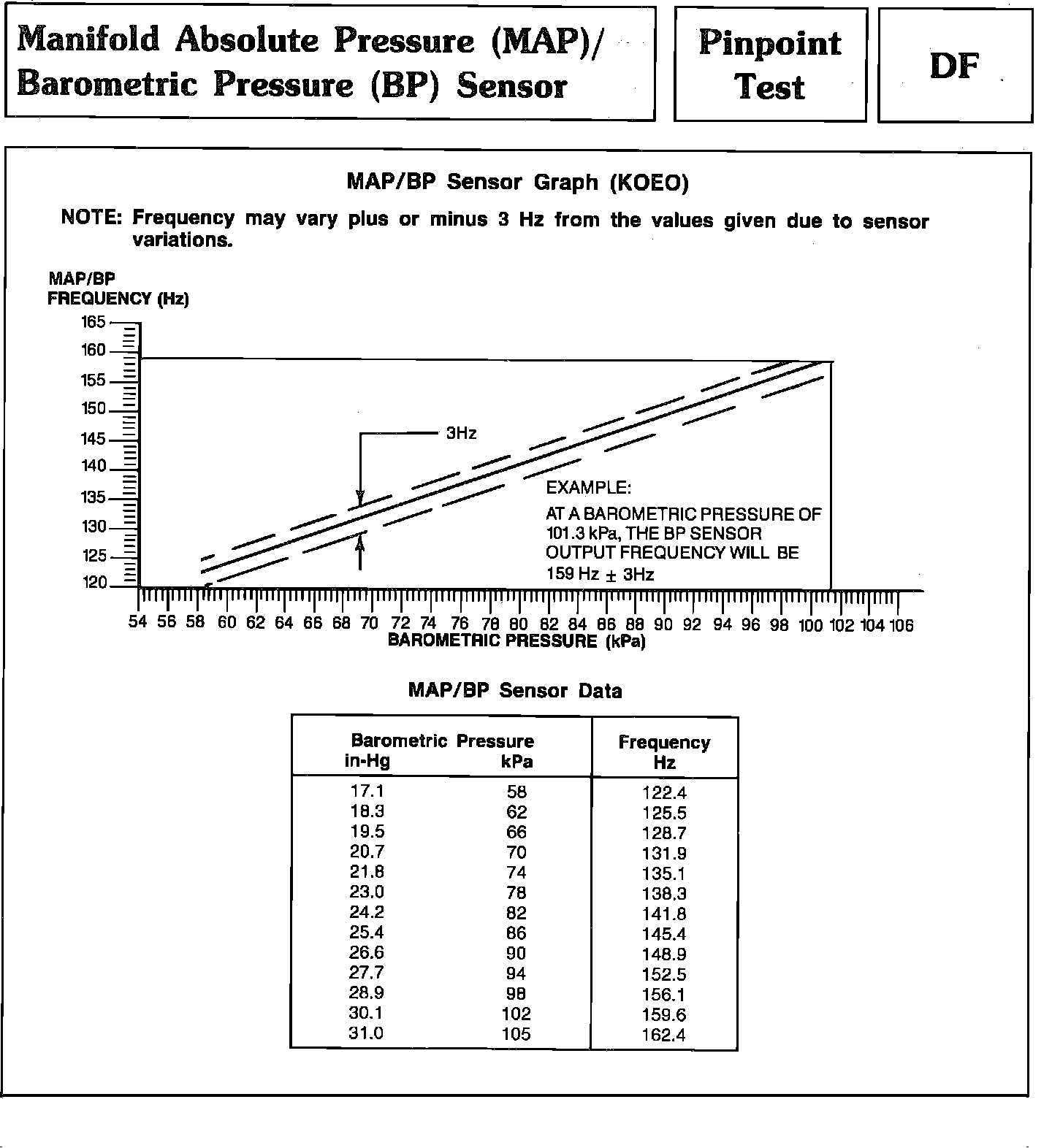

DF - MAP/BP Sensor Data
DF - MAP/BP Sensor Data
Pinpoint Test DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
Pinpoint Test DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
