Engine Controls

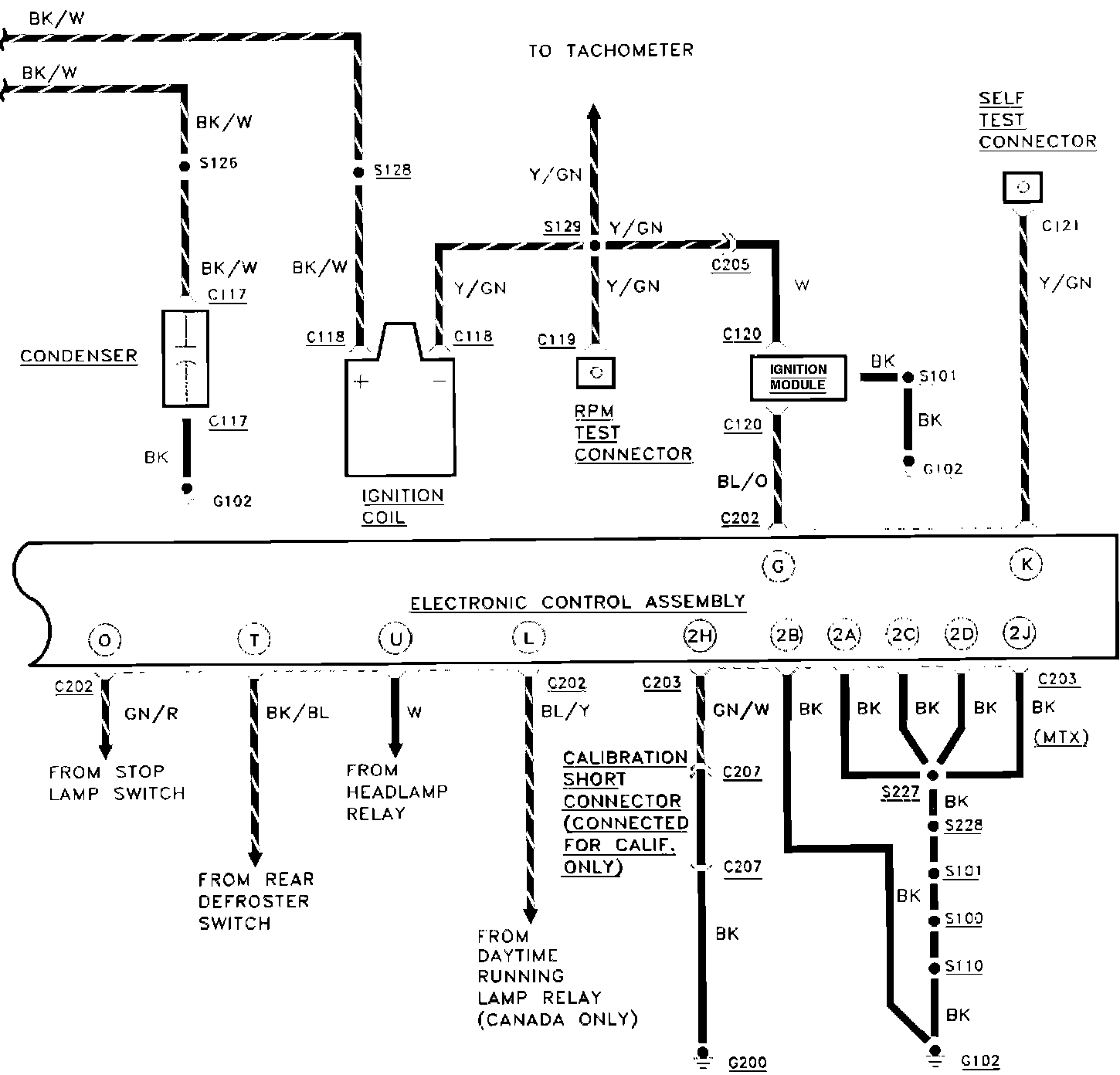

Electronic Control Assembly:

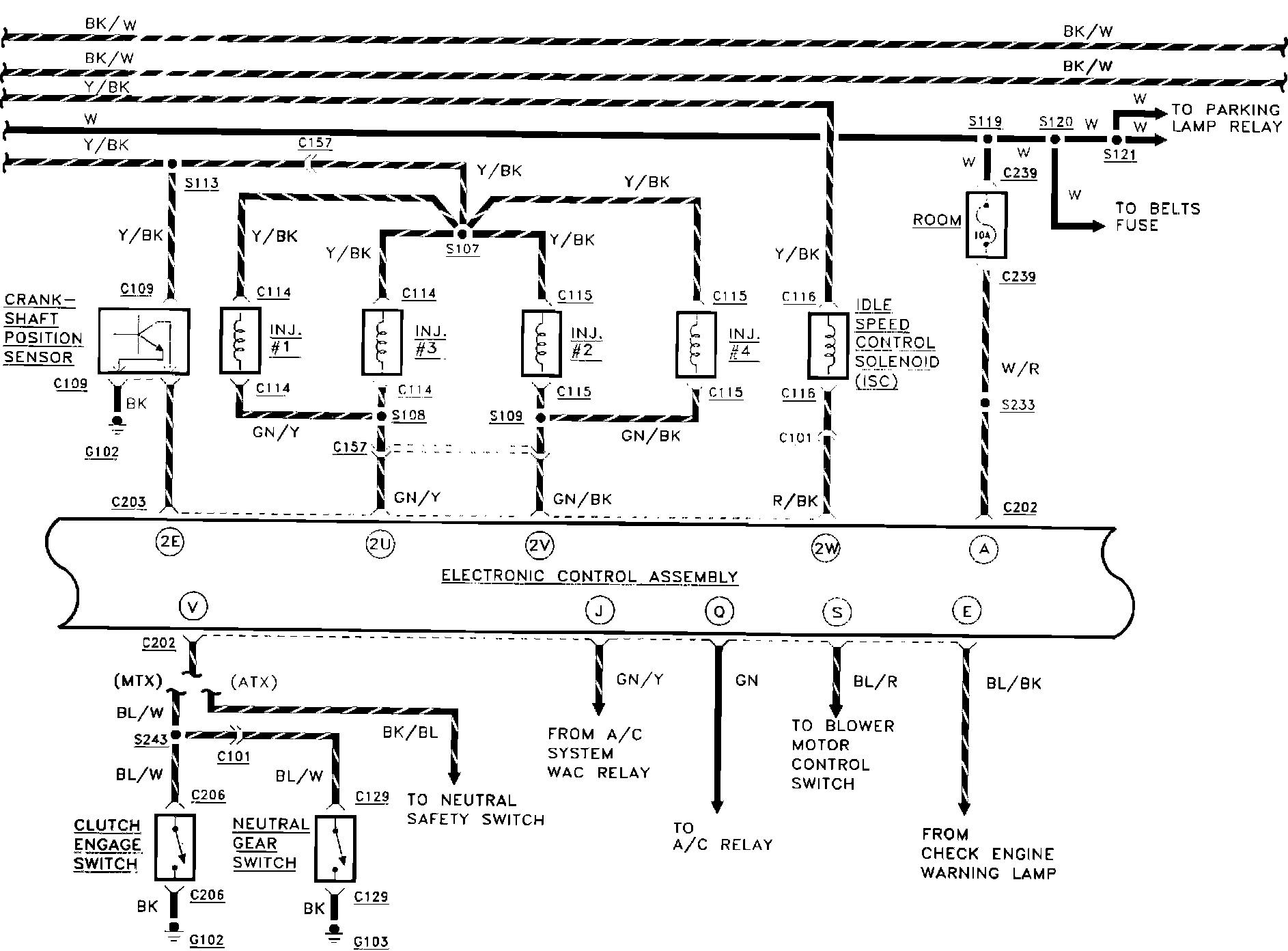

Electronic Control Assembly:

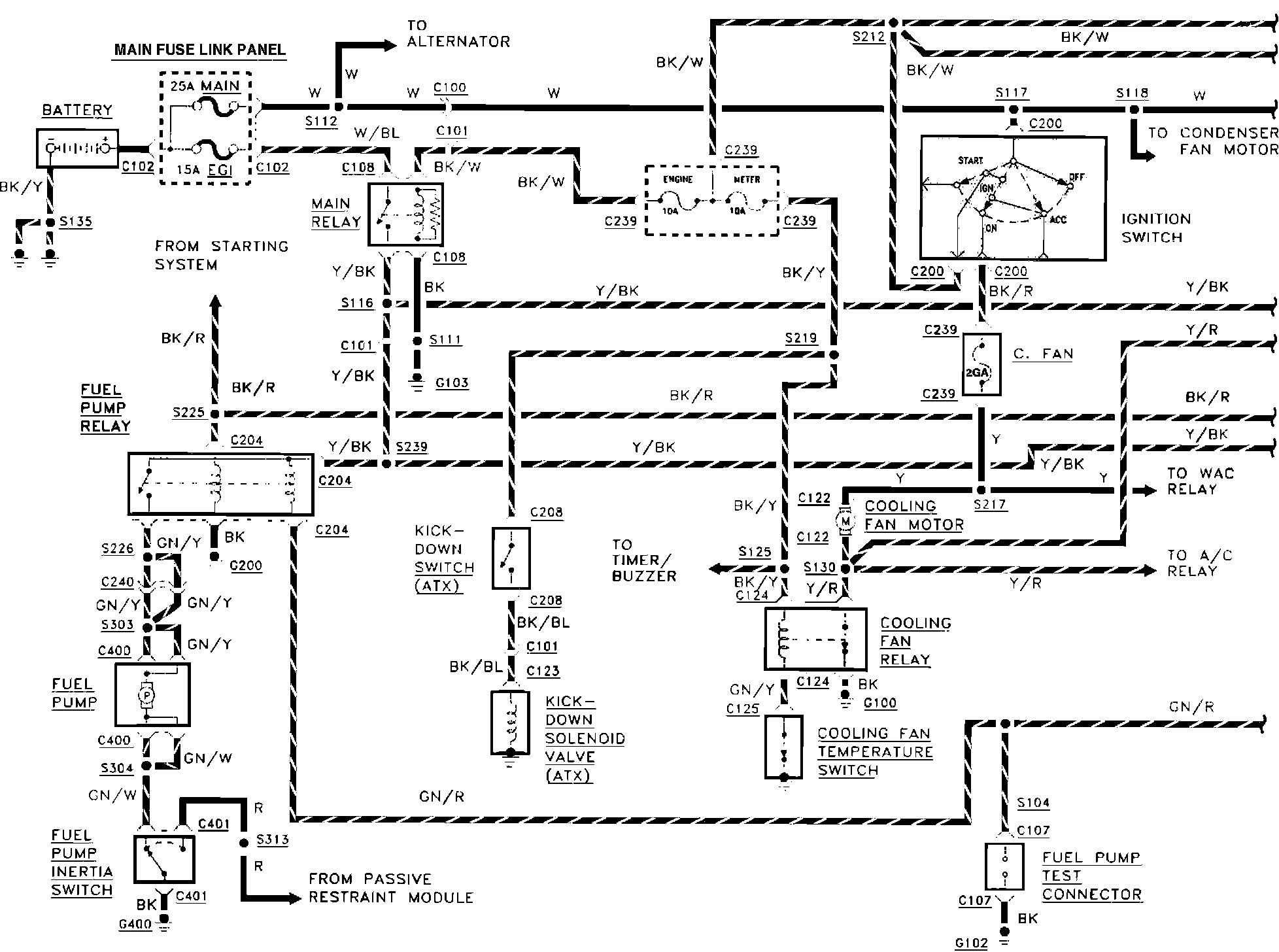

Electronic Control Assembly:






Electronic Control Assembly:
