ILO - Indicator and Lamp Outputs
>>
ILO1 - ILO3
ILO1 - ILO3

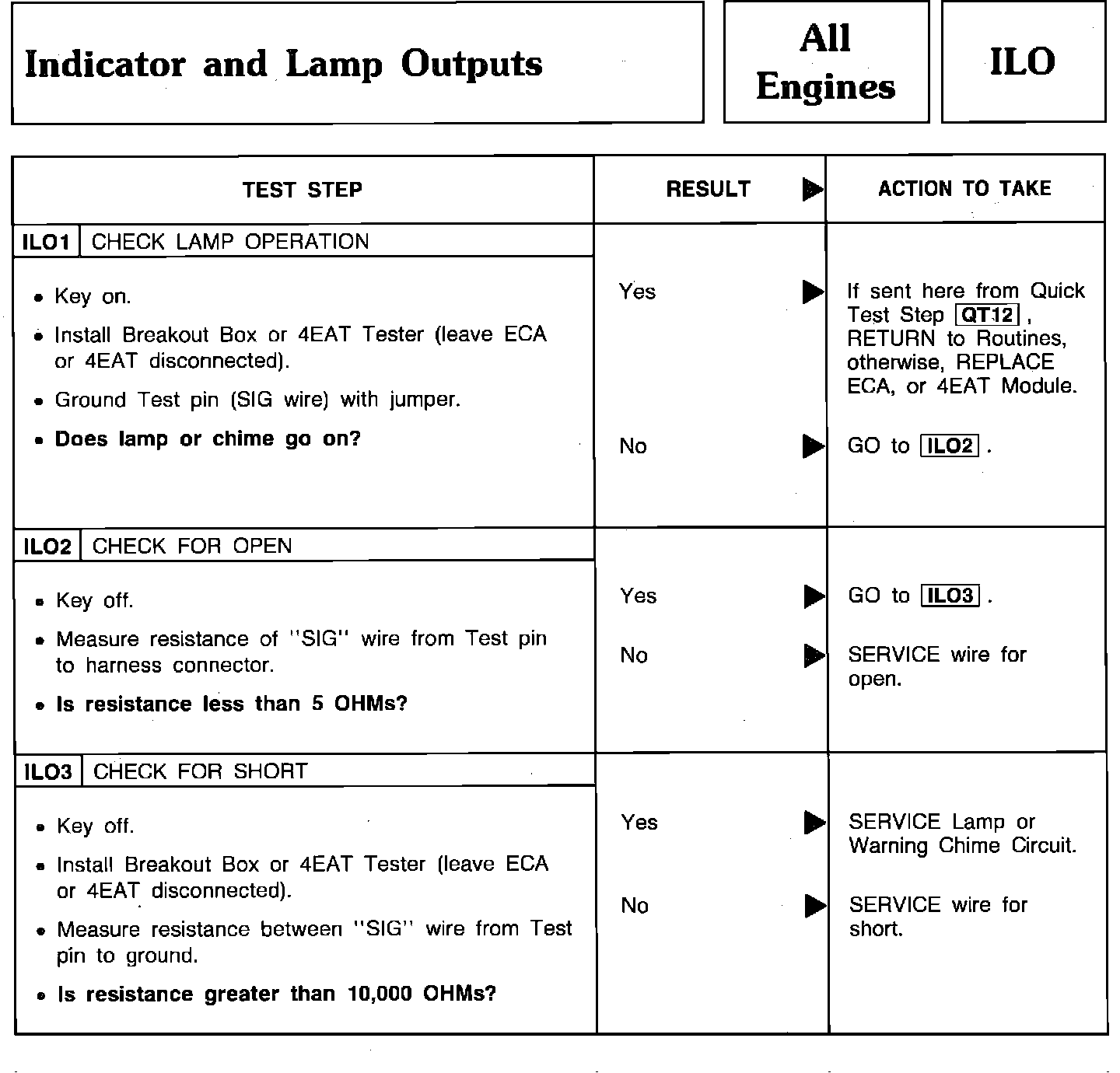

Pinpoint Test ILO1 Thru ILO3 - Indicator and Lamp Outputs:
